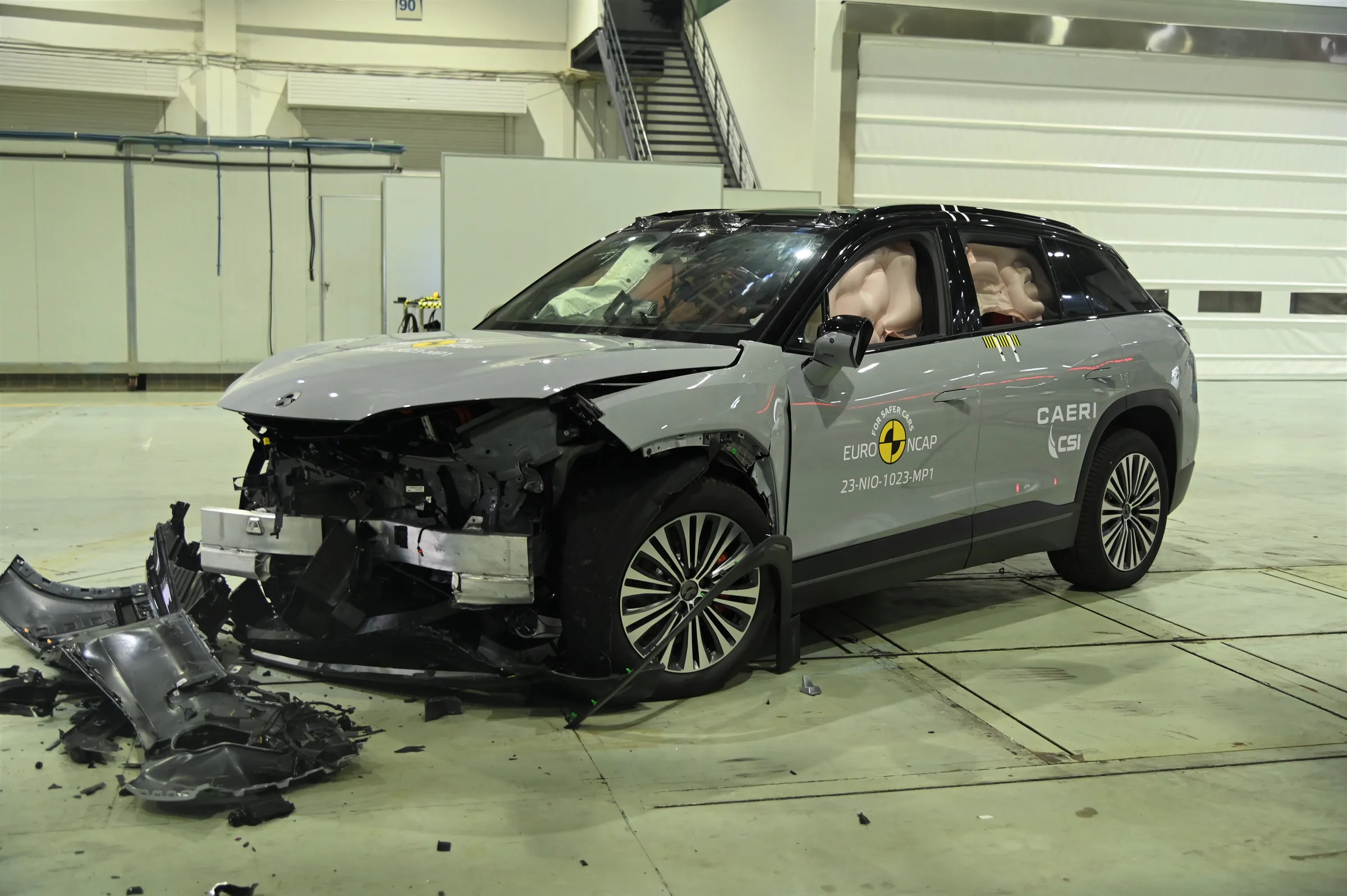

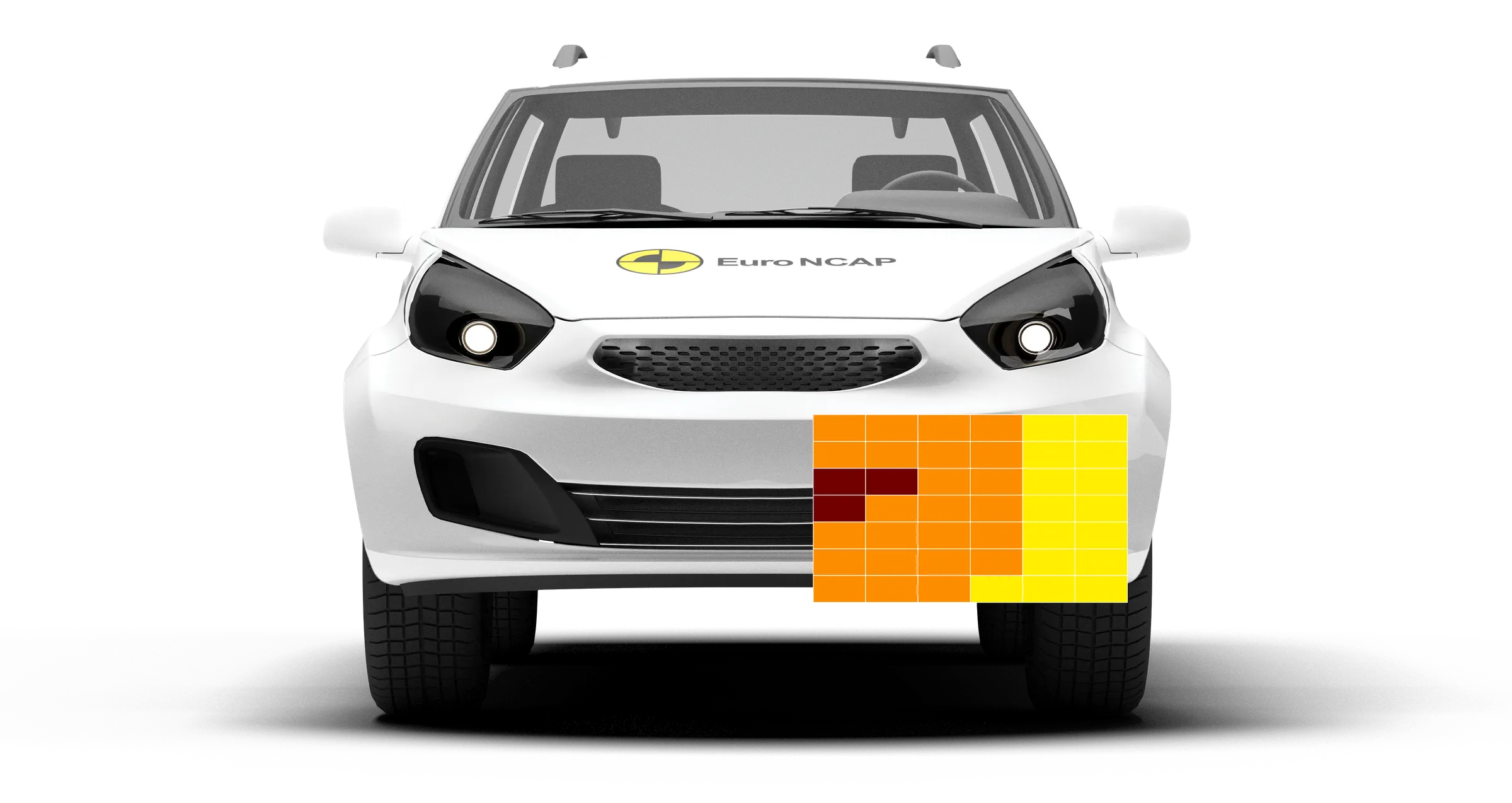

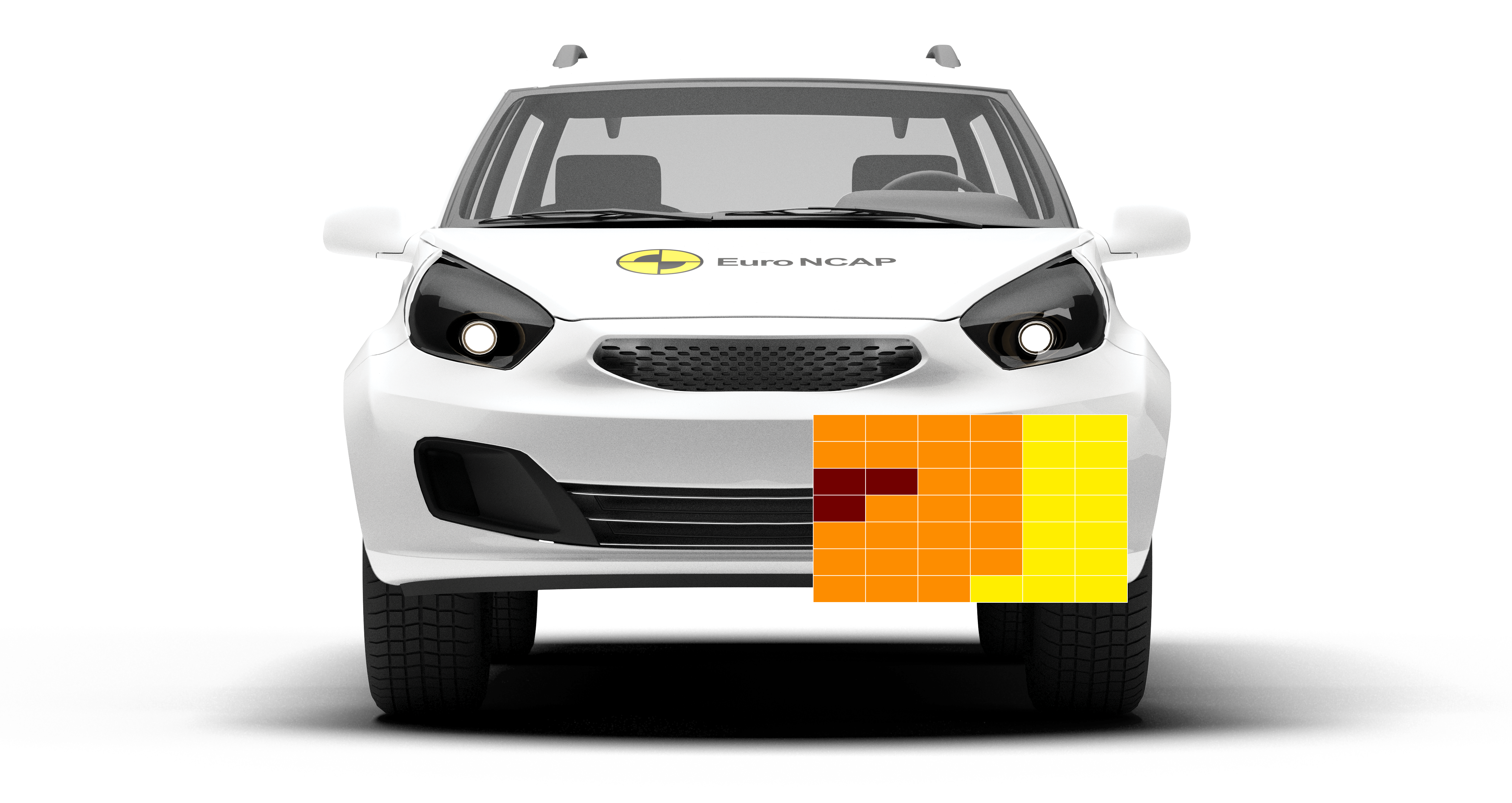

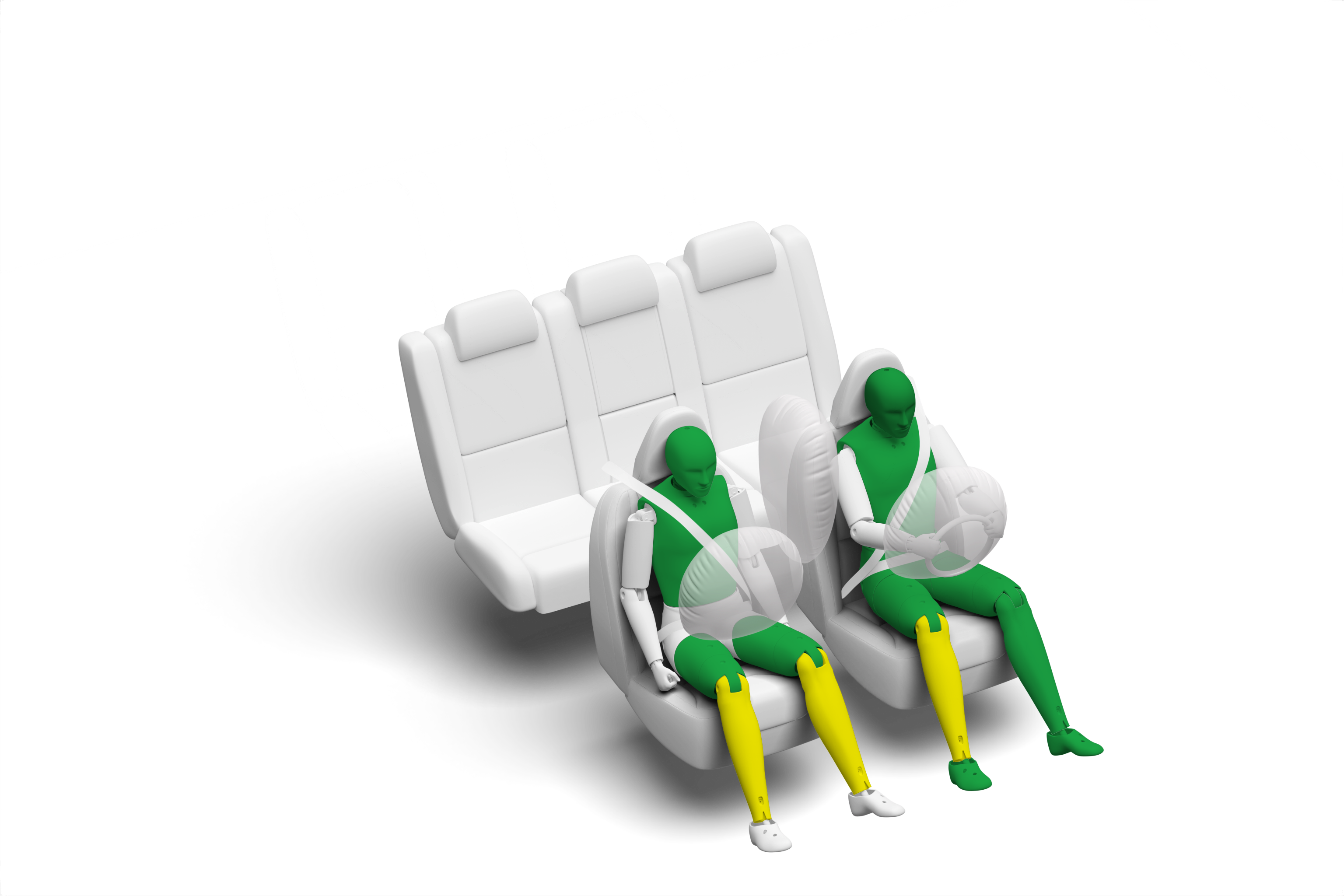

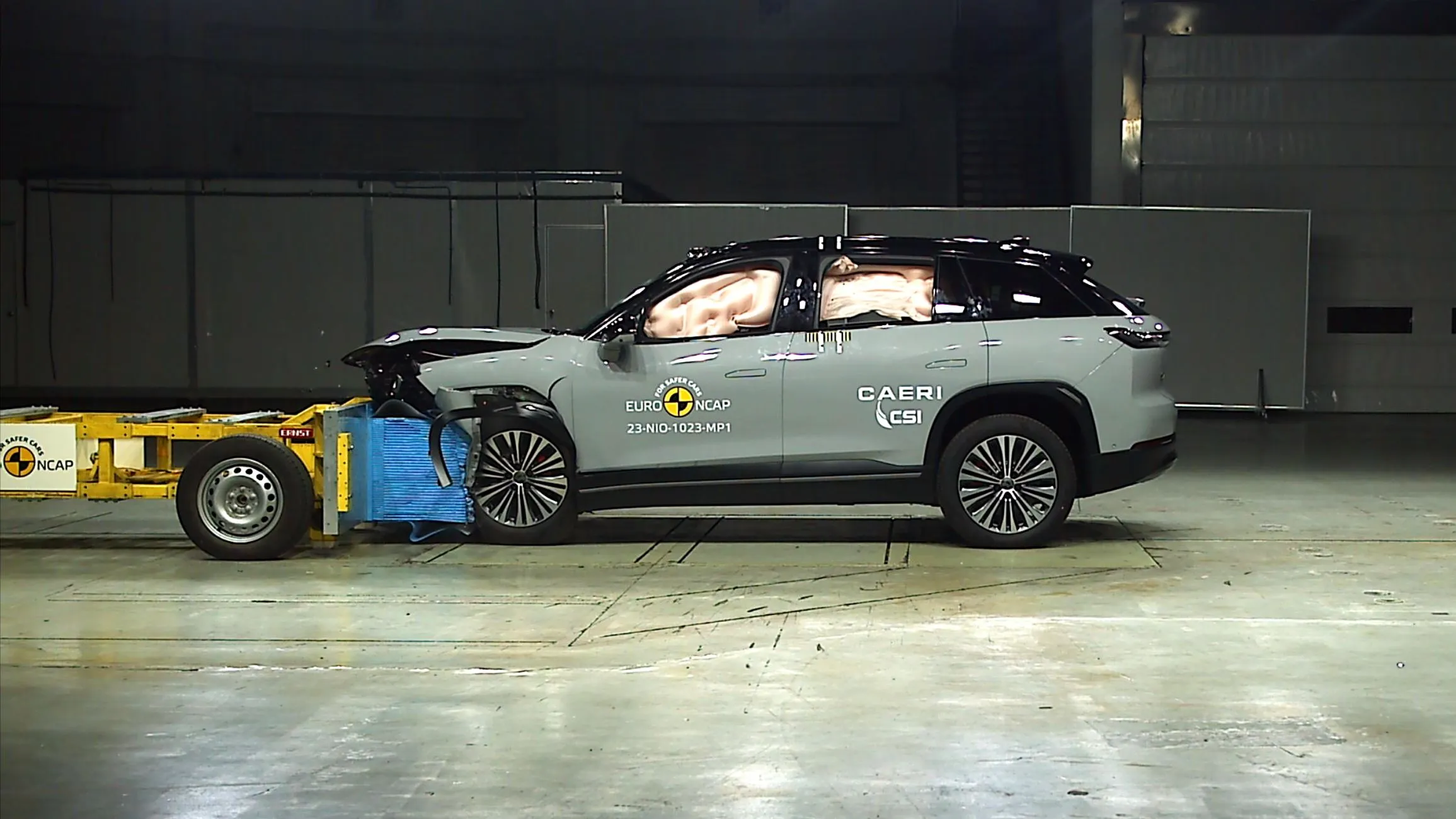

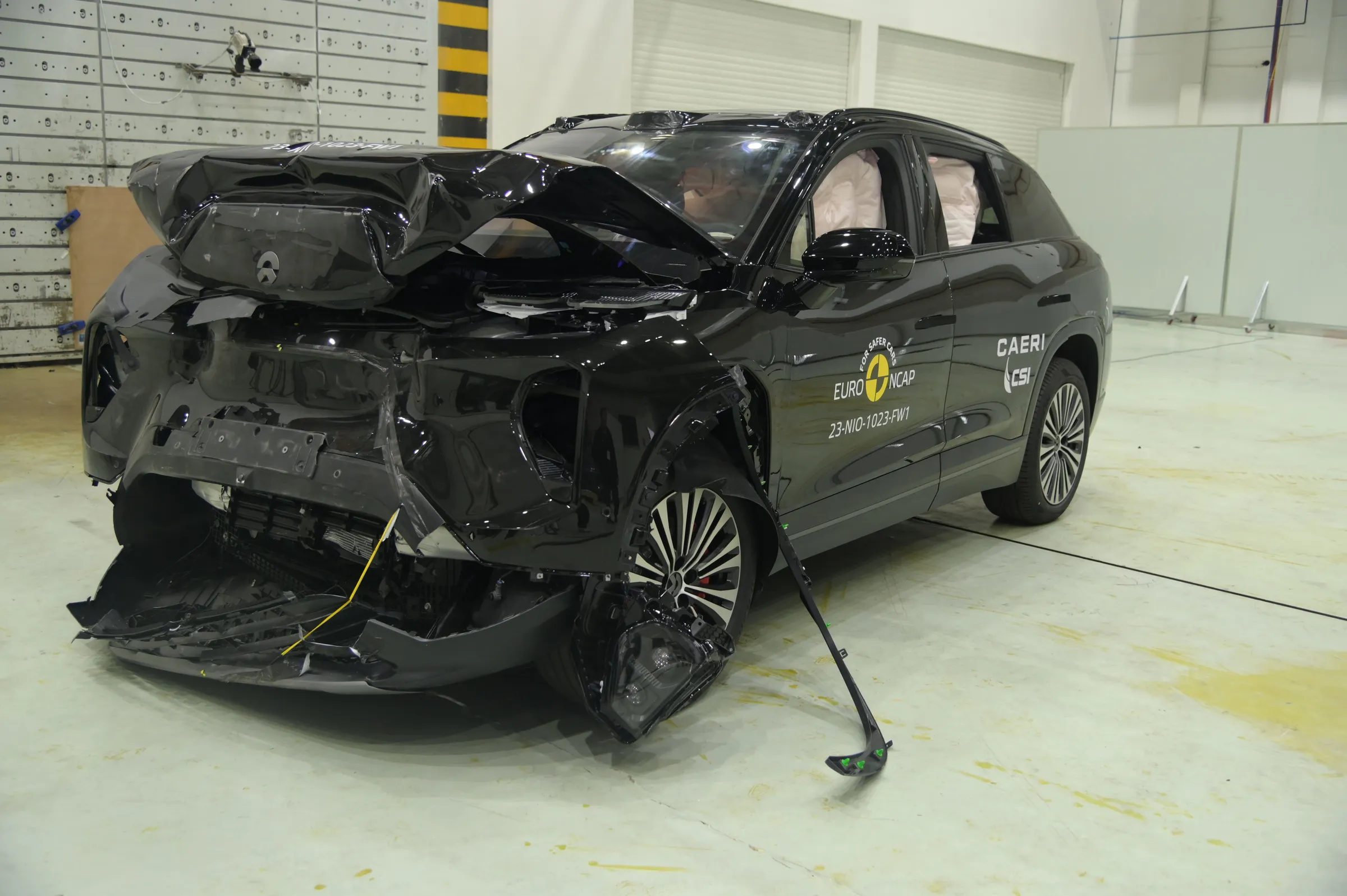

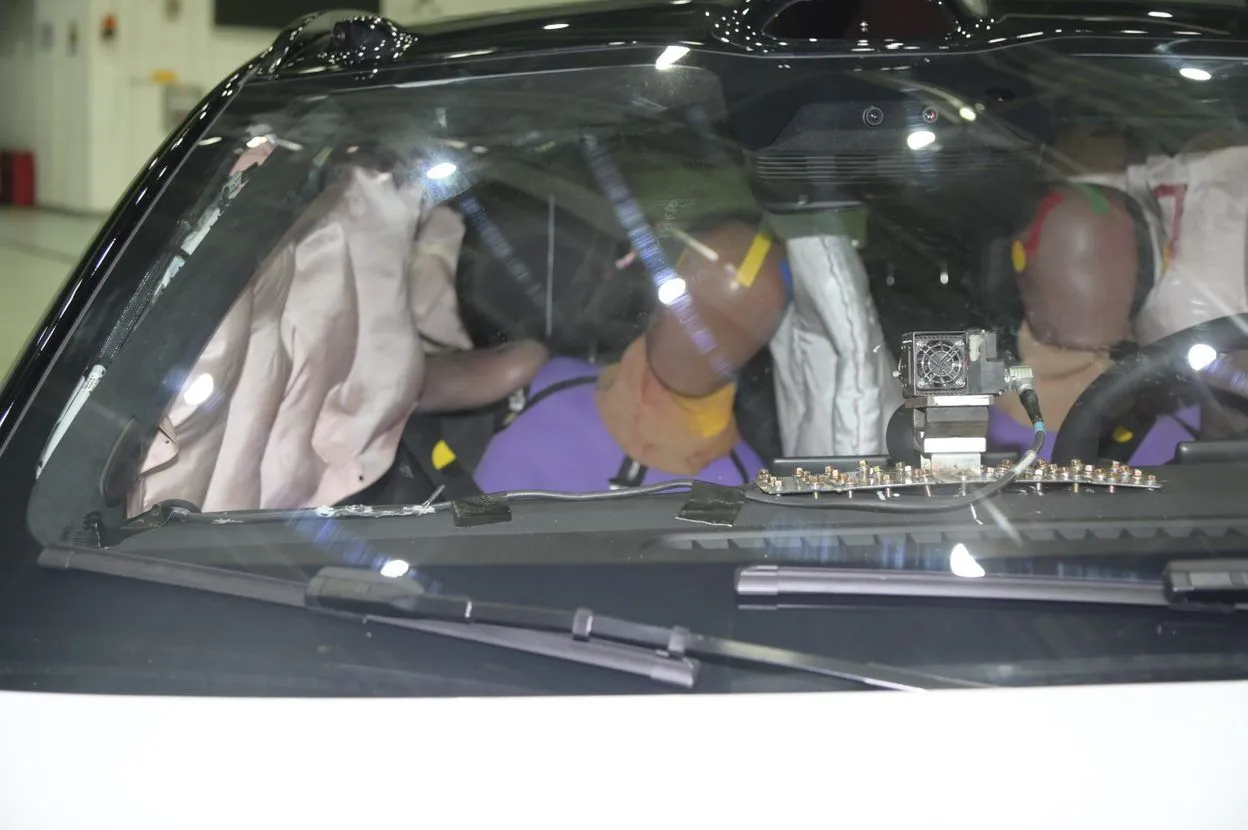

The passenger compartment of the EL7 remained stable in the frontal offset test. Dummy numbers showed good protection of the knees and femurs of both the driver and passenger. NIO showed that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the EL7 would be a somewhat aggressive impact partner in a frontal collision. In the full-width rigid barrier test, good protection was provided to all critical body areas for both the driver and rear passenger, and the car scored maximum points in this part of the assessment. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and the car scored maximum points. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The EL7 has a counter-measure to mitigate against occupant to occupant injuries in such impacts and this performed well in Euro NCAP's test. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats indicated marginal whiplash protection. The EL7 has an advanced eCall system which alerts the emergency services in the event of a crash. The car also has a system which applies the brakes after an impact, to avoid secondary collisions. NIO demonstrated that, if the car entered water, the doors and windows of the EL7 would remain functional long enough to allow the occupants to escape.

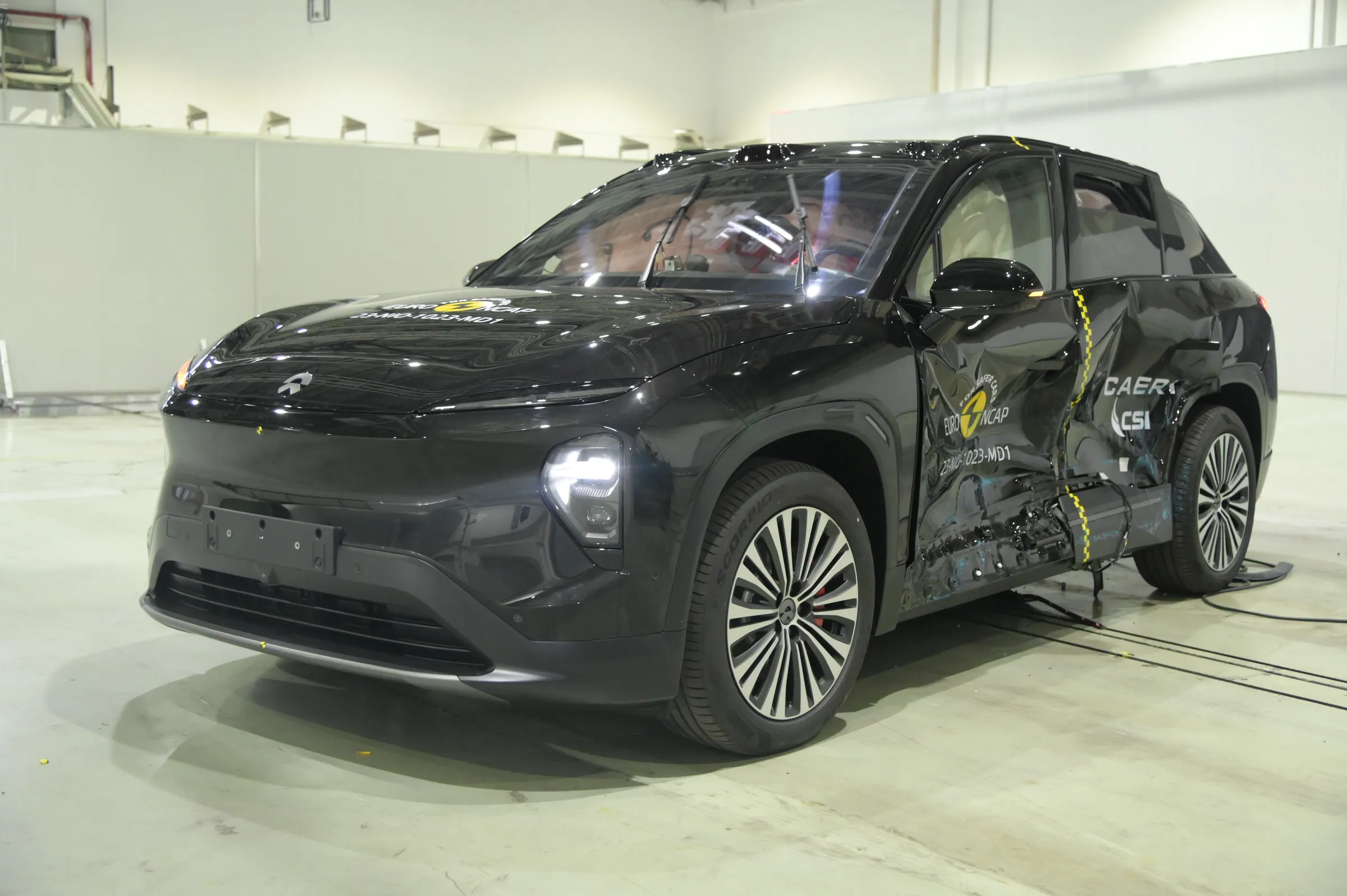

In both the frontal offset and side barrier tests, good protection was provided to all critical body areas for both child dummies, and the NIO EL7 scored maximum points in this part of the assessment. The front passenger airbag can be disabled to allow a rearward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. The EL7 is equipped with a direct 'child presence detection' system, which issues a warning when it detects that a child or infant has been left in the car. However, the system did not meet Euro NCAP's requirements and was not rewarded. All of the child restraint types for which the EL7 is designed could be properly installed and accommodated in the car.

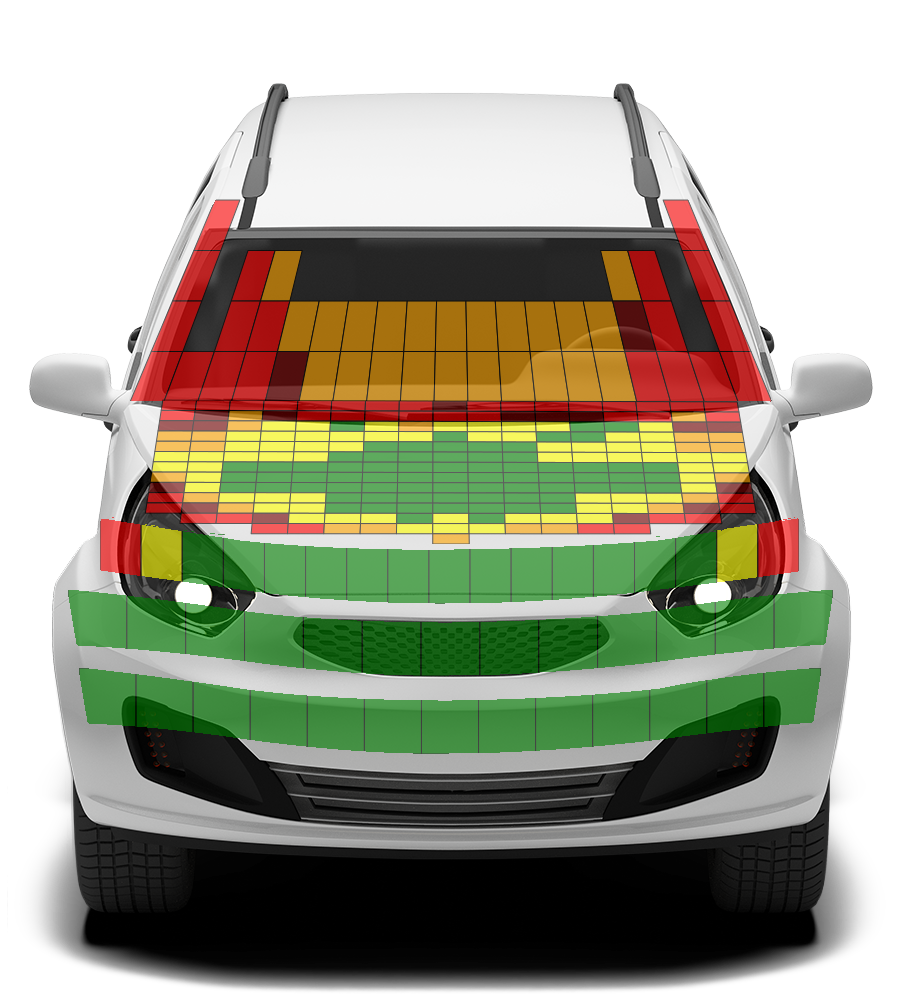

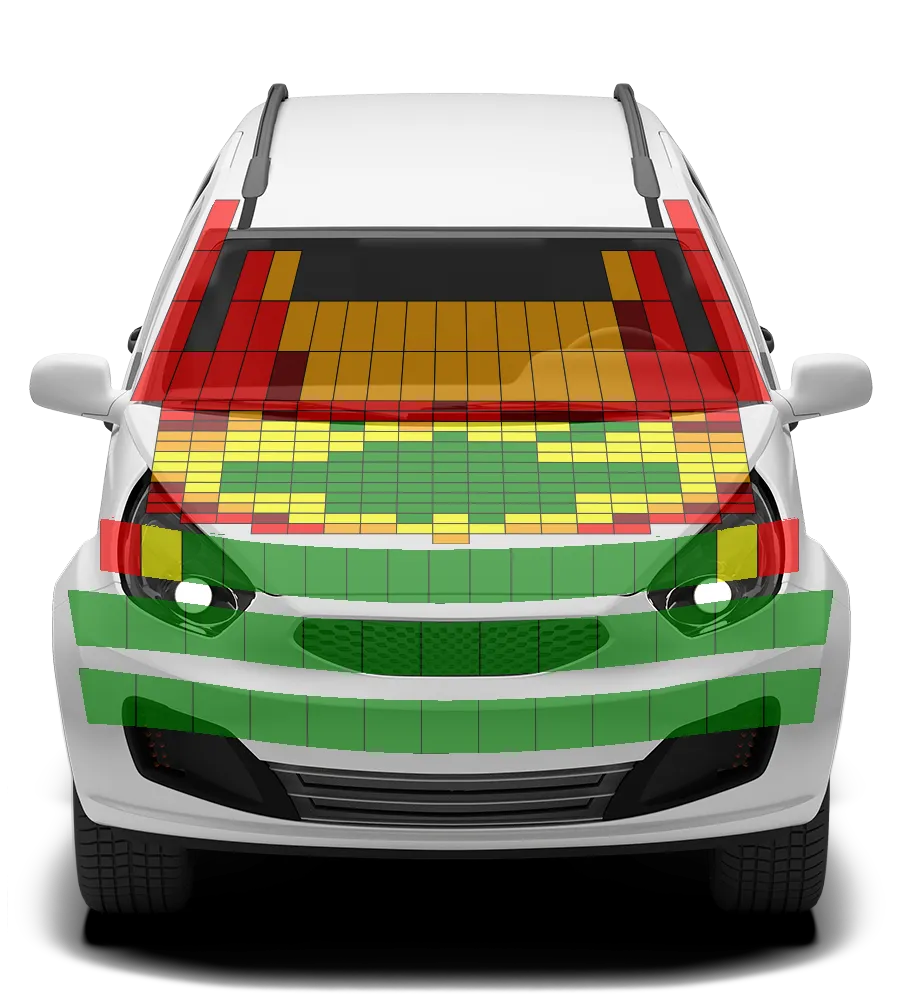

Protection of the head of a struck pedestrian or cyclist was almost mostly good or adequate, with poor results recorded only on the stiff windscreen pillars. Protection of the pelvis, femur and tibia was good at all test locations. The autonomous emergency braking (AEB) system of the NIO can respond to vulnerable road users as well as to other vehicles. The system performed well in tests of its response to pedestrians, with marginal performance only in tests of a child running from behind parked vehicles. Performance was good in all bicyclist scenarios apart from dooring, in which the car prevents or warns against door opening if a cyclist is approaching from behind, where performance was marginal. Good or adequate performance was seen in all tests of the NIO EL7’s response to motorcyclists.

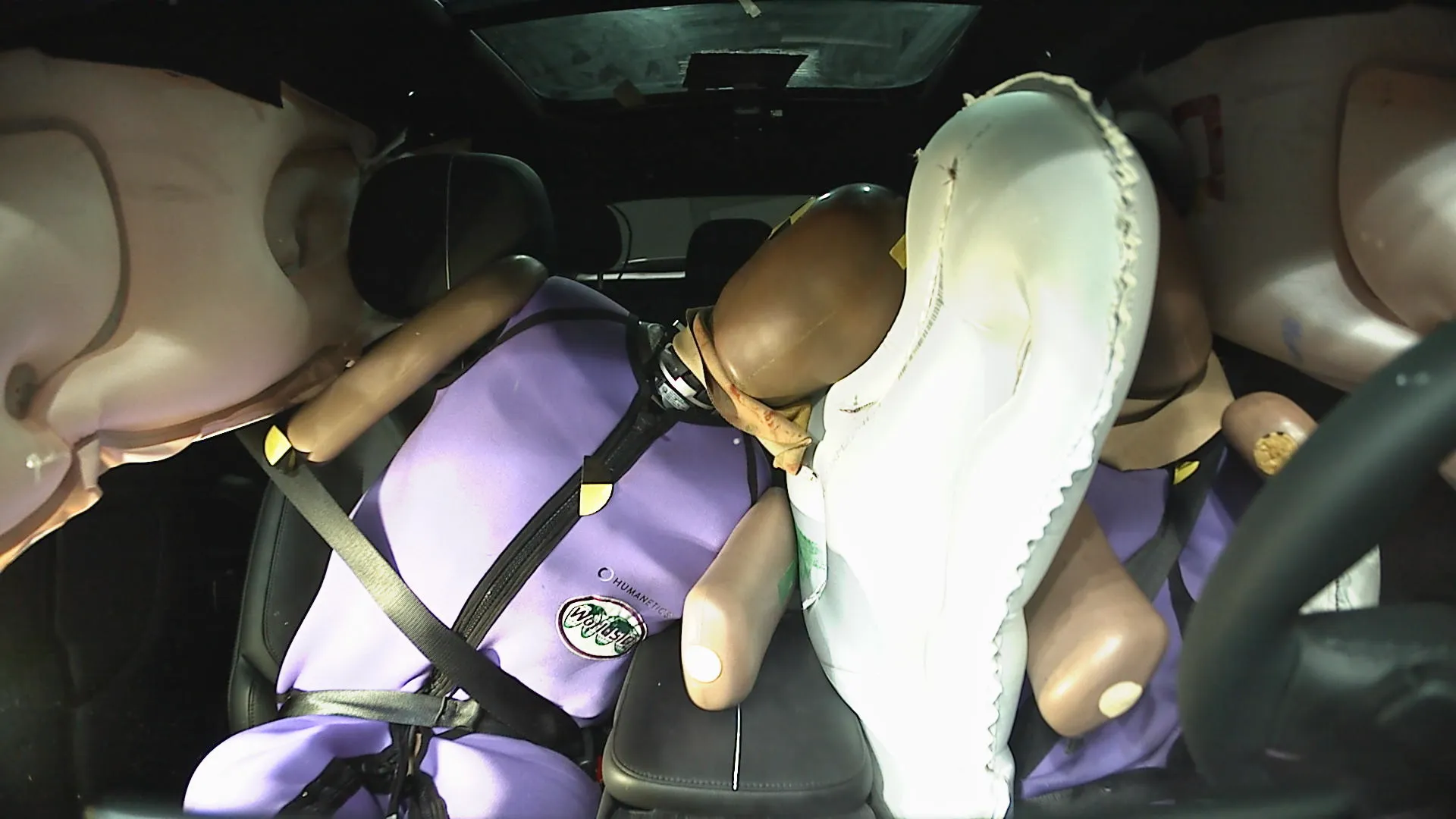

The autonomous emergency braking (AEB) system of the NIO EL7 performed well in tests of its reaction to other vehicles. NIO was not able to verify the car’s performance in Euro NCAP’s ‘head-on’ tests and no points were awarded. A seatbelt reminder system is fitted as standard to the front and rear seats and the car is equipped with a system to detect driver fatigue, such as microsleep (very short periods where consciousness is lost) and distraction, such as phone use. The lane support system gently corrects the vehicle’s path if it is drifting out of lane and also intervenes in some more critical situations. The speed assistance system identifies the local speed limit, and the driver can choose to allow the limiter to be set automatically by the system.
The passenger compartment of the EL7 remained stable in the frontal offset test. Dummy numbers showed good protection of the knees and femurs of both the driver and passenger. NIO showed that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the EL7 would be a somewhat aggressive impact partner in a frontal collision. In the full-width rigid barrier test, good protection was provided to all critical body areas for both the driver and rear passenger, and the car scored maximum points in this part of the assessment. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and the car scored maximum points. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The EL7 has a counter-measure to mitigate against occupant to occupant injuries in such impacts and this performed well in Euro NCAP's test. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats indicated marginal whiplash protection. The EL7 has an advanced eCall system which alerts the emergency services in the event of a crash. The car also has a system which applies the brakes after an impact, to avoid secondary collisions. NIO demonstrated that, if the car entered water, the doors and windows of the EL7 would remain functional long enough to allow the occupants to escape.
In both the frontal offset and side barrier tests, good protection was provided to all critical body areas for both child dummies, and the NIO EL7 scored maximum points in this part of the assessment. The front passenger airbag can be disabled to allow a rearward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. The EL7 is equipped with a direct 'child presence detection' system, which issues a warning when it detects that a child or infant has been left in the car. However, the system did not meet Euro NCAP's requirements and was not rewarded. All of the child restraint types for which the EL7 is designed could be properly installed and accommodated in the car.
Protection of the head of a struck pedestrian or cyclist was almost mostly good or adequate, with poor results recorded only on the stiff windscreen pillars. Protection of the pelvis, femur and tibia was good at all test locations. The autonomous emergency braking (AEB) system of the NIO can respond to vulnerable road users as well as to other vehicles. The system performed well in tests of its response to pedestrians, with marginal performance only in tests of a child running from behind parked vehicles. Performance was good in all bicyclist scenarios apart from dooring, in which the car prevents or warns against door opening if a cyclist is approaching from behind, where performance was marginal. Good or adequate performance was seen in all tests of the NIO EL7’s response to motorcyclists.
The autonomous emergency braking (AEB) system of the NIO EL7 performed well in tests of its reaction to other vehicles. NIO was not able to verify the car’s performance in Euro NCAP’s ‘head-on’ tests and no points were awarded. A seatbelt reminder system is fitted as standard to the front and rear seats and the car is equipped with a system to detect driver fatigue, such as microsleep (very short periods where consciousness is lost) and distraction, such as phone use. The lane support system gently corrects the vehicle’s path if it is drifting out of lane and also intervenes in some more critical situations. The speed assistance system identifies the local speed limit, and the driver can choose to allow the limiter to be set automatically by the system.
The passenger compartment of the EL7 remained stable in the frontal offset test. Dummy numbers showed good protection of the knees and femurs of both the driver and passenger. NIO showed that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the EL7 would be a somewhat aggressive impact partner in a frontal collision. In the full-width rigid barrier test, good protection was provided to all critical body areas for both the driver and rear passenger, and the car scored maximum points in this part of the assessment. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and the car scored maximum points. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The EL7 has a counter-measure to mitigate against occupant to occupant injuries in such impacts and this performed well in Euro NCAP's test. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats indicated marginal whiplash protection. The EL7 has an advanced eCall system which alerts the emergency services in the event of a crash. The car also has a system which applies the brakes after an impact, to avoid secondary collisions. NIO demonstrated that, if the car entered water, the doors and windows of the EL7 would remain functional long enough to allow the occupants to escape.
In both the frontal offset and side barrier tests, good protection was provided to all critical body areas for both child dummies, and the NIO EL7 scored maximum points in this part of the assessment. The front passenger airbag can be disabled to allow a rearward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. The EL7 is equipped with a direct 'child presence detection' system, which issues a warning when it detects that a child or infant has been left in the car. However, the system did not meet Euro NCAP's requirements and was not rewarded. All of the child restraint types for which the EL7 is designed could be properly installed and accommodated in the car.
Protection of the head of a struck pedestrian or cyclist was almost mostly good or adequate, with poor results recorded only on the stiff windscreen pillars. Protection of the pelvis, femur and tibia was good at all test locations. The autonomous emergency braking (AEB) system of the NIO can respond to vulnerable road users as well as to other vehicles. The system performed well in tests of its response to pedestrians, with marginal performance only in tests of a child running from behind parked vehicles. Performance was good in all bicyclist scenarios apart from dooring, in which the car prevents or warns against door opening if a cyclist is approaching from behind, where performance was marginal. Good or adequate performance was seen in all tests of the NIO EL7’s response to motorcyclists.
The autonomous emergency braking (AEB) system of the NIO EL7 performed well in tests of its reaction to other vehicles. NIO was not able to verify the car’s performance in Euro NCAP’s ‘head-on’ tests and no points were awarded. A seatbelt reminder system is fitted as standard to the front and rear seats and the car is equipped with a system to detect driver fatigue, such as microsleep (very short periods where consciousness is lost) and distraction, such as phone use. The lane support system gently corrects the vehicle’s path if it is drifting out of lane and also intervenes in some more critical situations. The speed assistance system identifies the local speed limit, and the driver can choose to allow the limiter to be set automatically by the system.

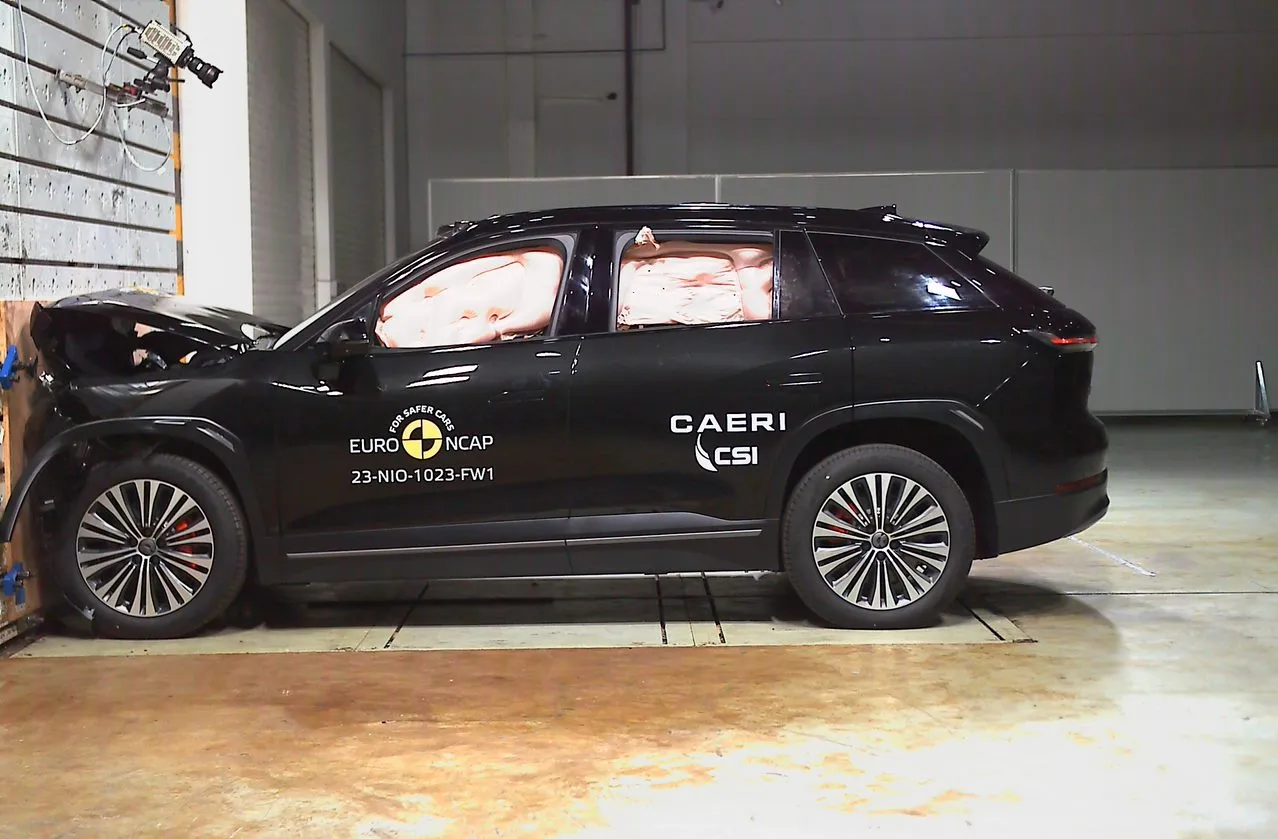

| Mobile Progressive Deformable Barrier | Full Width Rigid Barrier | |
|---|---|---|
  |  | |

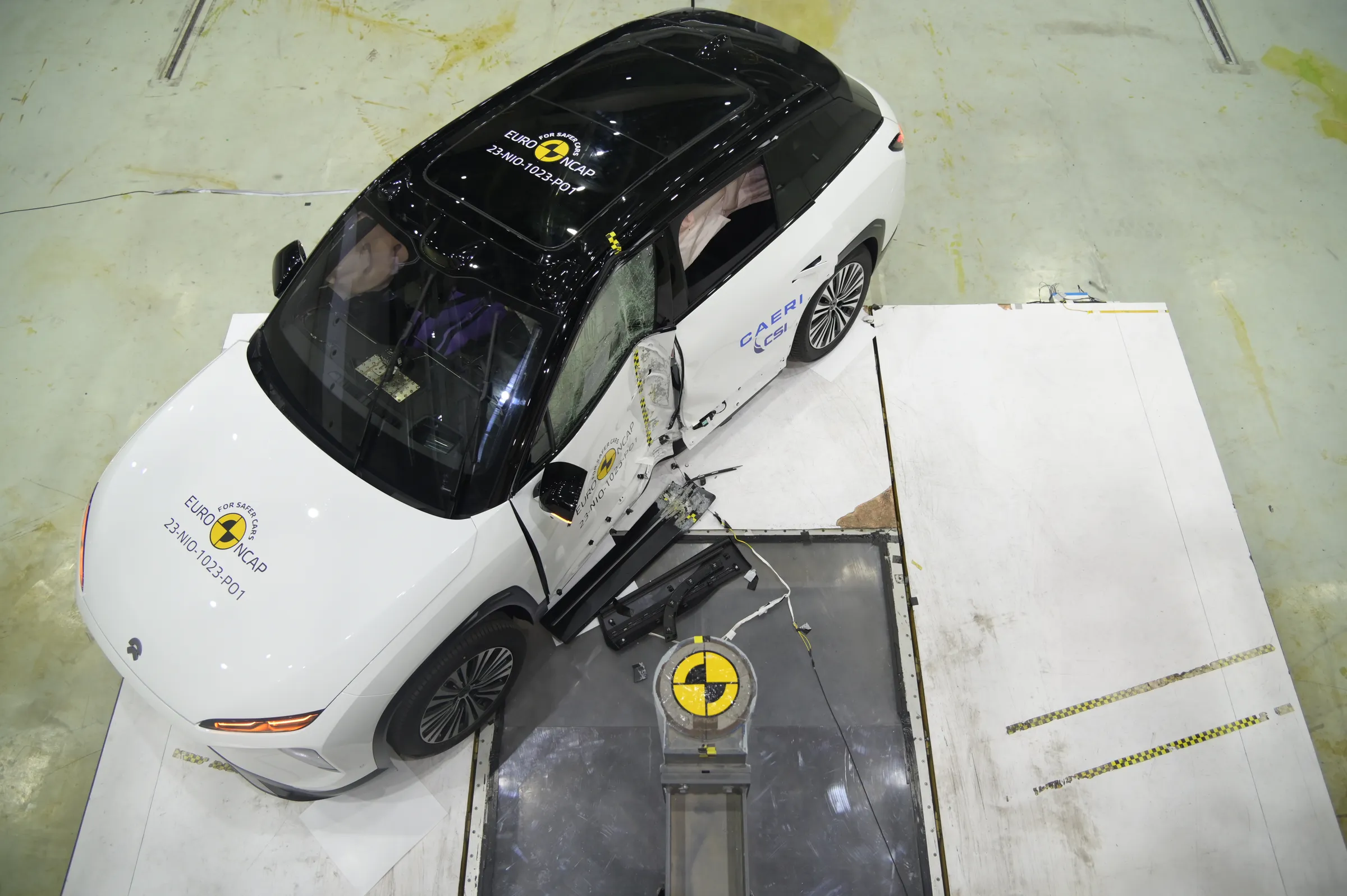

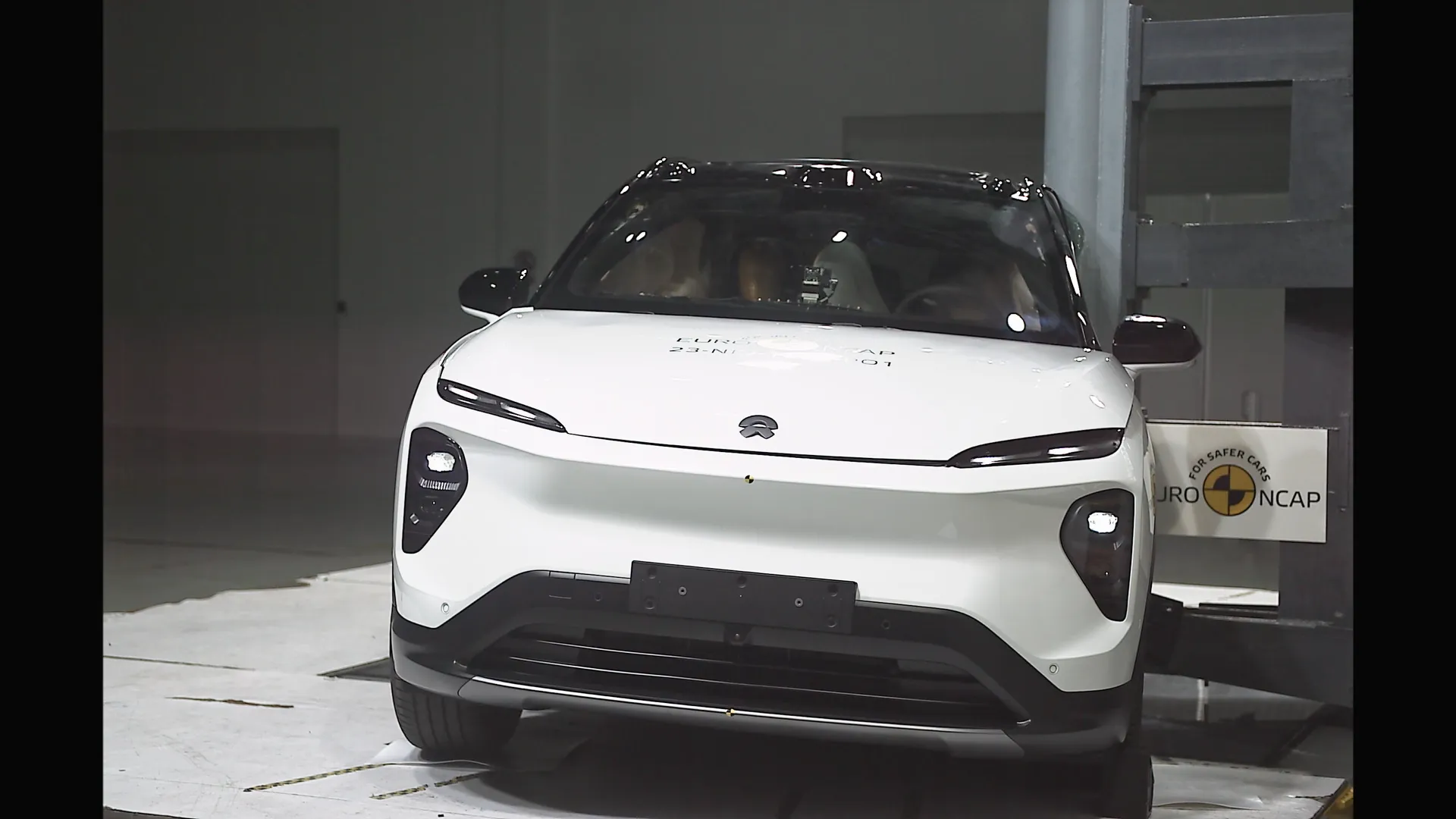

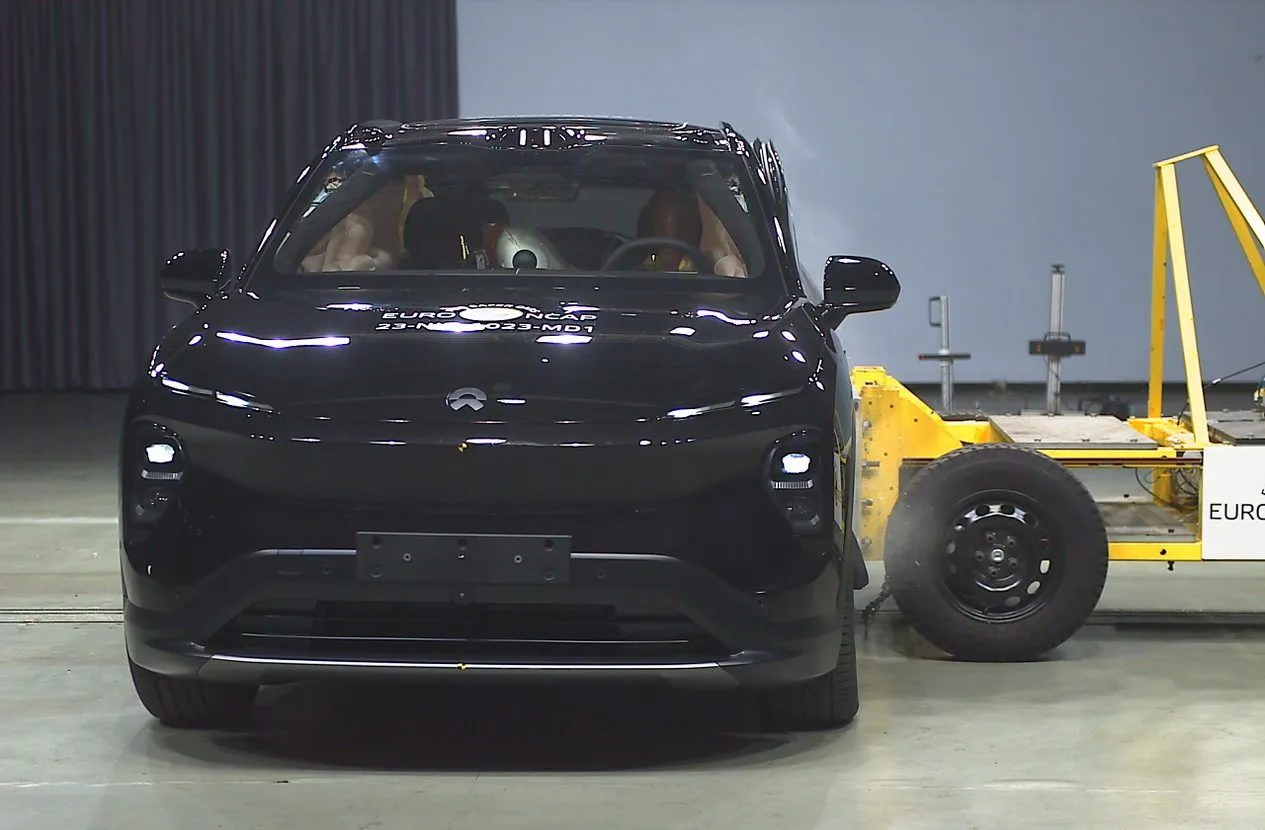

| Side Mobile Barrier | Side Pole |
|---|---|
 |  |
| Far-Side Excursion | Occupant Interaction |
 |  |
| Rear Seat | Front Seat |
|---|---|
 |  |
Frontal Impact - 16 Pts | Lateral Impact - 8 Pts |
|---|---|
 Restraint for 6 year old child: $.assessmentData.carSafety.safetyPerformance.childOccupant.COPDynamic.childRestraints["6YearOld"].name Restraint for 10 year old child: $.assessmentData.carSafety.safetyPerformance.childOccupant.COPDynamic.childRestraints["10YearOld"].name |  Restraint for 6 year old child: $.assessmentData.carSafety.safetyPerformance.childOccupant.COPDynamic.childRestraints["6YearOld"].name Restraint for 10 year old child: $.assessmentData.carSafety.safetyPerformance.childOccupant.COPDynamic.childRestraints["10YearOld"].name |
Equipment | Front Passenger | Row 2 Outboard | Row 2 Center | 3rd row outboard |
Isofix |  |  | |  |
i-Size | | | | |
Top tether | | | | |
Integrated CRS | | | | |
Child Presence Detection | | | | |
| i-Size | Isofix |
|---|---|
 |  |
| Seatbelt Attached | Legend |
 |      |
|
System Name | AEB | |
Type | Auto-Brake with Forward Collision Warning | |
Operational From | 4 km/h | |
Scenario | Day time | Night time |
Car reversing into adult or child | | |
Adult crossing a road into which a car is turning | | |
Adult crossing the road | | |
Child running from behind parked vehicles | | |
Adult along the roadside | | |
Scenario | Day time |
Approaching cyclist crossing from behind parked vehicles | |
Turning across path of an oncoming cyclist | |
Approaching a crossing cyclist | |
Approaching a cyclist along the roadside | |
Scenario | Day time |
Dooring a passing cyclist | Sudden opening prevention |
Scenario | Autobrake function only | Driver reacts to warning |
Approaching a stationary motorcyclist | | |
Approaching a braking motorcyclist | | |
Turn across the path of an oncoming motorcyclist | | |
Scenario | Day time |
Changing lane across the path of an oncoming motorcyclist | |
Changing lane across the path of an overtaking motorcyclist | |
System Name | Speed Limiter |
Speed Limit Info Function | Camera & Map, subsigns supported |
Speed Control Function | Intelligent ACC (accurate to 5km/h) |
Warning | Driver Seat | Front Passenger(s) | Rear Passenger(s) |
Visual | | | |
Audible | | | |
Occupant Detection | | | |
System Name | Advanced Driver Monitoring System (ADMS) |
Type | Direct eye monitoring |
Operational From | 10km/h |
Fatigue | Drowsiness, Microsleep and Sleep |
Distraction | Long & Short Distraction and Phone Use |
System Name | LSS |
System Type | LKA and ELK |
Min Speed (Operational From) | 50km/h |
Performance | |
Emergency Lane Keeping | |
Lane Keep Assist | |
Human Machine Interface | |
System Name | AEB |
Type | Autonomous emergency braking and forward collision warning |
Operational From | 4 km/h |
Sensor Used | Camera, Radar and LIDAR |
Scenario | Autobrake function only | Driver reacts to warning |
Approaching a car crossing a junction | | |
Approaching a car head-on | | |
Turning across the path of an oncoming car | | |
Approaching a stationary car | | |
Approaching a slower moving car | | |
Approaching a braking car | | |
Driver | Passenger | Rear | |
Front Airbag | | |  |
Belt Pretensioner | | | |
Belt Loadlimiter | | | |
Knee Airbag | | | |
Driver | Passenger | Rear | |
Front Airbag | | | |
Belt Pretensioner | | | |
Belt Loadlimiter | | | |
Knee Airbag | | | |
Driver | Passenger | Rear | |
Side Head Airbag | | | |
Side Chest Airbag | | | |
Side Pelvis Airbag | | | |
Centre Airbag | | | |
Passenger | Rear | |
Isofix | | |
i-Size | | |
Integrated Child Seat | | |
Airbag Cut-Off Switch | | |
Child Presence Detection | | |
Driver | Passenger | Rear | |
Seatbelt Reminder | | | |
Active bonnet | |
AEB vulnerable road users | |
AEB pedestrian - reverse | |
Cyclist dooring prevention | |
AEB motorcyclist | |
AEB car-to-car | |
Speed assistance | |
Lane assist system | |
Fatigue detection | |
Distraction detection | |
Note: other equipment may be available on the vehicle but was not considered in the test year
Body Type | Variant Description | Drivetrain | Rating Applies LHD | Rating Applies RHD |
|---|---|---|---|---|
5 door SUV | 75 kWh electric - NIO EL7* | 4x4 | | |
5 door SUV | 100 kWh electric - NIO EL7 | 4x4 | | |
Body Type | Variant Description | Drivetrain | Rating Applies LHD | Rating Applies RHD |
|---|---|---|---|---|
5 door SUV | 75 kWh electric - NIO EL7* | 4x4 | | |
5 door SUV | 100 kWh electric - NIO EL7 | 4x4 | | |
Date | Event | Outcome | |
|---|---|---|---|
2023-07-12 | Rating Published | |
