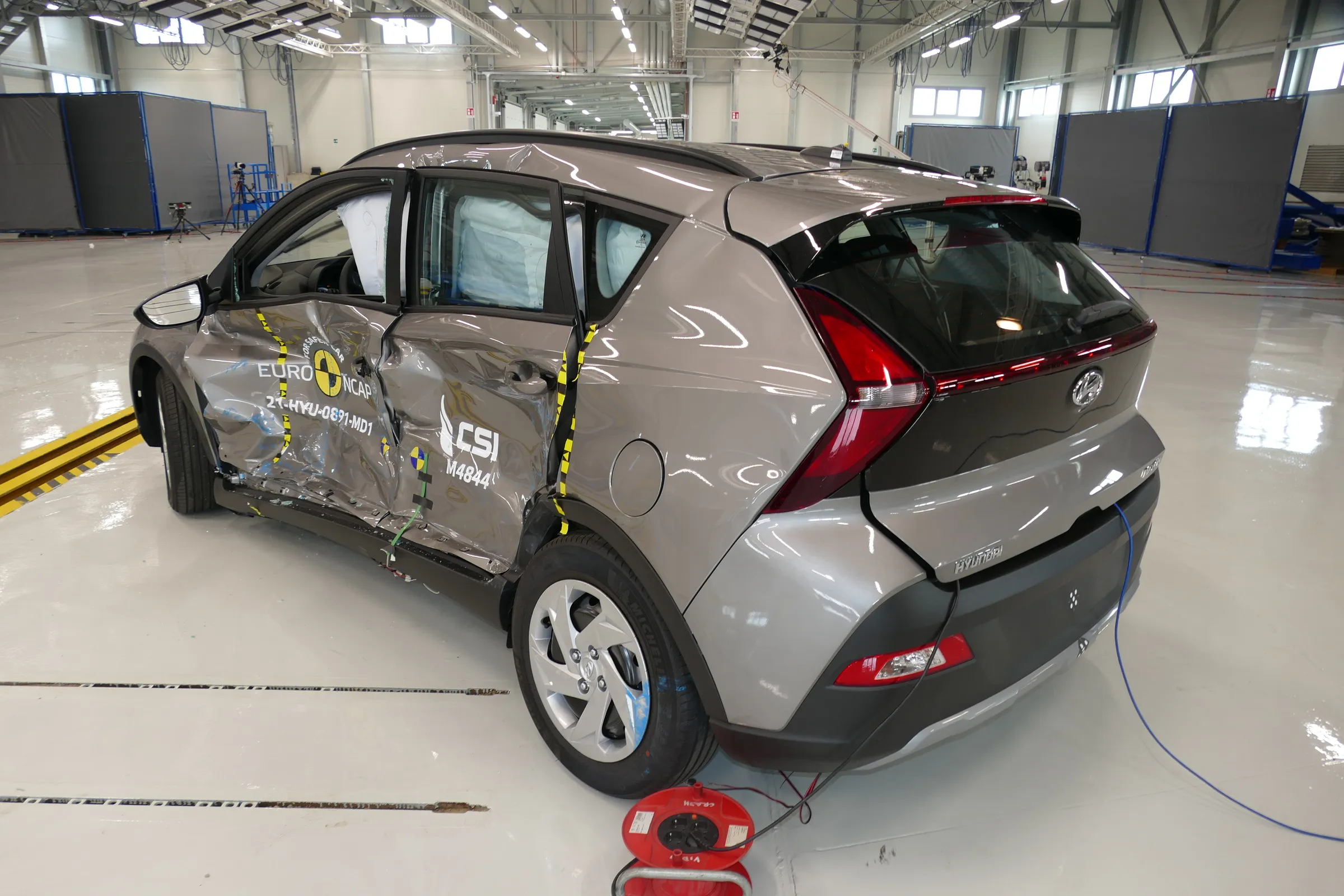

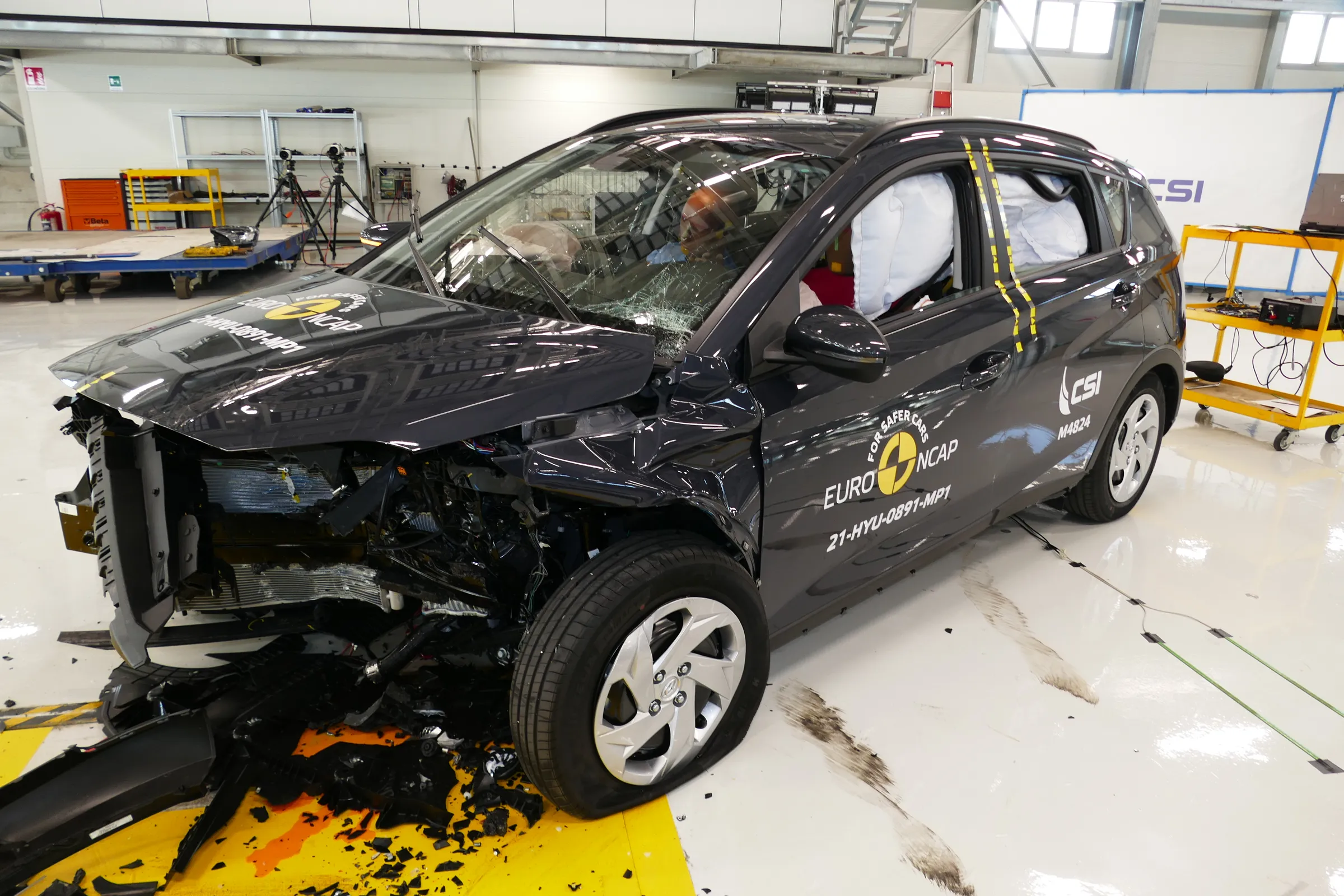

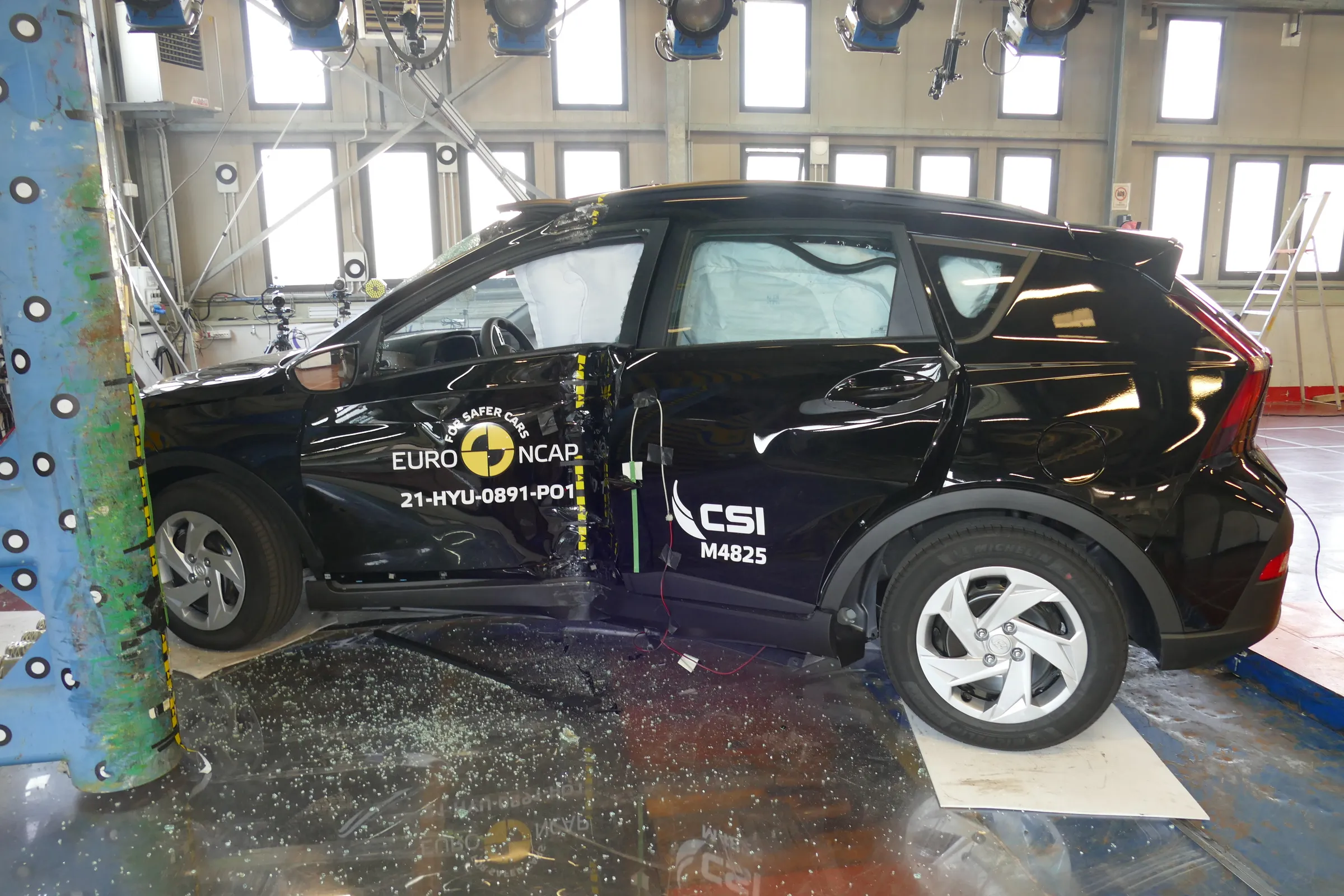

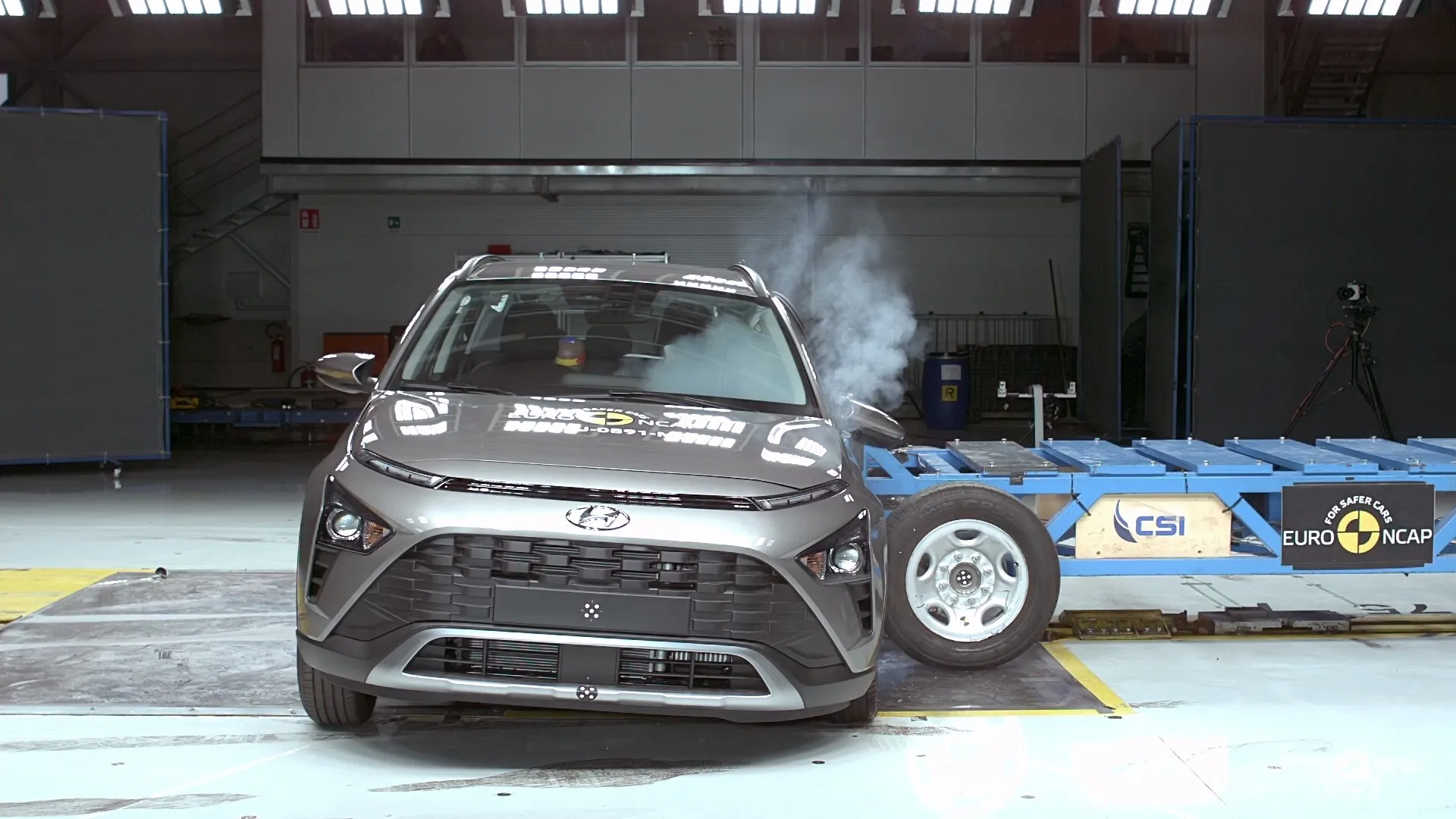

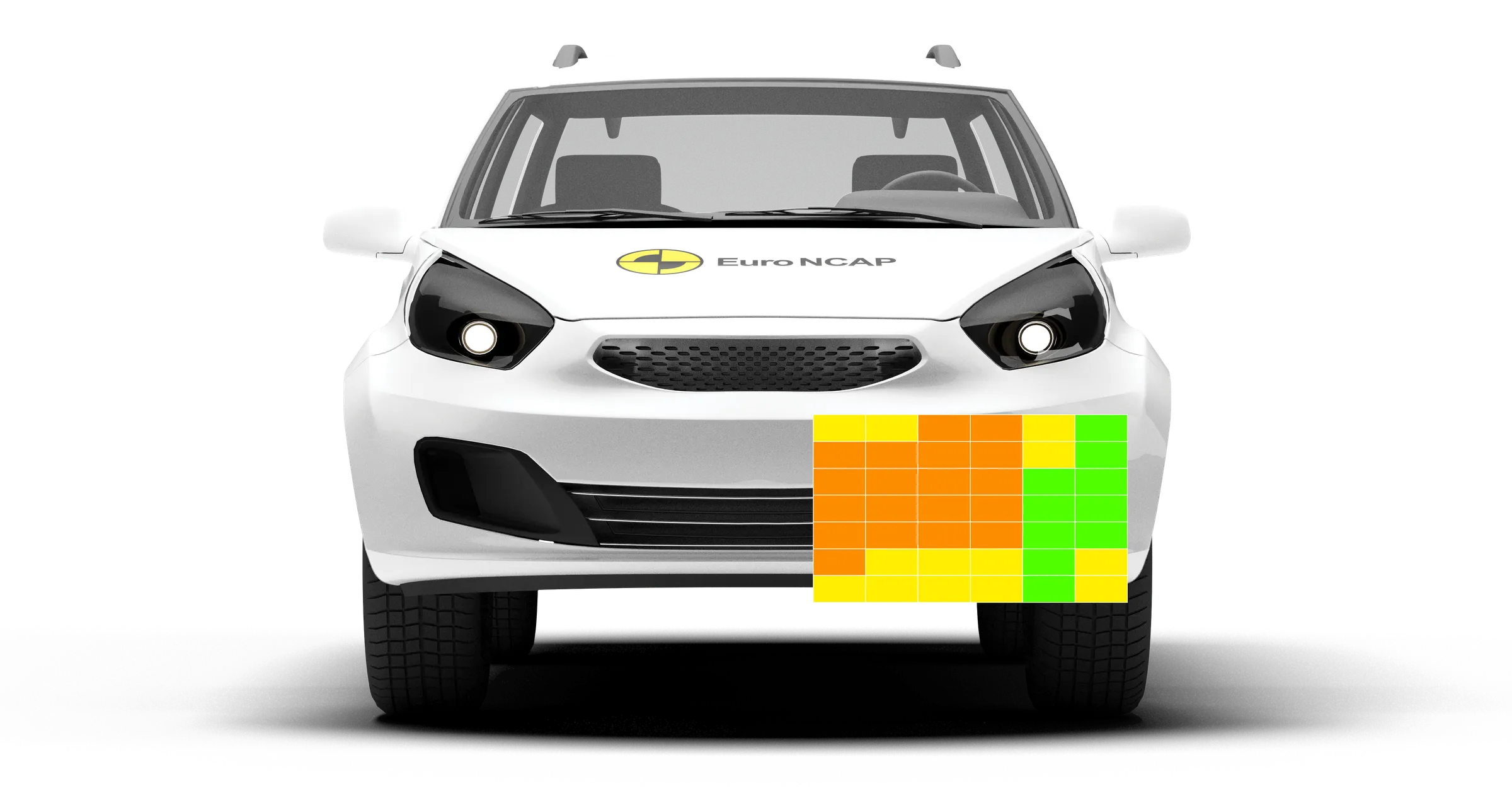

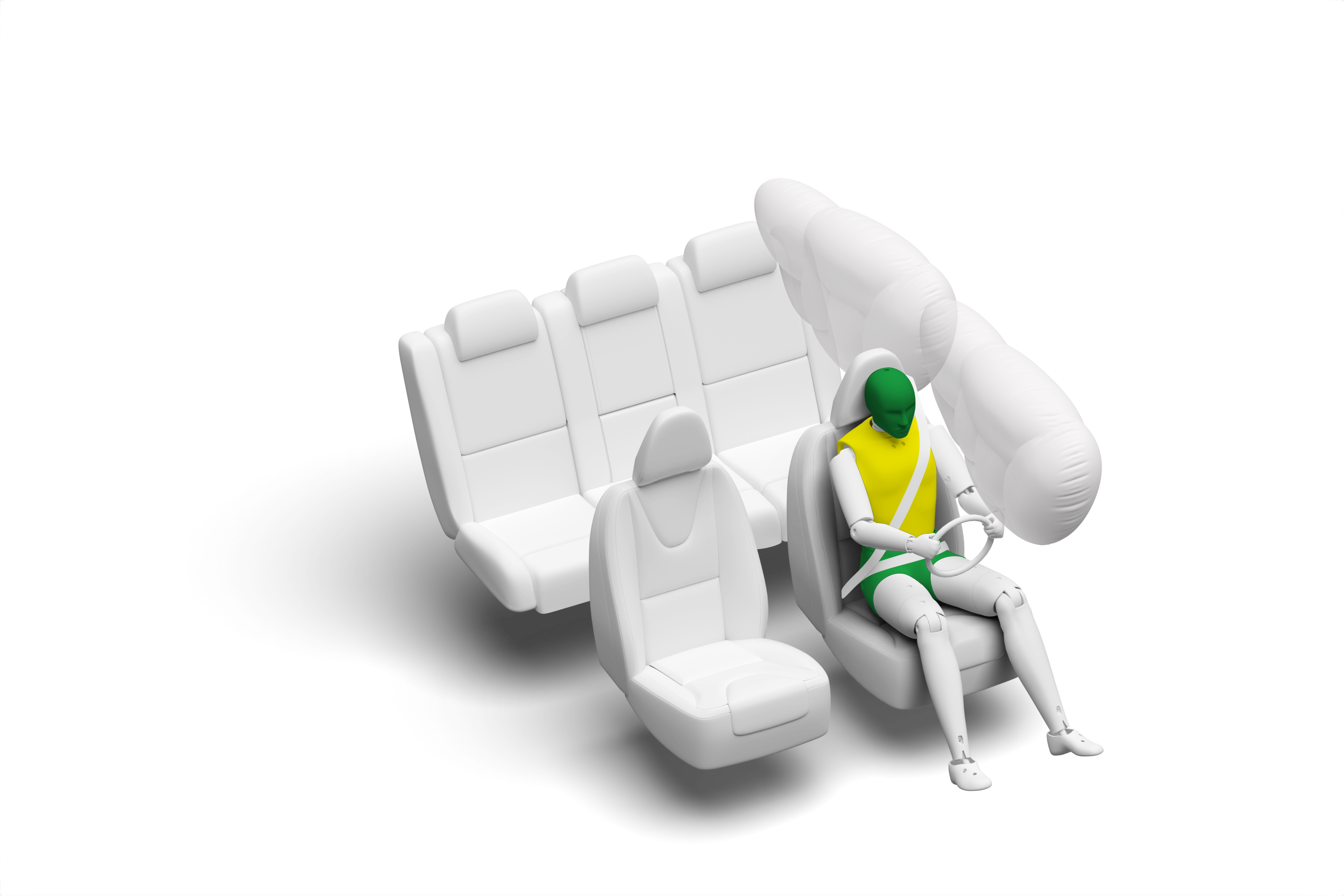

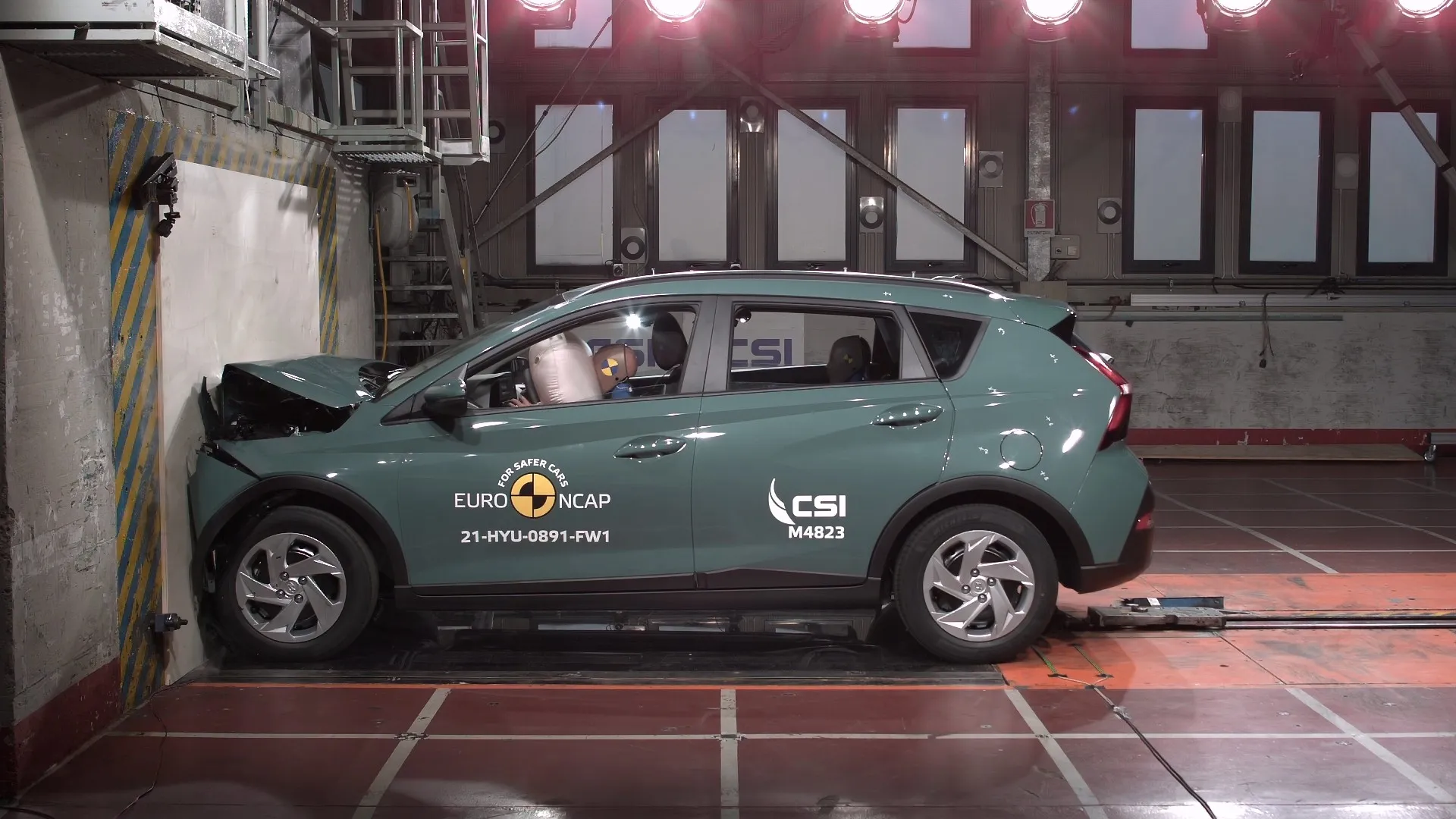

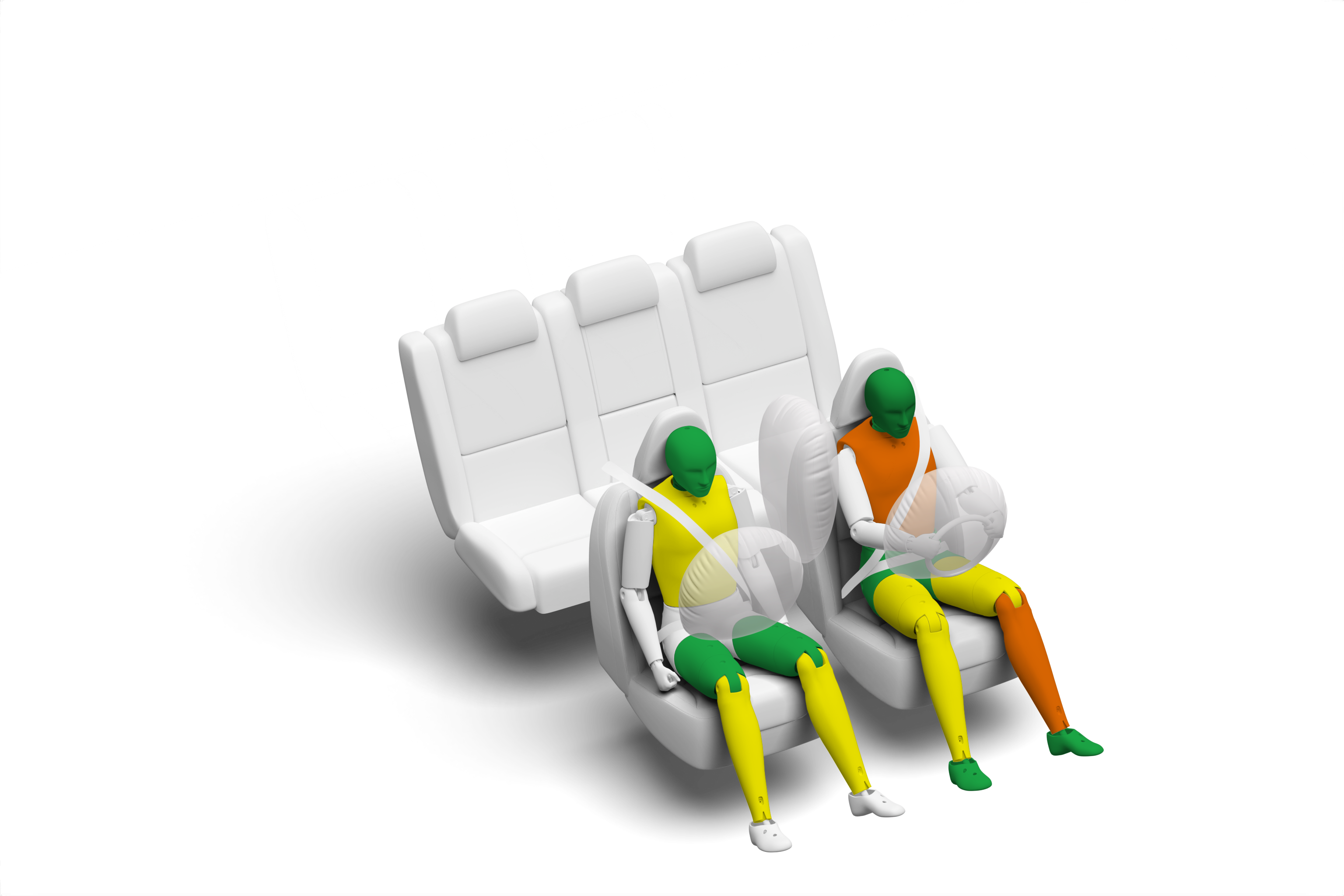

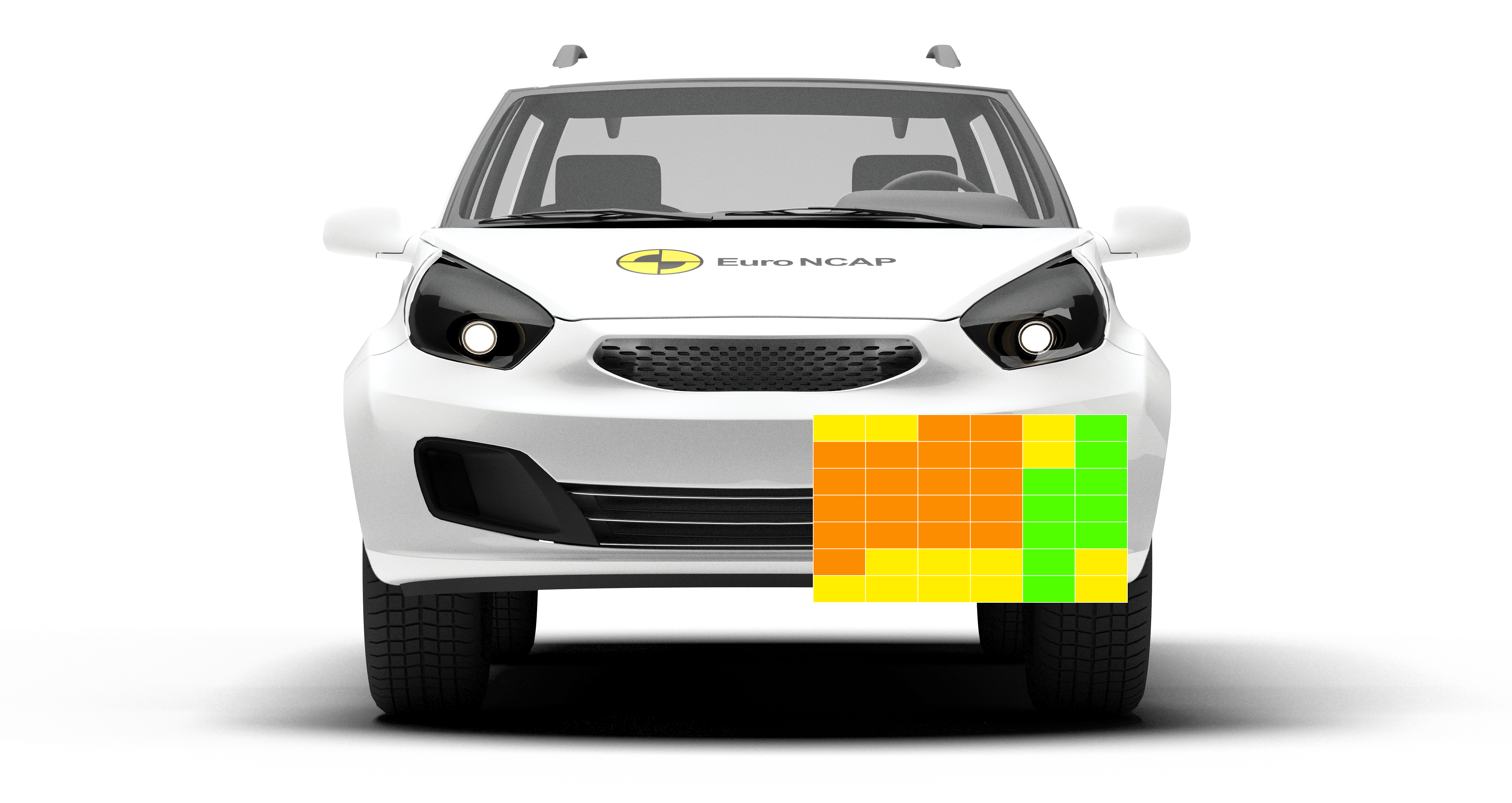

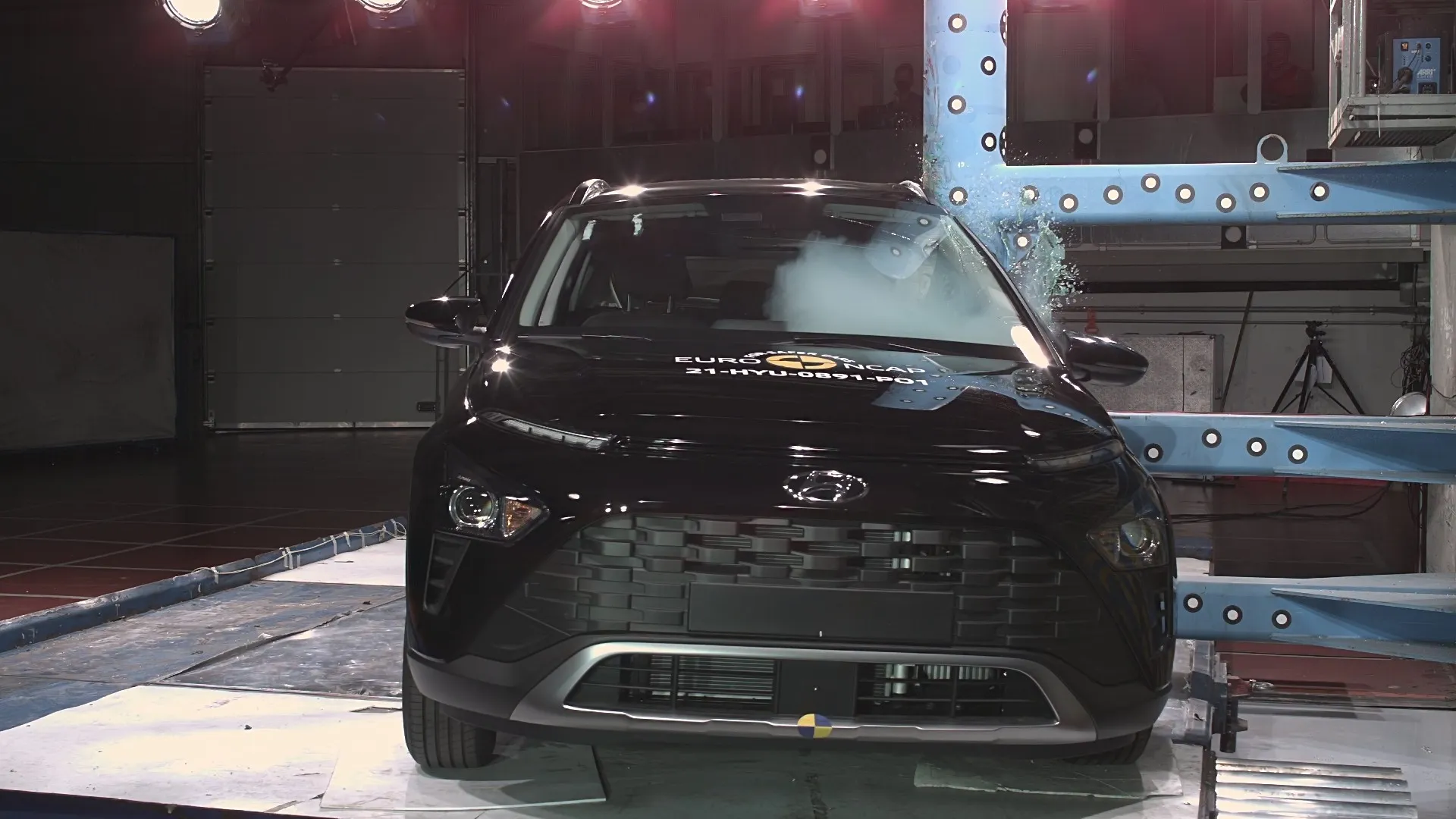

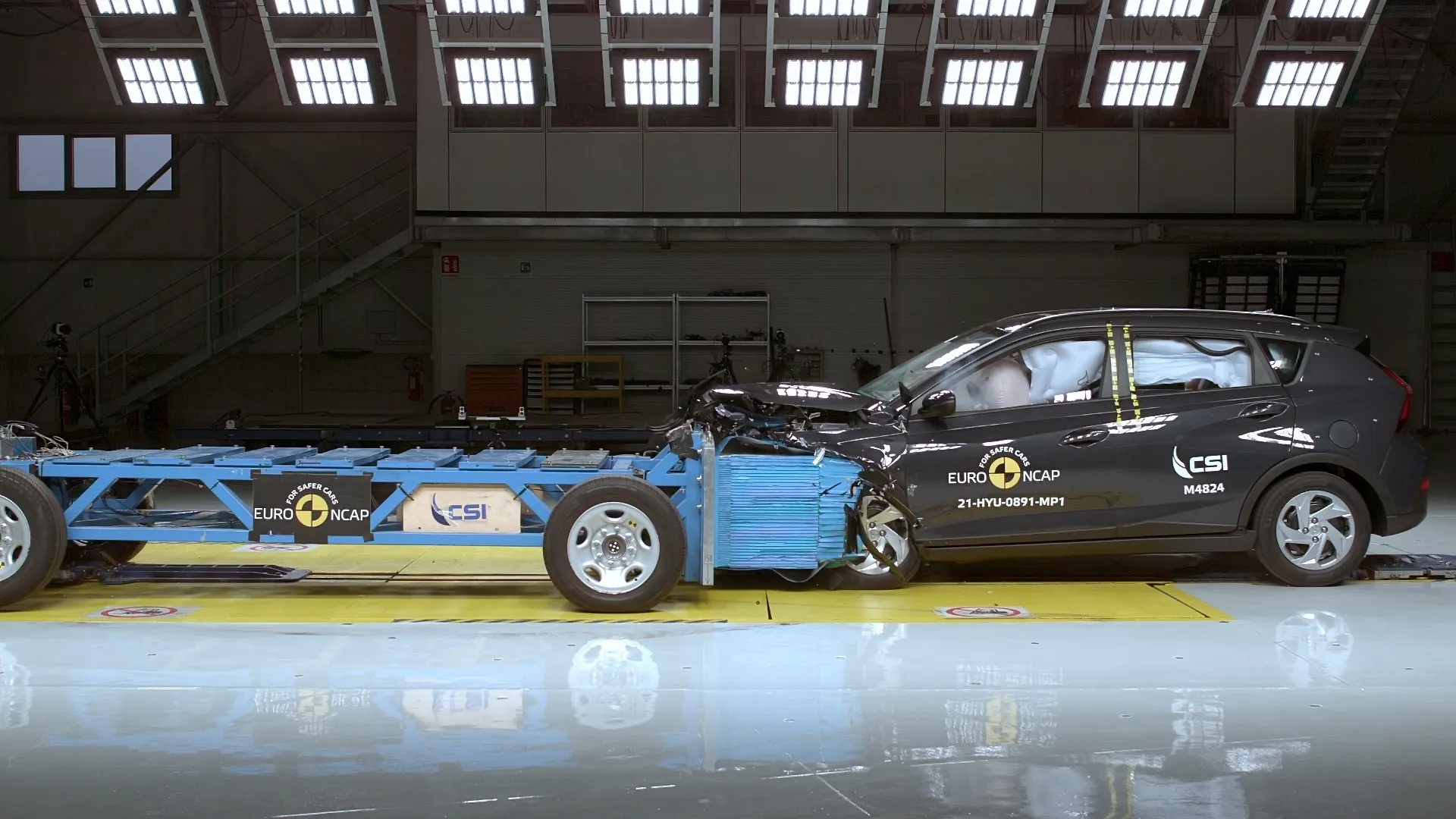

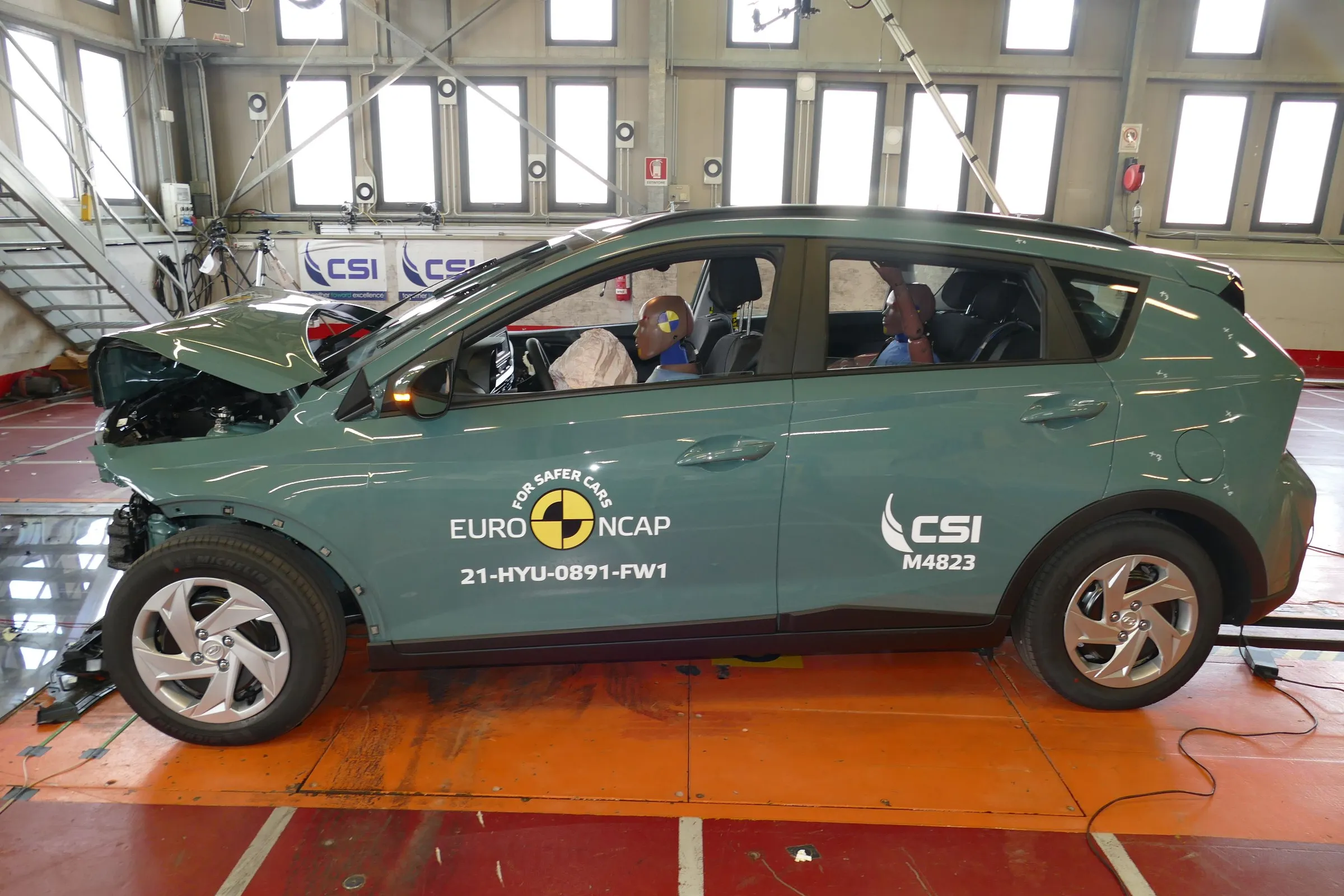

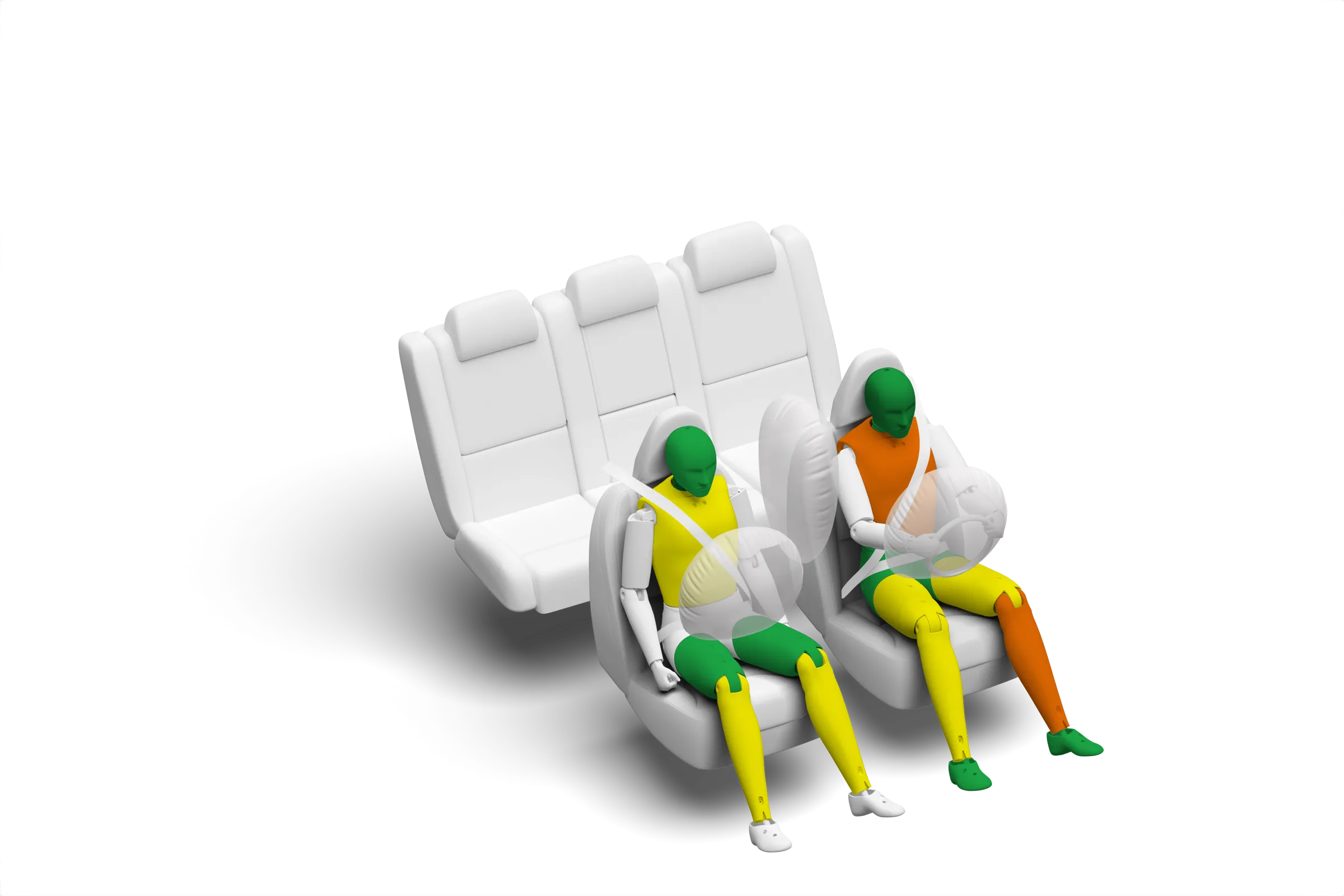

The passenger compartment of the BAYON remained stable in the frontal offset test. Dummy numbers showed good protection of the knees and femurs of both the driver and passenger. Hyundai showed that, on the passenger's side, a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. However, on the driver's side, structures in the dashboard were considered a risk to occupants' legs and a penalty was applied to the score.  Protection of the driver’s chest was rated as marginal, based on dummy readings of chest compression. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the BAYON would be a benign impact partner in a frontal collision. In the full-width rigid barrier test, protection of the chest of the rear dummy was rated as weak, based on compression of the chest, but protection was otherwise good or adequate. In the side barrier test, protection of all critical body areas was good and the car scored maximum points in this part of the assessment. In the more severe side pole impact, protection of all critical body areas was good or adequate. The BAYON is not equipped with a counter-measure to mitigate occupant to occupant injuries in the event of a side impact.  Mitigation of the extent to which a body would be thrown to the opposite side of a car in a lateral collision was rated as poor.  Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision.  A geometric analysis of the rear seats also indicated good whiplash protection.  The BAYON is equipped with an advanced eCall system which alerts the emergency services in the event of a crash, and with MCB, a system which applies the brakes after a collision to reduce the likelihood of secondary impacts.

In the frontal offset test, protection of both child dummies was good for all body regions except the neck of the 10 year dummy, protection of which was rated as weak, on the basis of measurements of tensile forces.  In the side barrier impact, protection of the head of the 10 year dummy was adequate but that of the chest was rated as poor on the basis of accelerations measured during the test.  The front passenger airbag can be disabled to allow a rearward-facing child restraint to be used in that seating position.  Clear information is provided to the driver regarding the status of the airbag and the system was rewarded.  All of the child restraint types for which the BAYON is designed could be properly installed and accommodated in the car.

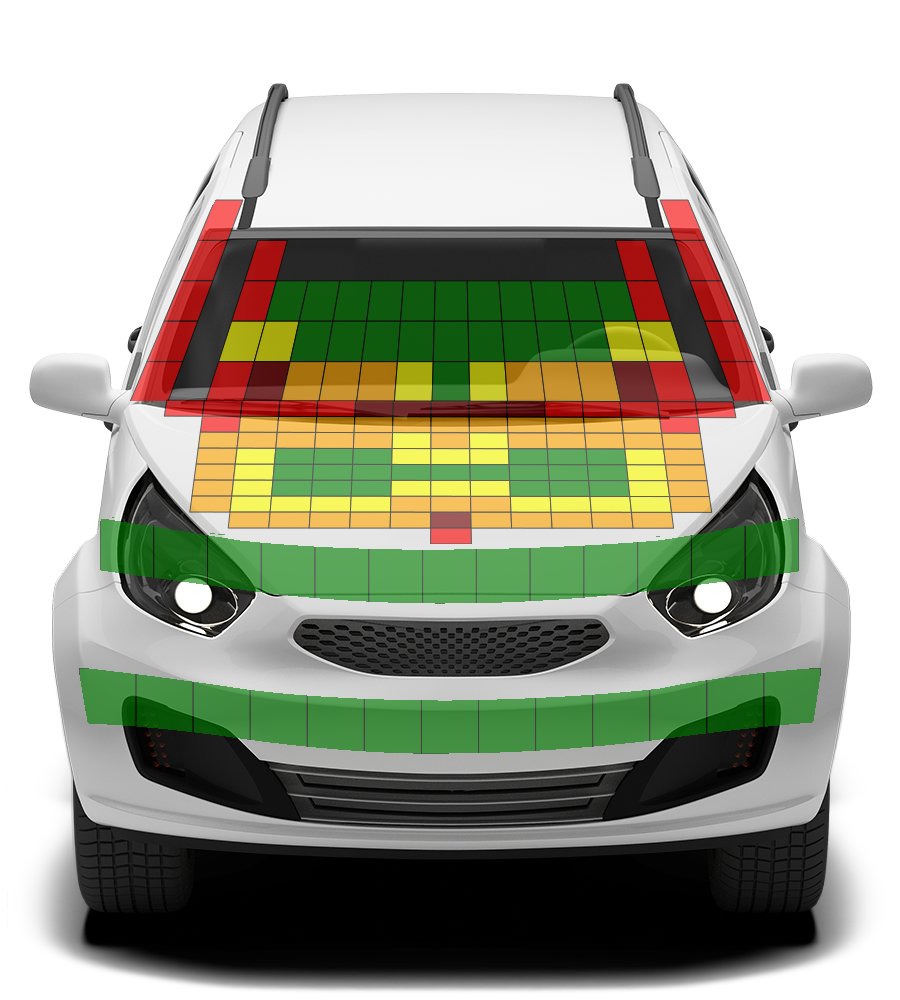

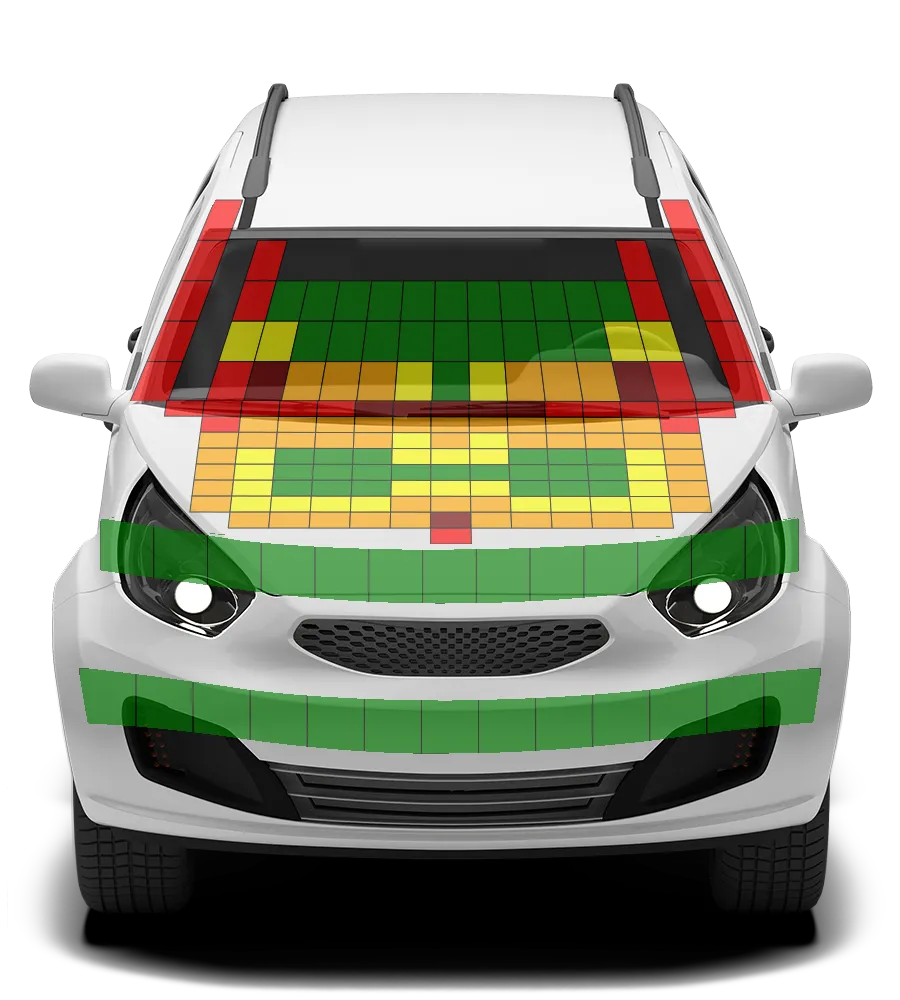

The protection provided by the bonnet to the head of a struck pedestrian was mixed but was mostly rated as between marginal and good.  Poor results were recorded at the base of the windscreen and on the stiff windscreen pillars.  The bumper provided good protection to pedestrians’ legs at all test locations and protection of the pelvis was also good, the BAYON scoring maximum points in these areas of assessment.  The autonomous emergency braking system of the BAYON detects vulnerable road users, as well as other vehicles.  The system’s response to pedestrians was adequate and its response to cyclists was good, with collisions avoided or mitigated in most test scenarios.

A seatbelt reminder is standard for the front and rear seats and a driver monitoring system monitors steering inputs for signs of fatigued driving.  The autonomous emergency braking system showed only marginal performance in tests of its reaction to other vehicles.    Speed assistance is provided by a system which informs the driver of the local limit, allowing the limiter to be set appropriately.  A lane support system gently corrects the course of a car which is drifting out of lane and also intervenes in more critical situations.
