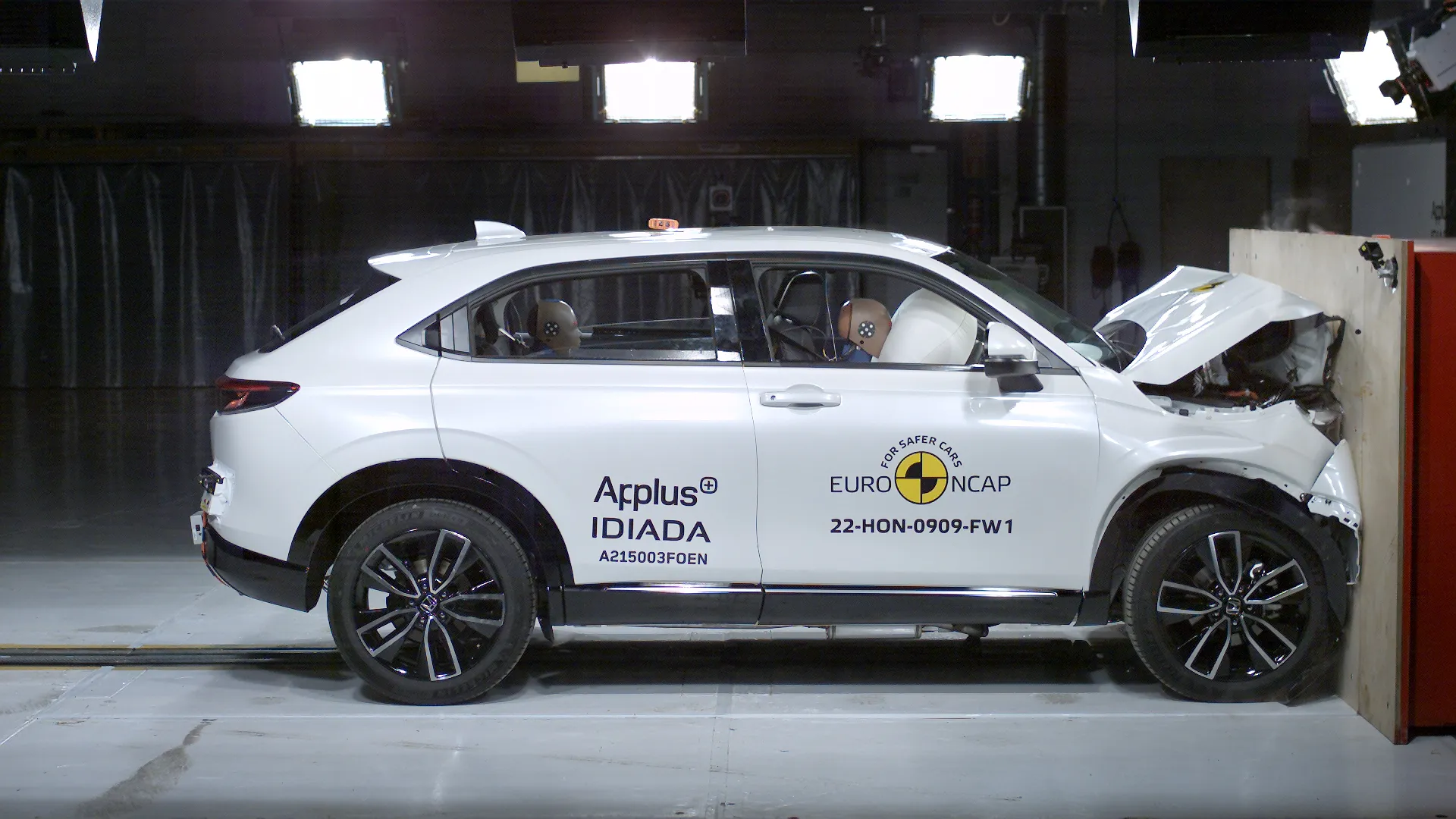

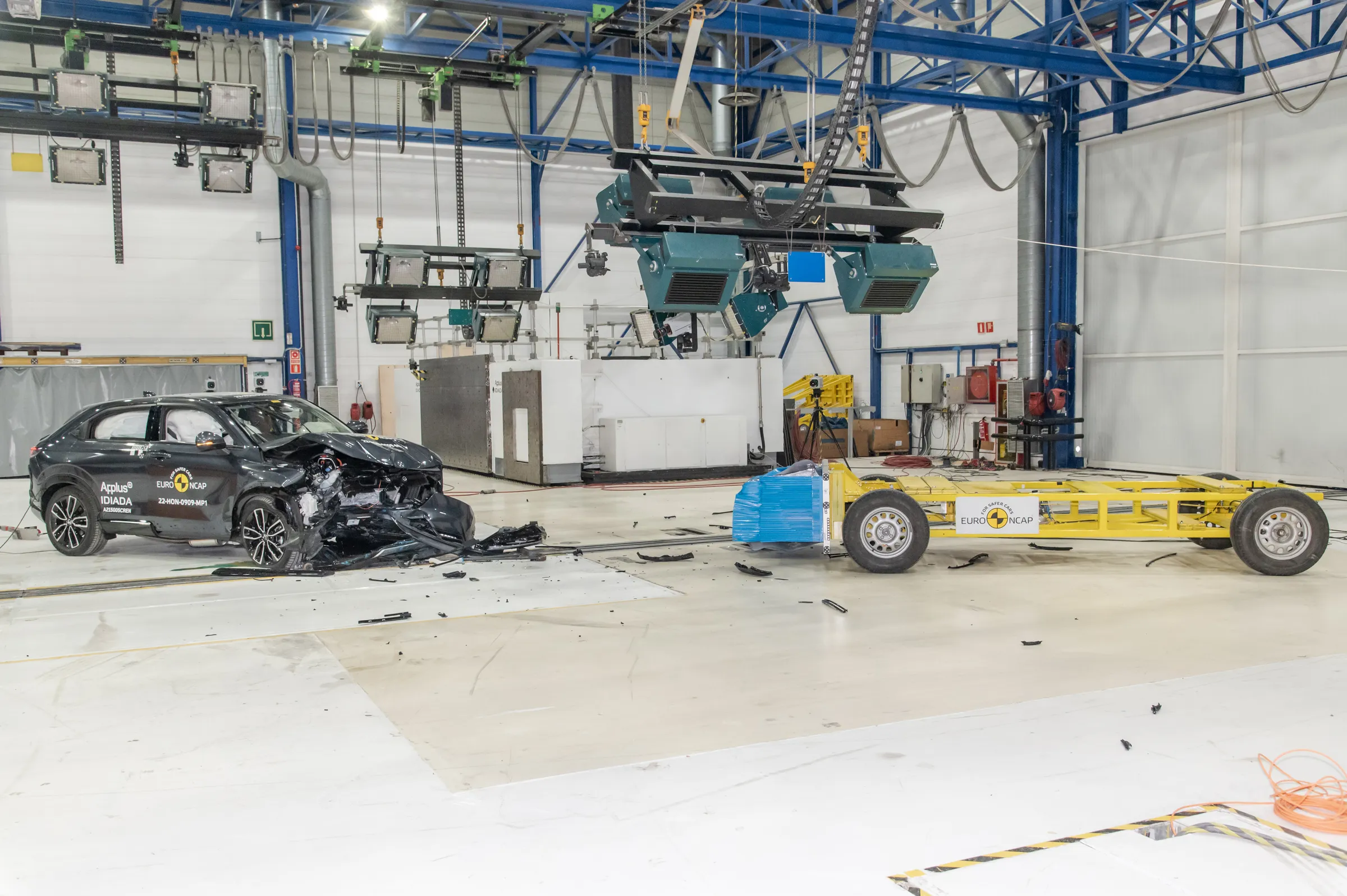

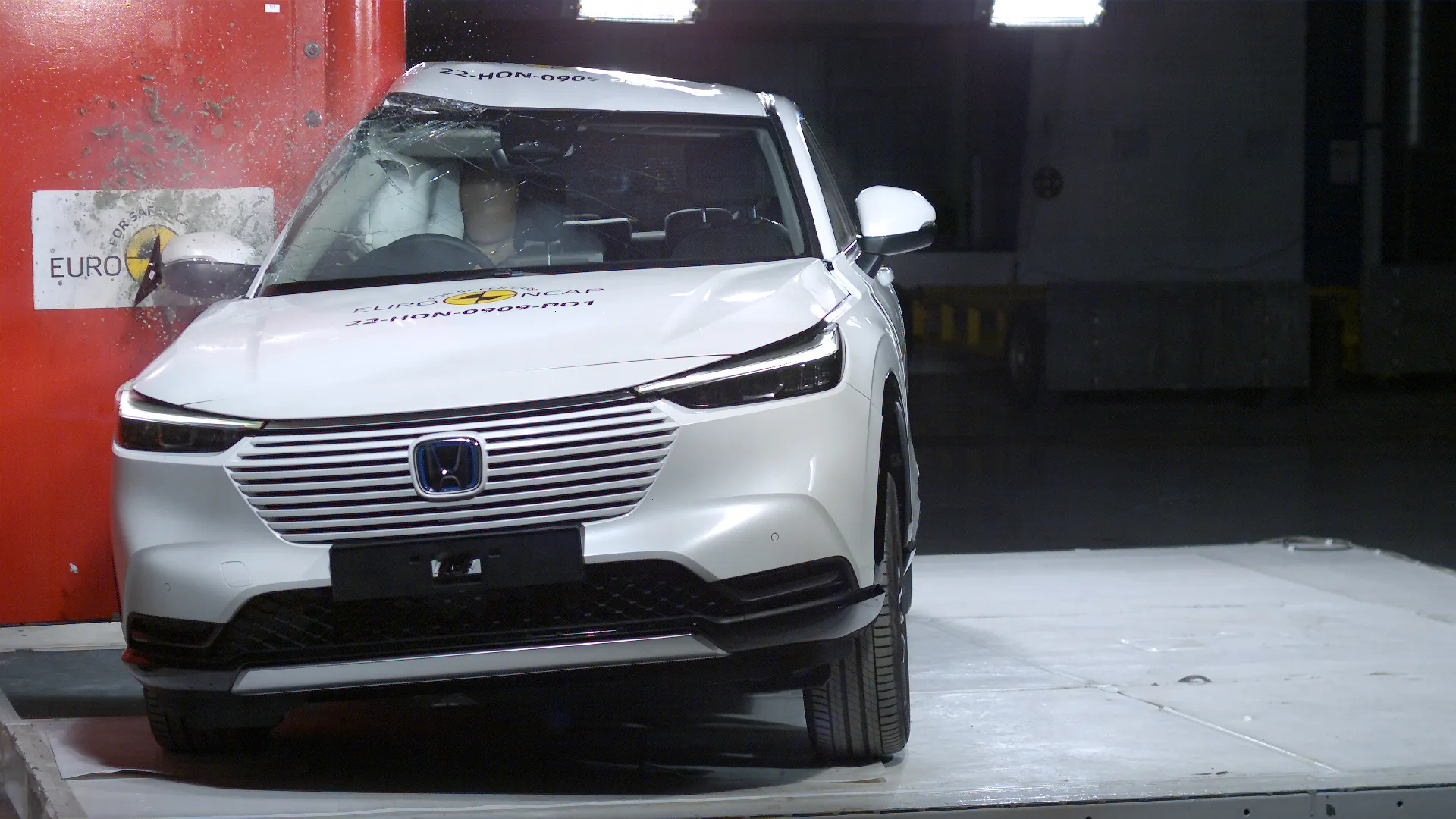

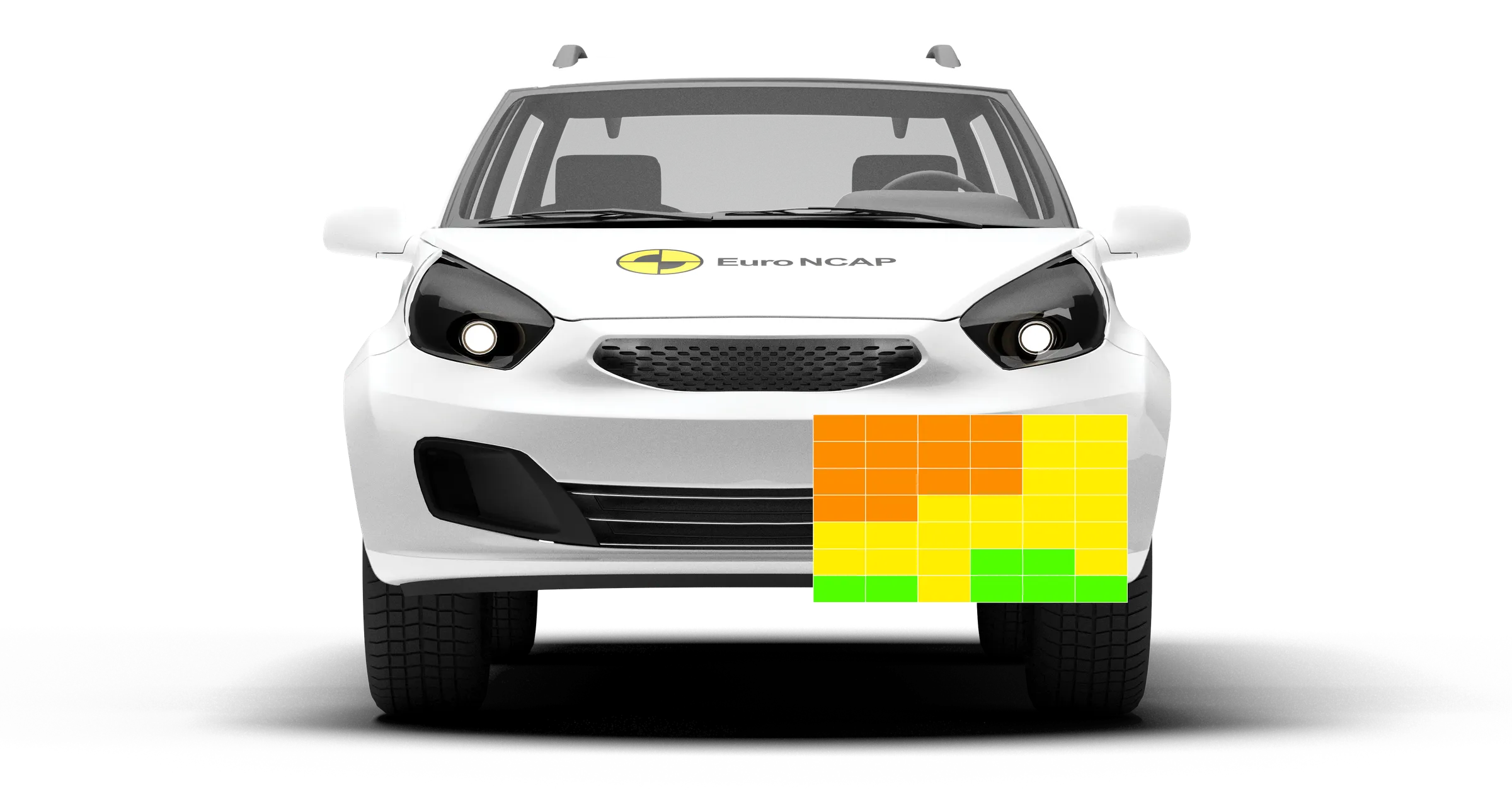

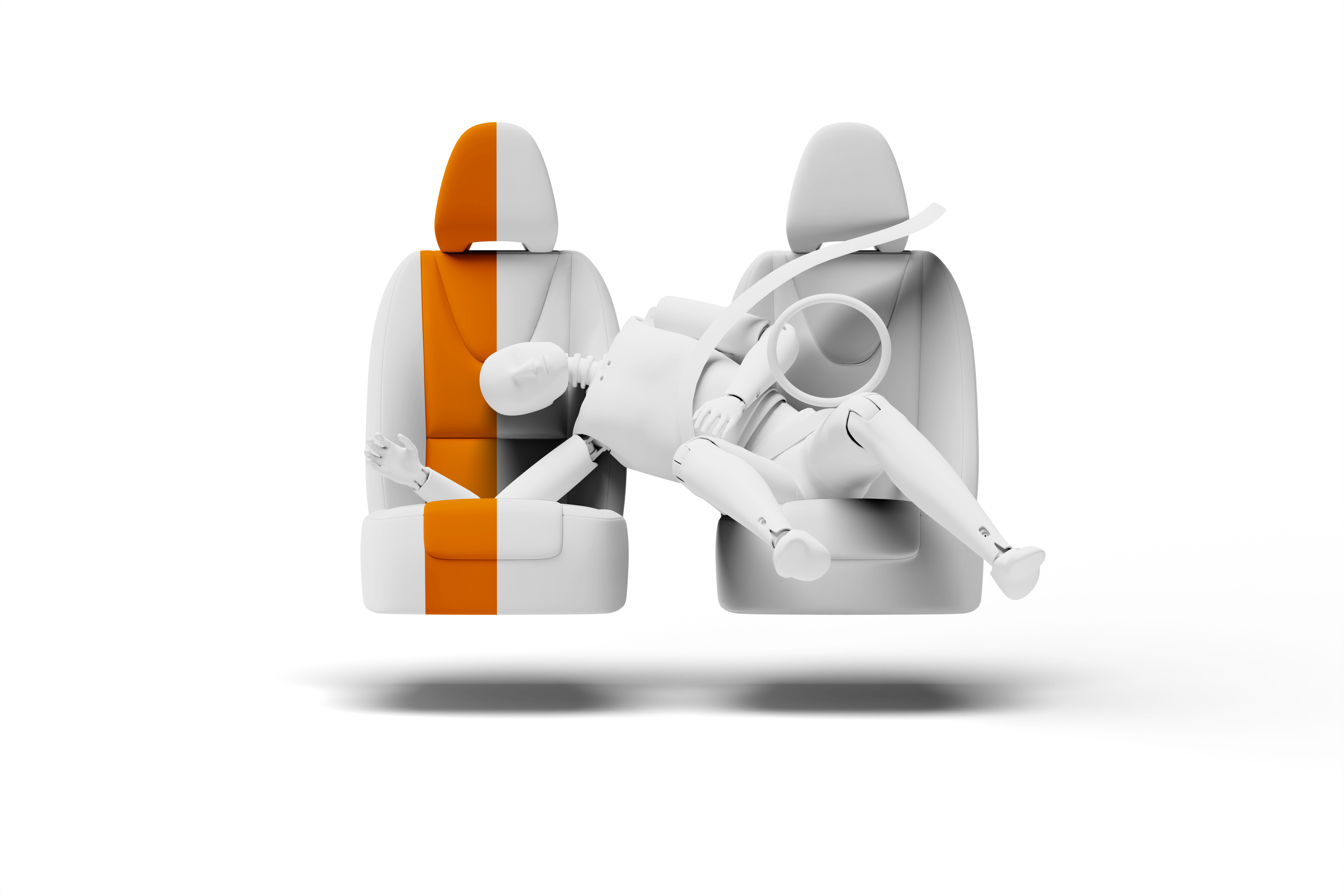

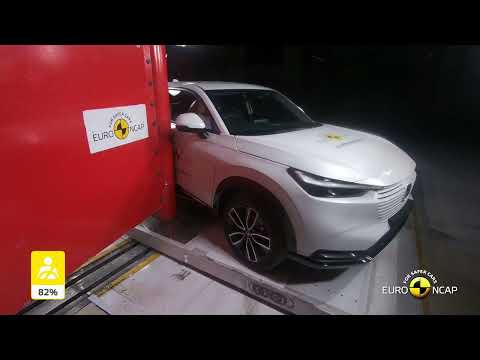

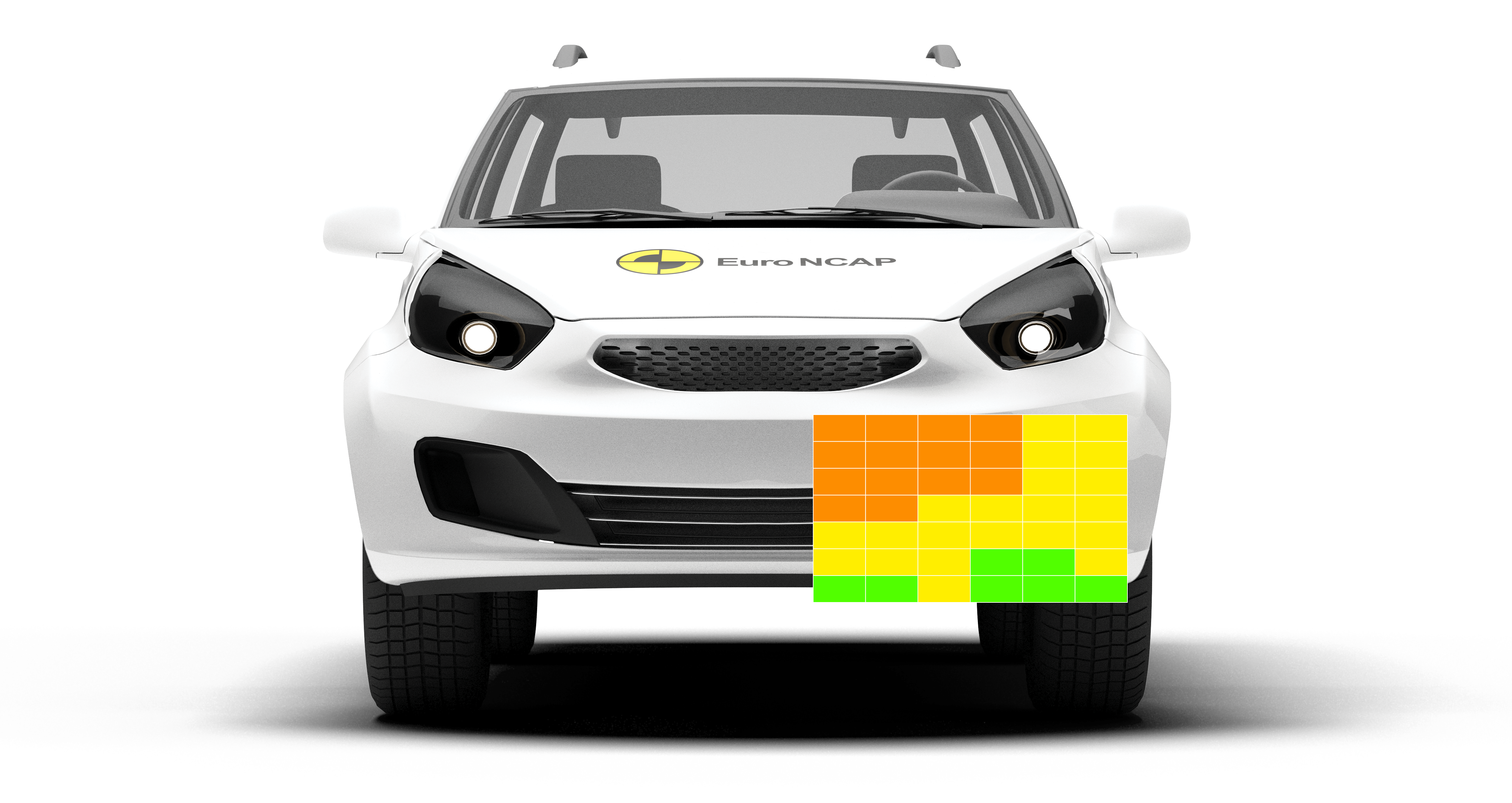

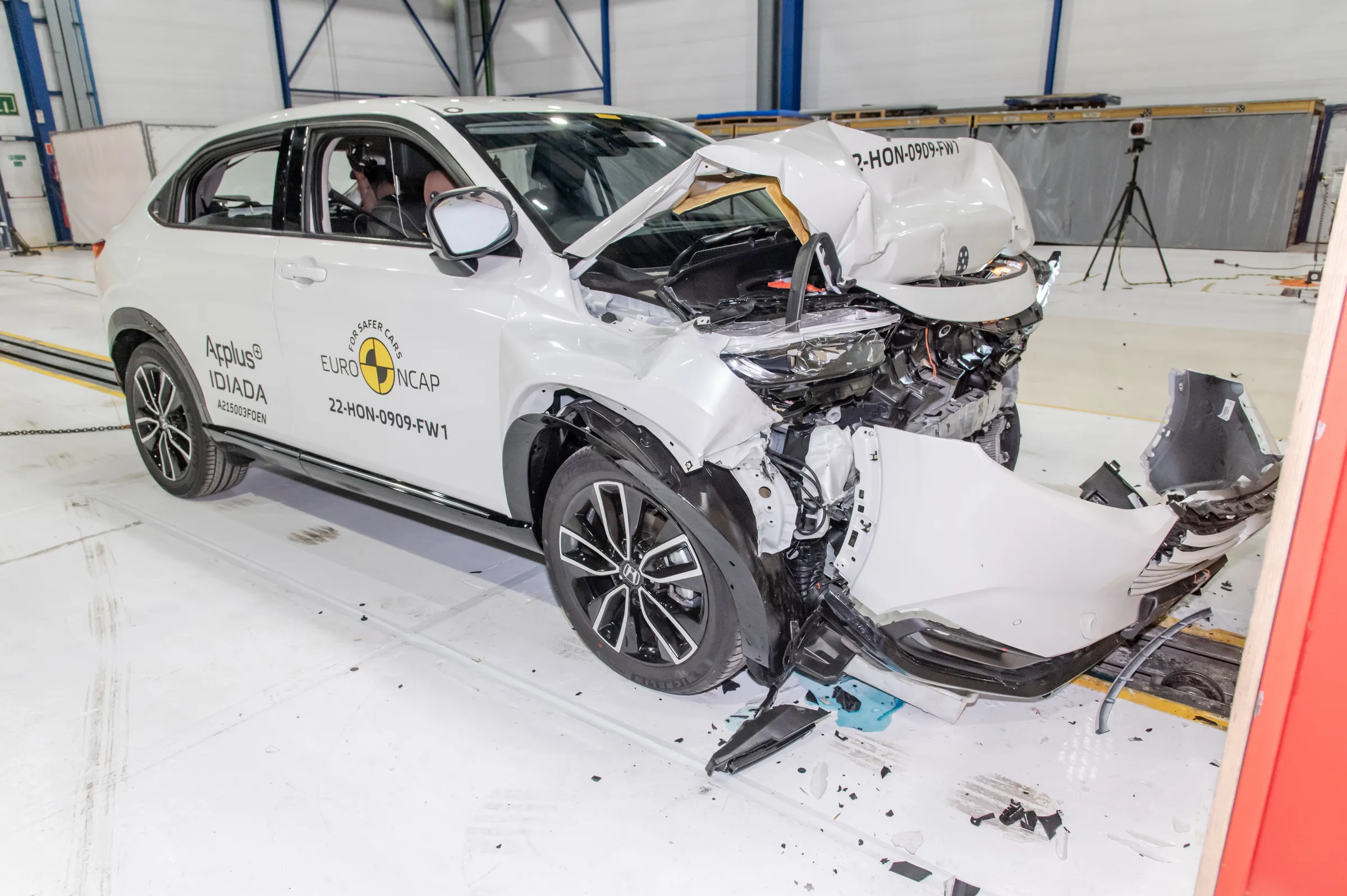

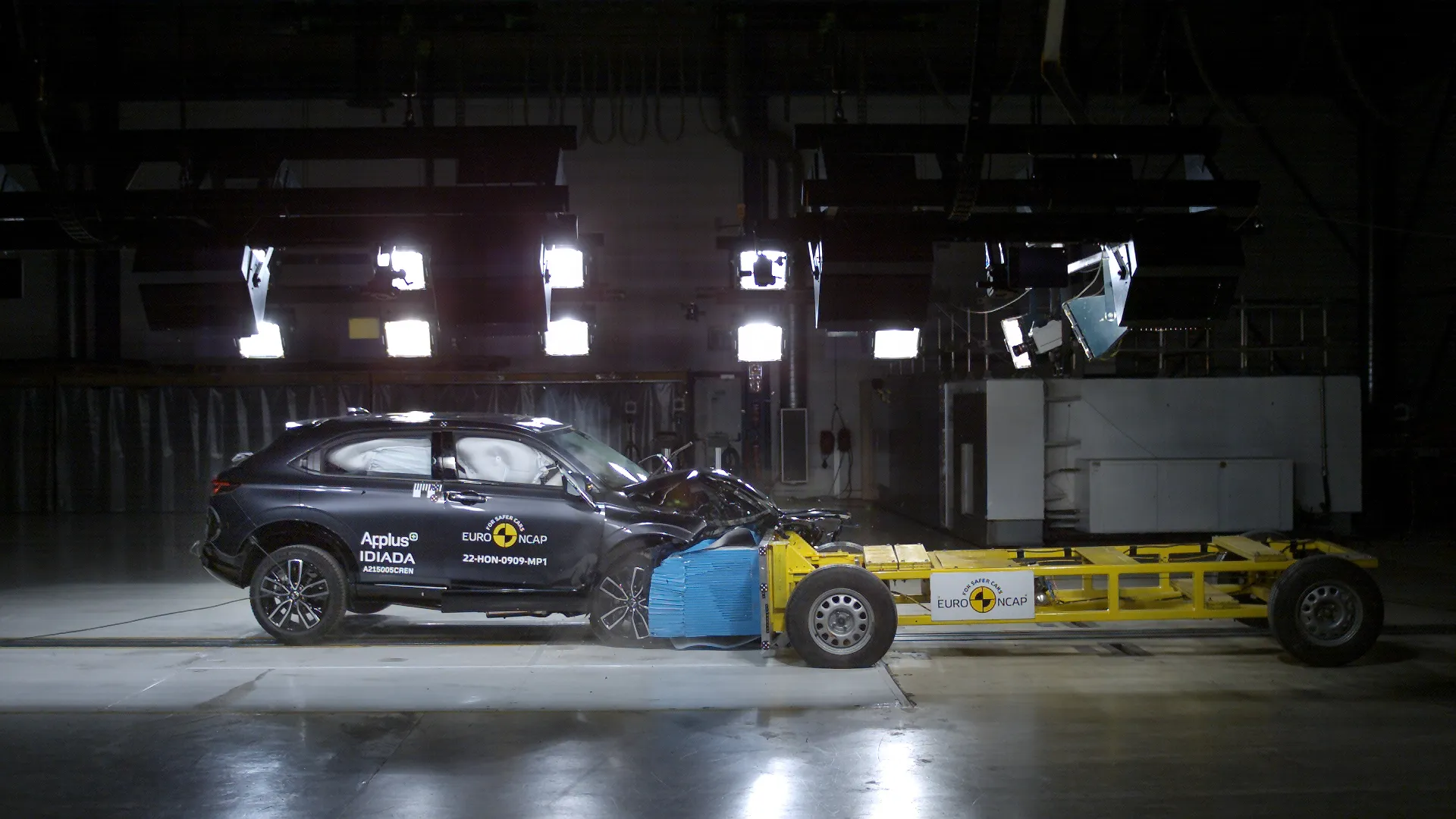

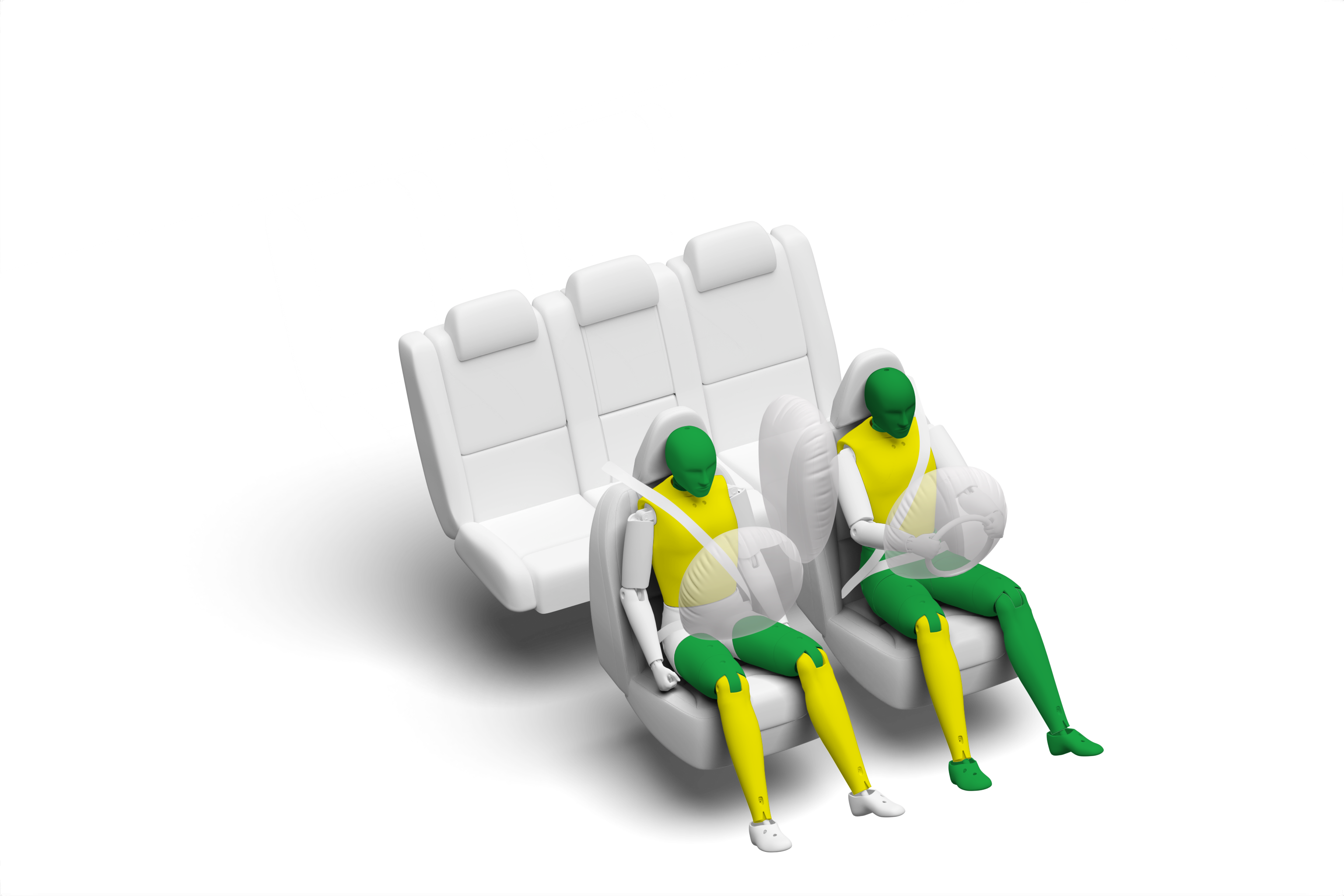

The passenger compartment of the HR-V remained stable in the frontal offset test. Dummy numbers showed good protection of the knees and femurs of both the driver and passenger. Honda showed that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the HR-V would be a benign impact partner in a frontal collision. In the full-width rigid barrier test, protection of the chest of the rear passenger dummy was rated as marginal, based on measurements of compression. Otherwise, protection of both dummies was good or adequate. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and the car scored maximum points in this part of the assessment. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be marginal. The HR-V does not have a counter-measure, such as a centre airbag, to mitigate against occupant to occupant injuries in such impacts. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats also indicated good whiplash protection. The HR-V has an advanced eCall system which alerts the emergency services in the event of a crash but is not equipped with a system to prevent secondary impacts in the event of a collision.

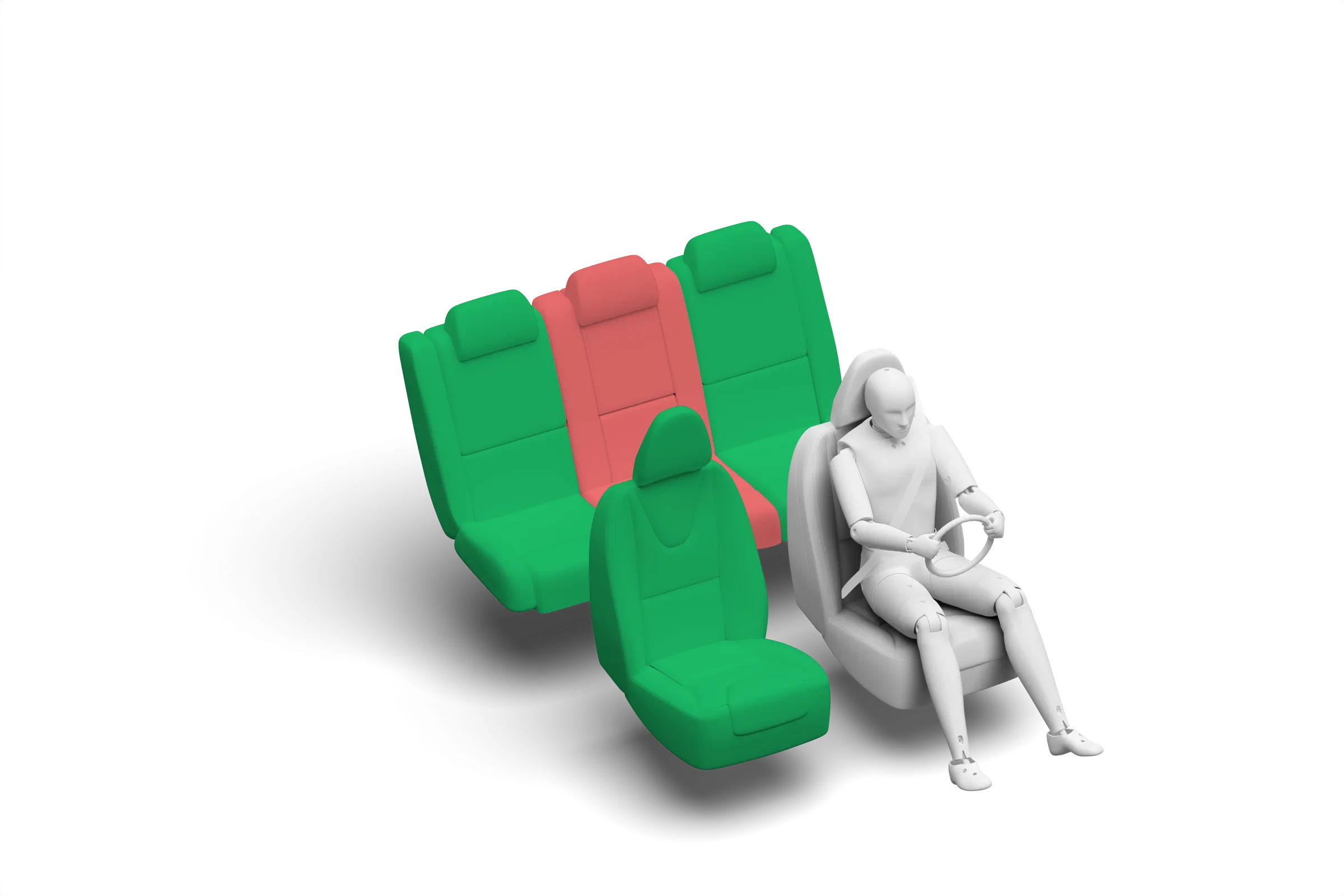

In the frontal offset test, dummy readings indicated good or adequate protection for both child dummies. However, analysis of the film revealed that the seat belt had partially slipped off the shoulder of the 10 year dummy and, as a result, the overall score for the test was penalised.  In the side barrier impact, dummy readings of accelerations indicated weak protection of the head of the 10 year dummy. Otherwise, protection of all critical body areas was good for both child dummies. The front passenger airbag can be disabled to allow a rearward-facing child restraint to be used in that seating position. Clear information is provided to the driver about the status of the airbag and the system was rewarded. Some universal child restraints were unstable when positioned in the rear centre seating position but, otherwise, all systems for which the HR-V is designed could be properly installed and accommodated.

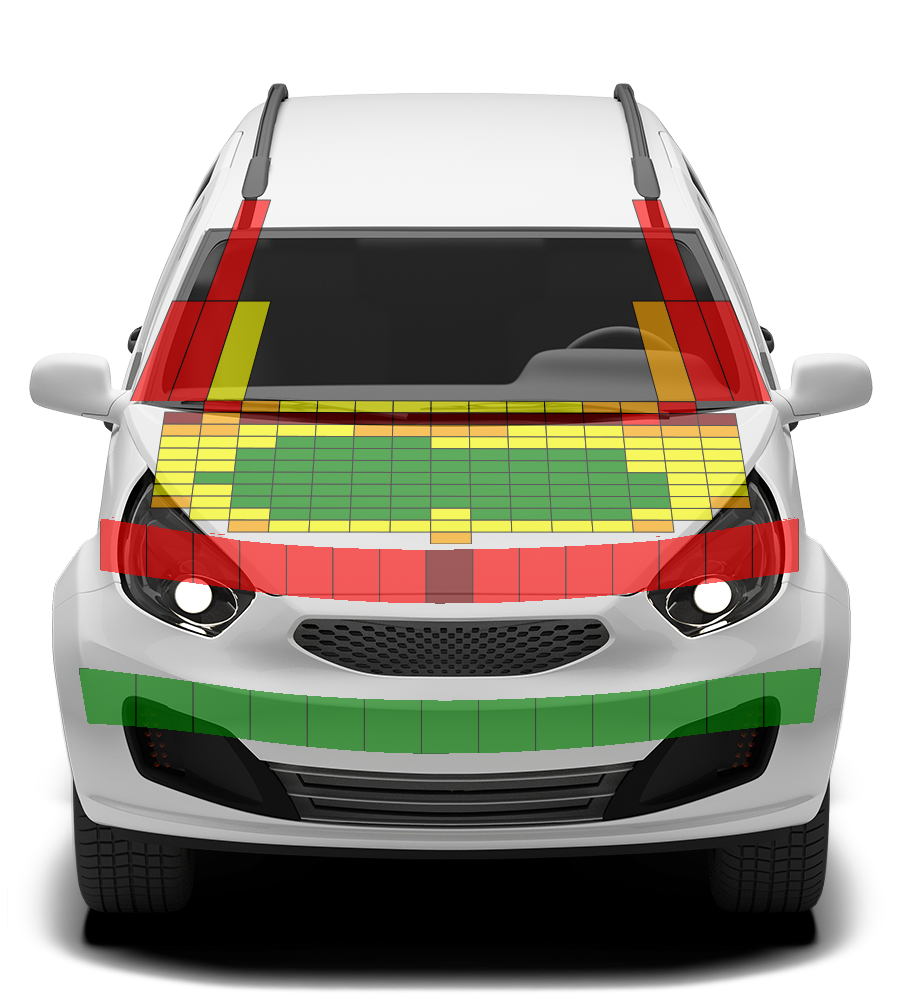

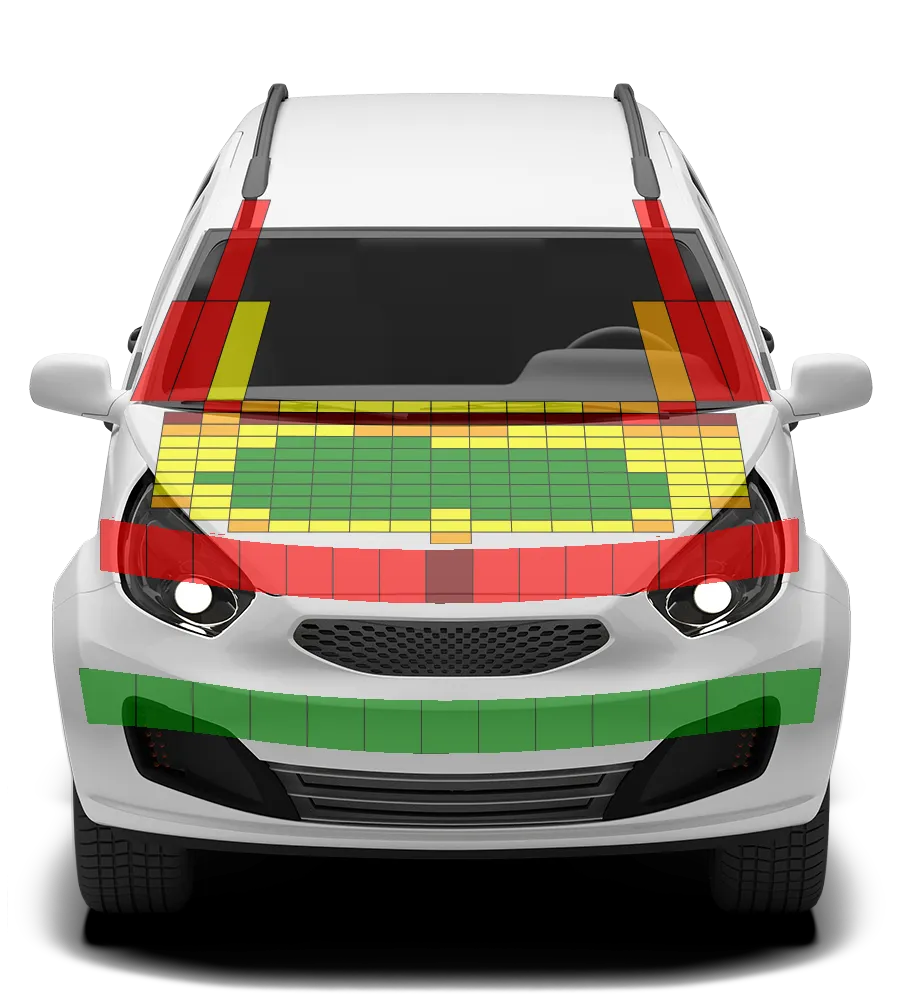

The protection provided to the head of a struck pedestrian was predominantly good or adequate, with some poor results recorded on the stiff windscreen pillars. The bumper provided good protection to pedestrians’ legs at all test points. However, protection of the pelvis was poor almost everywhere along the front edge of the bonnet. The autonomous emergency braking (AEB) system of the HR-V can detect vulnerable road users, as well as other vehicles. In tests of its response to pedestrians, the system performed well, with collisions avoided or mitigated in almost all scenarios. Likewise, the system’s response to cyclists was good.

In tests of its response to other vehicles, the autonomous emergency braking (AEB) system performed well. A camera-based speed assistance system identifies the local speed limit. This information is provided to the driver who can choose to allow the car adapt the speed limiter as appropriate. A lane support system gently corrects the vehicle’s path if it is drifting out of lane and can also intervene in more critical situations to avoid road departure, for example. A seat belt reminder is provided for the front and rear seats but there is no system to monitor for fatigued driving.
