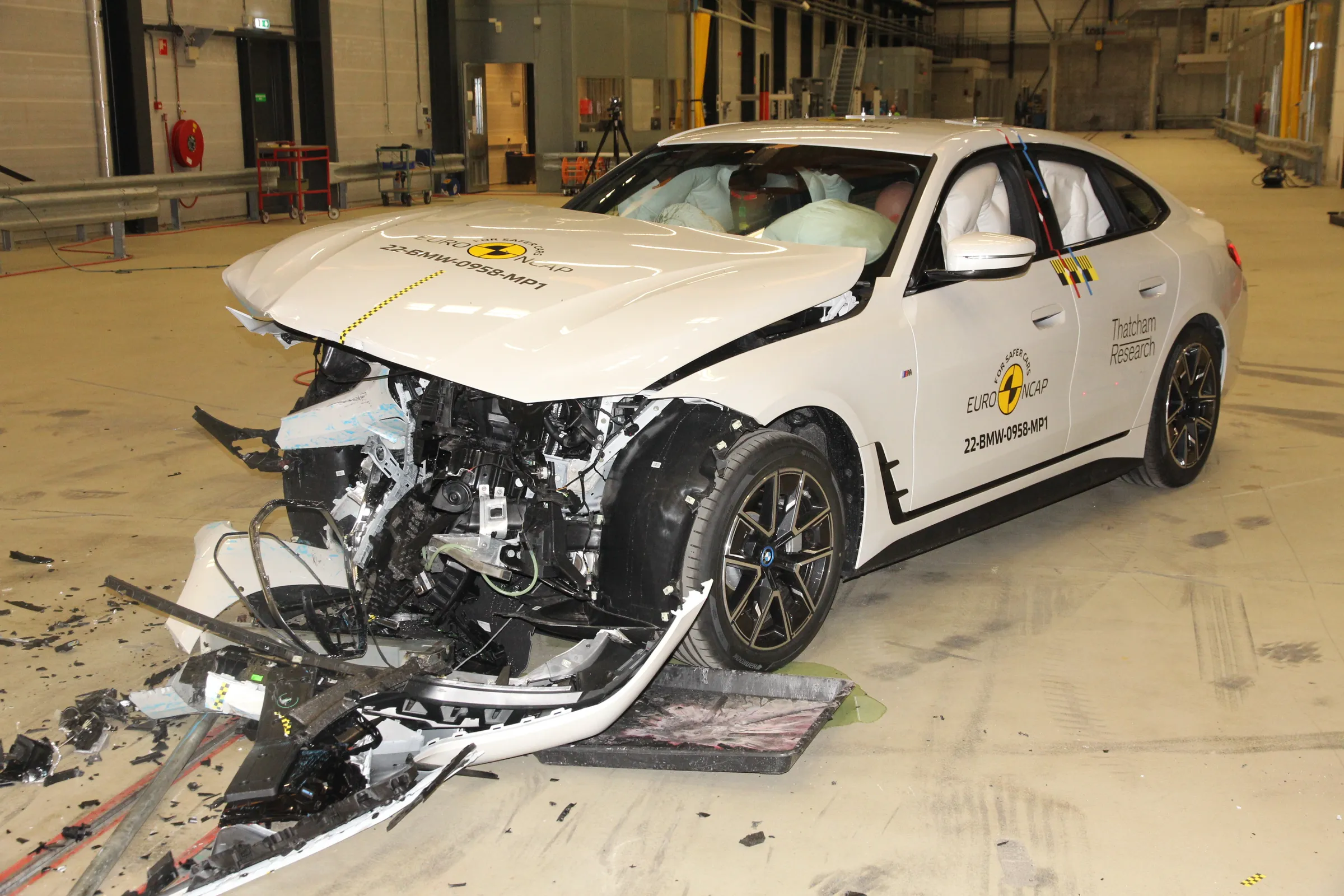

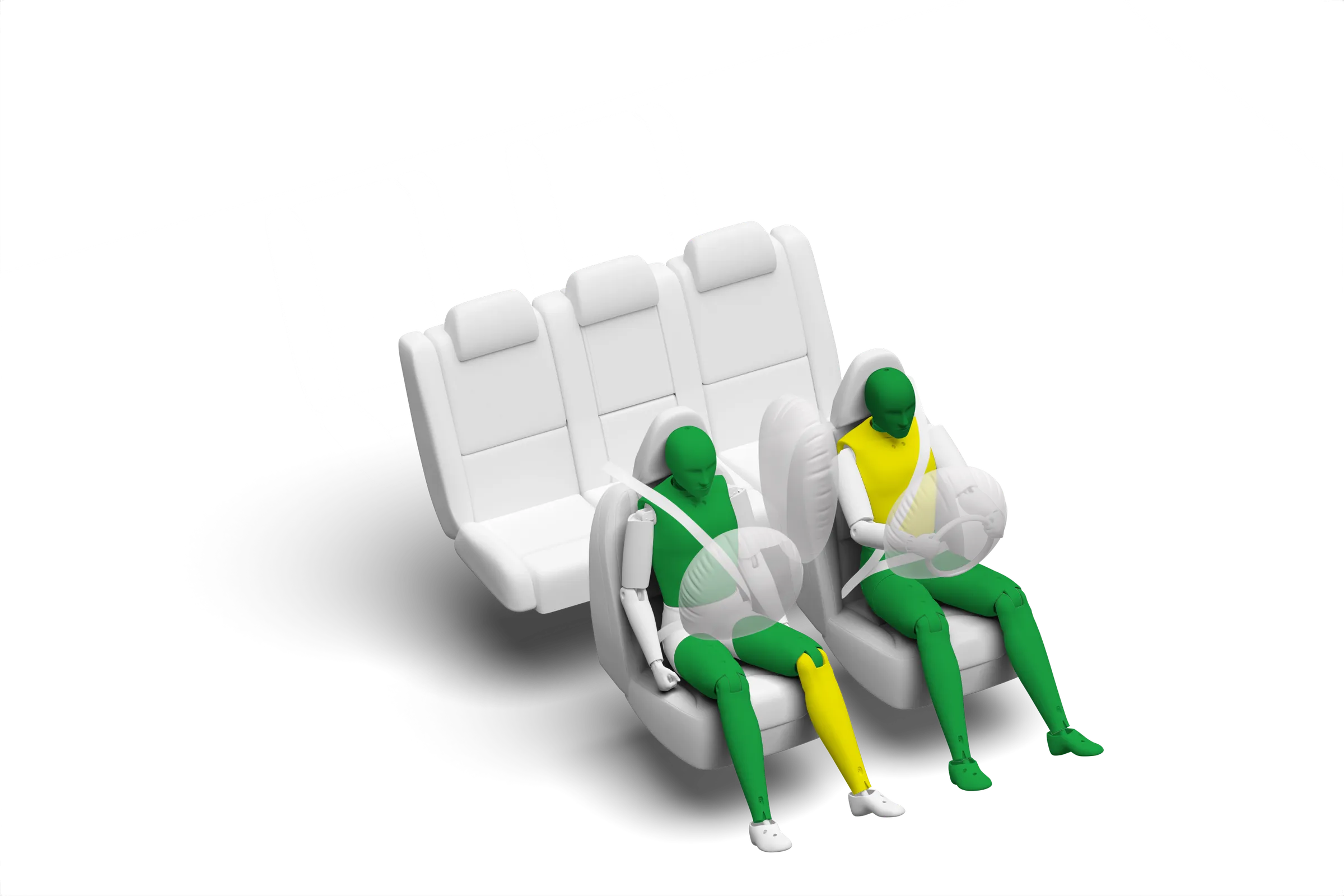

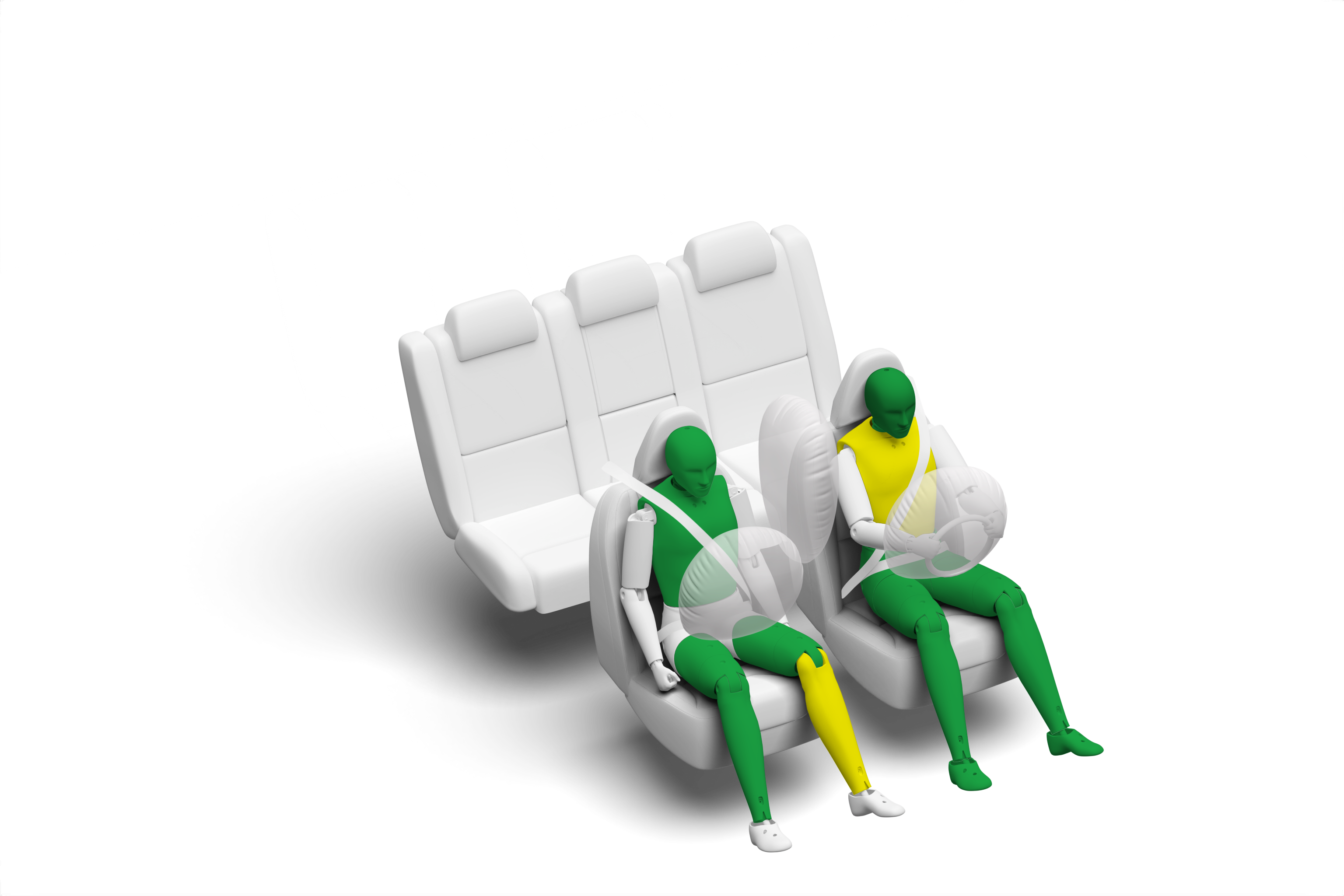

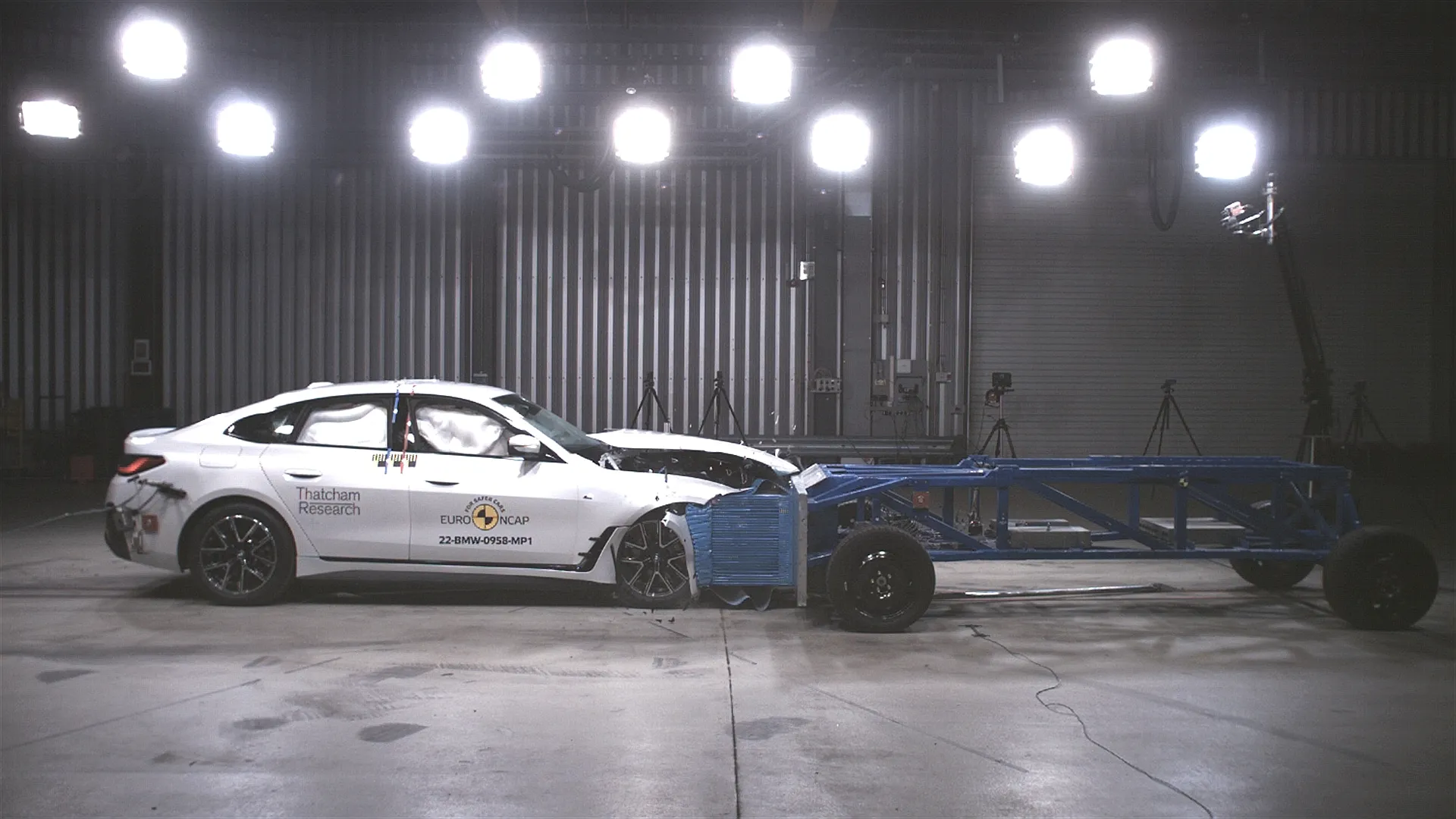

The passenger compartment of the i4 remained stable in the frontal offset test. Dummy numbers demonstrated good protection for the knees and femurs of both the driver and passenger. BMW demonstrated that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the i4 would be a moderately benign impact partner in a frontal collision. In the full width rigid-barrier impact, protection of all critical body areas was good or adequate, for both the driver and rear seat passenger. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and maximum points were scored. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The i4 does not have a counter-measure to mitigate against occupant to occupant injuries in such impacts. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats also indicated good whiplash protection. The i4 has an advanced eCall system which alerts the emergency services in the event of a crash but no system to apply the brakes after an impact to avoid secondary collisions.

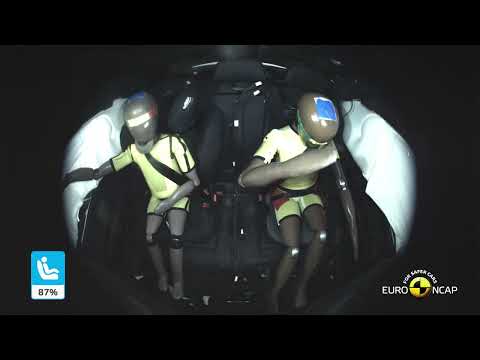

In both the frontal offset and the side impact barrier tests, protection of all critical body areas was good for all critical body areas, for both the 6 and 10 year dummy, and maximum points were scored for this part of the assessment. The front passenger airbag can be disabled to allow a reward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. All of the child restraint types for which the car is designed could be properly installed and accommodated.

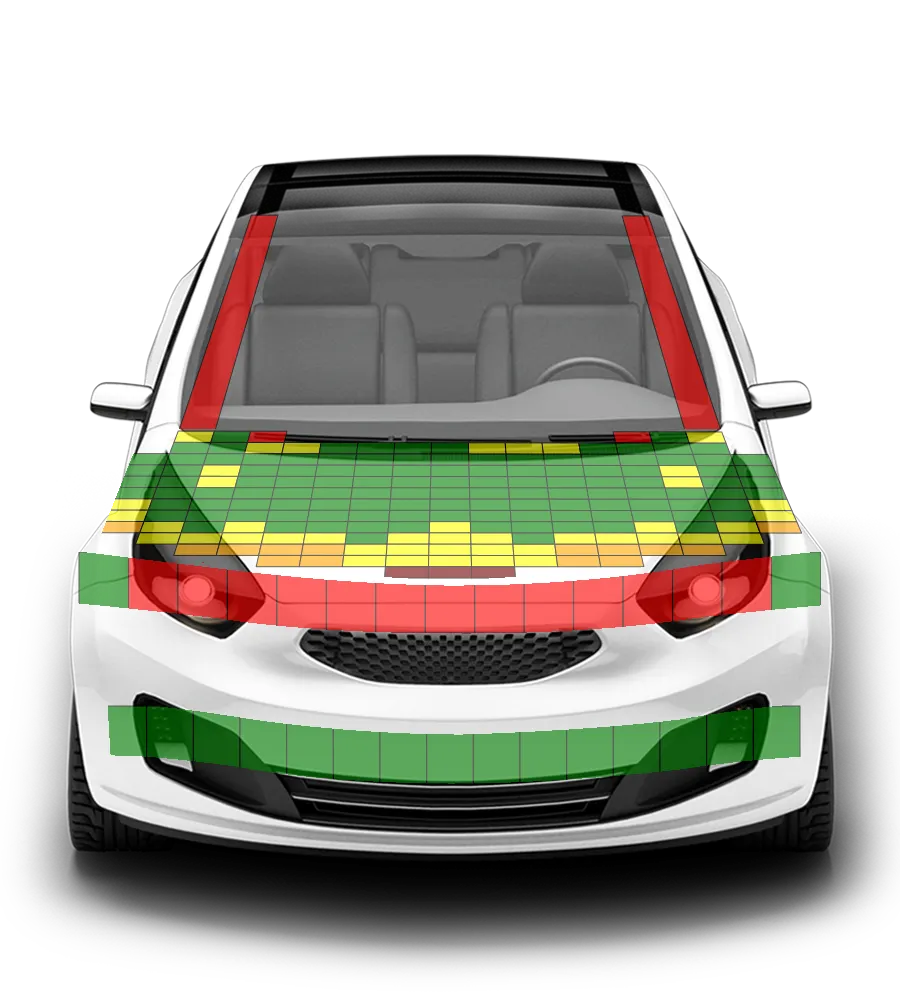

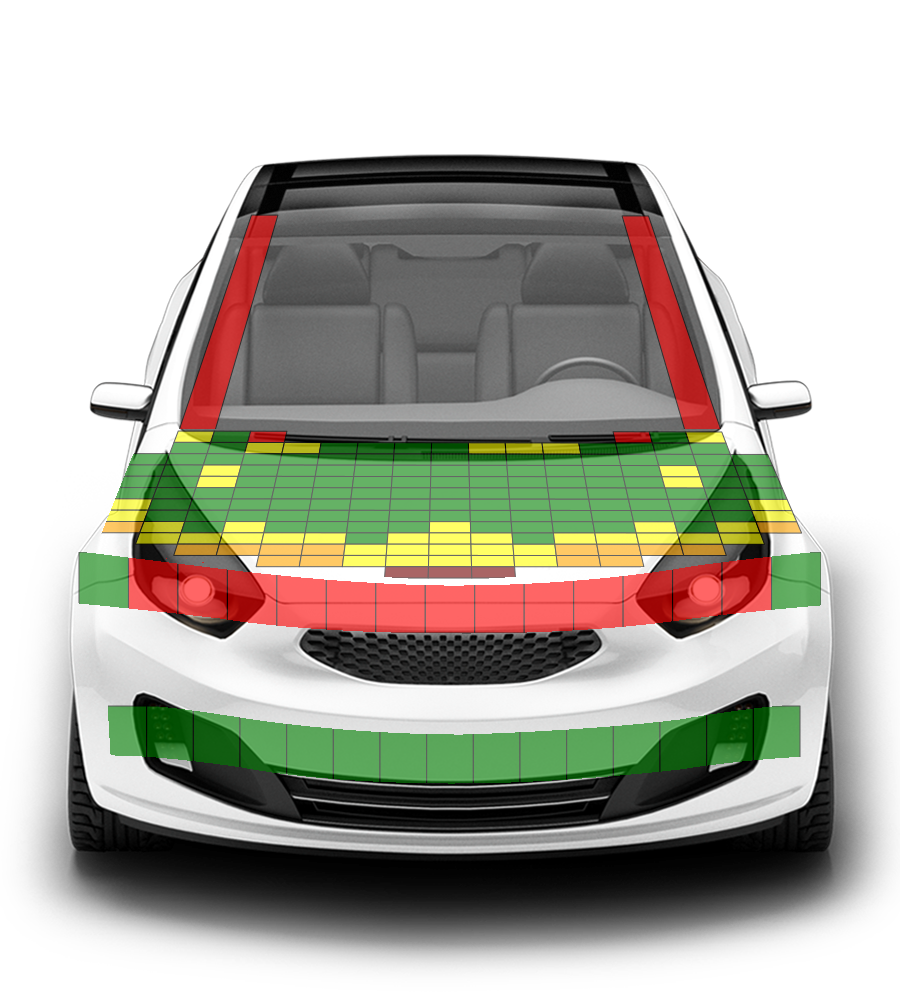

The i4 has an ‘active’ bonnet. Sensors in the bumper detect when a pedestrian has been hit and actuators lift the bonnet surface to provide greater clearance to the hard structures in the engine compartment. BMW showed that the system operated robustly for different pedestrian statures and over a wide range of speeds. Accordingly, the bonnet was tested in the raised, ‘deployed’ position and the protection provided was almost completely good or adequate. The bumper provided good protection to pedestrians’ legs at all test locations but protection of the pelvis was largely poor. The autonomous emergency braking (AEB) system of the i4 can detect vulnerable road users, as well as other vehicles. The system performed adequately in tests of its response to pedestrians and to cyclists.
The AEB system performed adequately in tests of its response to other vehicles, with impacts avoided or mitigated in many test scenarios. A seatbelt reminder system is standard and the car is equipped with a system which monitors steering inputs and issues a warning when a pattern characteristic of drowsy or impaired driving is detected. A combined camera/navigation system identified the local speed limit and provides the information to the driver, allowing the speed limiter to be set accordingly. If the car is drifting out of lane, a lane keep assist system gently corrects the vehicle’s path. The system also intervenes in some more critical situations, to avoid road departure for example.
The passenger compartment of the i4 remained stable in the frontal offset test. Dummy numbers demonstrated good protection for the knees and femurs of both the driver and passenger. BMW demonstrated that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the i4 would be a moderately benign impact partner in a frontal collision. In the full width rigid-barrier impact, protection of all critical body areas was good or adequate, for both the driver and rear seat passenger. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and maximum points were scored. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The i4 does not have a counter-measure to mitigate against occupant to occupant injuries in such impacts. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats also indicated good whiplash protection. The i4 has an advanced eCall system which alerts the emergency services in the event of a crash but no system to apply the brakes after an impact to avoid secondary collisions.
In both the frontal offset and the side impact barrier tests, protection of all critical body areas was good for all critical body areas, for both the 6 and 10 year dummy, and maximum points were scored for this part of the assessment. The front passenger airbag can be disabled to allow a reward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. All of the child restraint types for which the car is designed could be properly installed and accommodated.
The i4 has an ‘active’ bonnet. Sensors in the bumper detect when a pedestrian has been hit and actuators lift the bonnet surface to provide greater clearance to the hard structures in the engine compartment. BMW showed that the system operated robustly for different pedestrian statures and over a wide range of speeds. Accordingly, the bonnet was tested in the raised, ‘deployed’ position and the protection provided was almost completely good or adequate. The bumper provided good protection to pedestrians’ legs at all test locations but protection of the pelvis was largely poor. The autonomous emergency braking (AEB) system of the i4 can detect vulnerable road users, as well as other vehicles. The system performed adequately in tests of its response to pedestrians and to cyclists.
The AEB system performed adequately in tests of its response to other vehicles, with impacts avoided or mitigated in many test scenarios. A seatbelt reminder system is standard and the car is equipped with a system which monitors steering inputs and issues a warning when a pattern characteristic of drowsy or impaired driving is detected. A combined camera/navigation system identified the local speed limit and provides the information to the driver, allowing the speed limiter to be set accordingly. If the car is drifting out of lane, a lane keep assist system gently corrects the vehicle’s path. The system also intervenes in some more critical situations, to avoid road departure for example.
The passenger compartment of the i4 remained stable in the frontal offset test. Dummy numbers demonstrated good protection for the knees and femurs of both the driver and passenger. BMW demonstrated that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the i4 would be a moderately benign impact partner in a frontal collision. In the full width rigid-barrier impact, protection of all critical body areas was good or adequate, for both the driver and rear seat passenger. In both the side barrier test and the more severe side pole impact, protection of all critical body areas was good and maximum points were scored. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The i4 does not have a counter-measure to mitigate against occupant to occupant injuries in such impacts. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats also indicated good whiplash protection. The i4 has an advanced eCall system which alerts the emergency services in the event of a crash but no system to apply the brakes after an impact to avoid secondary collisions.
In both the frontal offset and the side impact barrier tests, protection of all critical body areas was good for all critical body areas, for both the 6 and 10 year dummy, and maximum points were scored for this part of the assessment. The front passenger airbag can be disabled to allow a reward-facing child restraint to be used in that seating position. Clear information is provided to the driver regarding the status of the airbag and the system was rewarded. All of the child restraint types for which the car is designed could be properly installed and accommodated.
The i4 has an ‘active’ bonnet. Sensors in the bumper detect when a pedestrian has been hit and actuators lift the bonnet surface to provide greater clearance to the hard structures in the engine compartment. BMW showed that the system operated robustly for different pedestrian statures and over a wide range of speeds. Accordingly, the bonnet was tested in the raised, ‘deployed’ position and the protection provided was almost completely good or adequate. The bumper provided good protection to pedestrians’ legs at all test locations but protection of the pelvis was largely poor. The autonomous emergency braking (AEB) system of the i4 can detect vulnerable road users, as well as other vehicles. The system performed adequately in tests of its response to pedestrians and to cyclists.
The AEB system performed adequately in tests of its response to other vehicles, with impacts avoided or mitigated in many test scenarios. A seatbelt reminder system is standard and the car is equipped with a system which monitors steering inputs and issues a warning when a pattern characteristic of drowsy or impaired driving is detected. A combined camera/navigation system identified the local speed limit and provides the information to the driver, allowing the speed limiter to be set accordingly. If the car is drifting out of lane, a lane keep assist system gently corrects the vehicle’s path. The system also intervenes in some more critical situations, to avoid road departure for example.

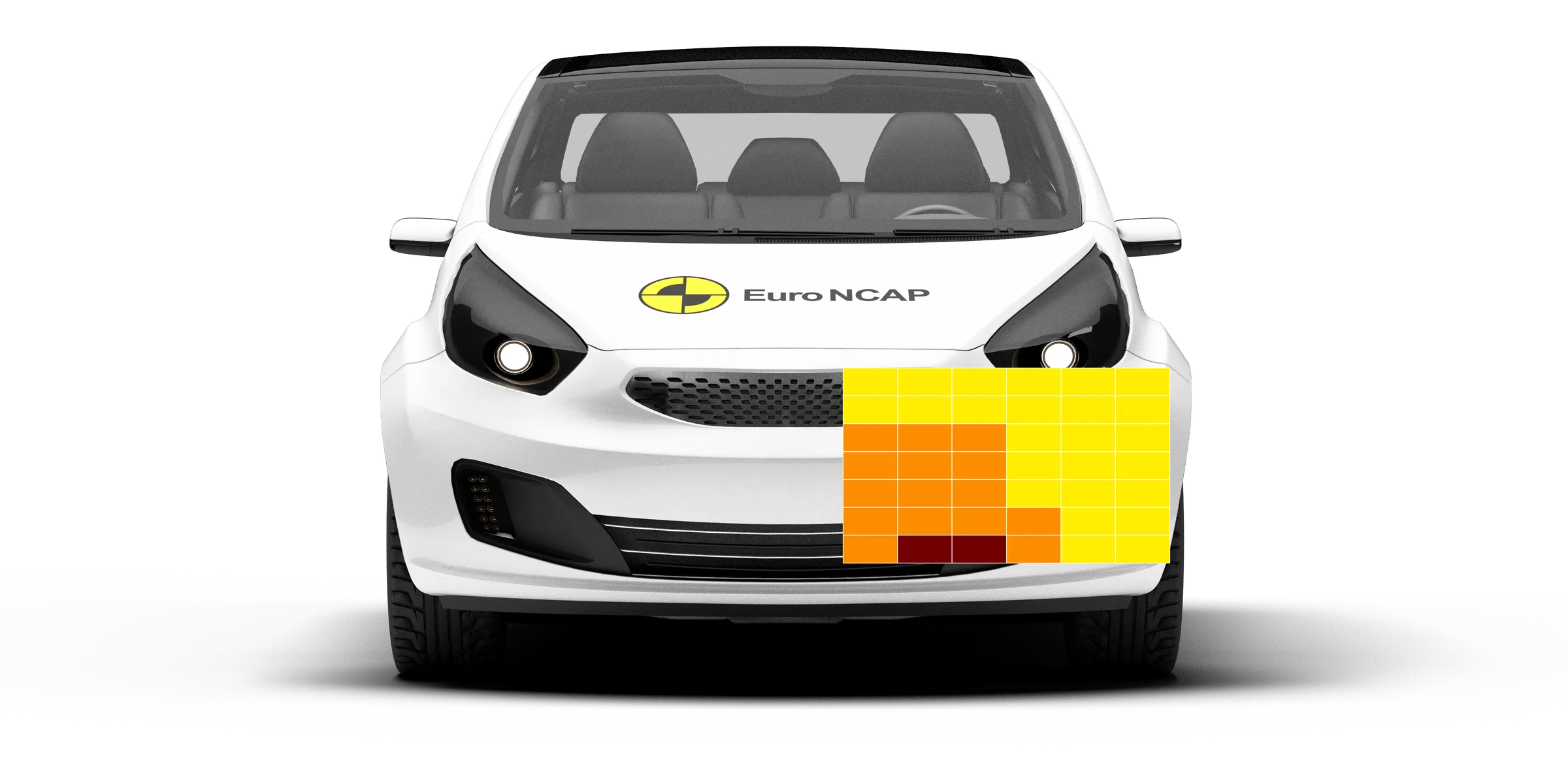

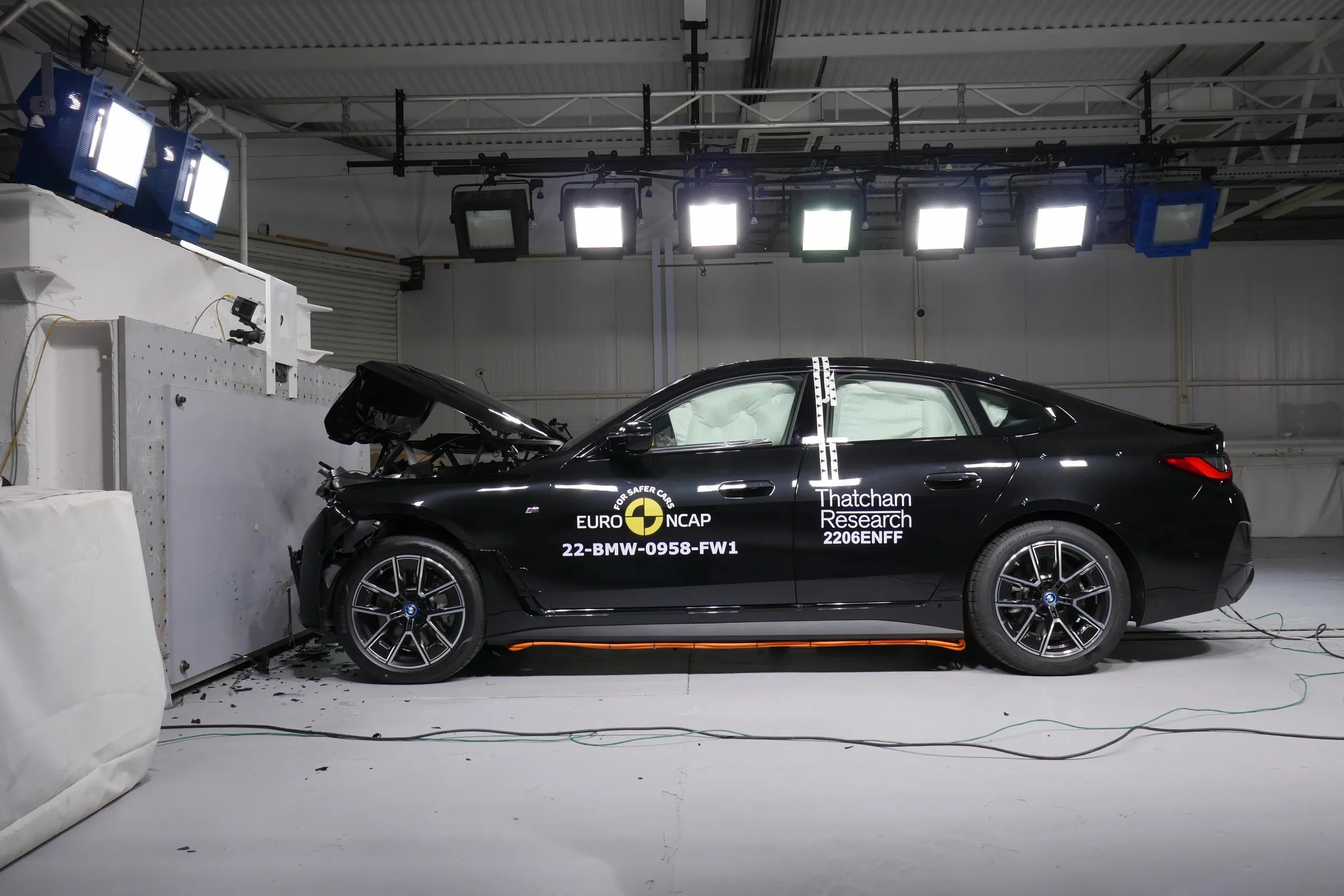

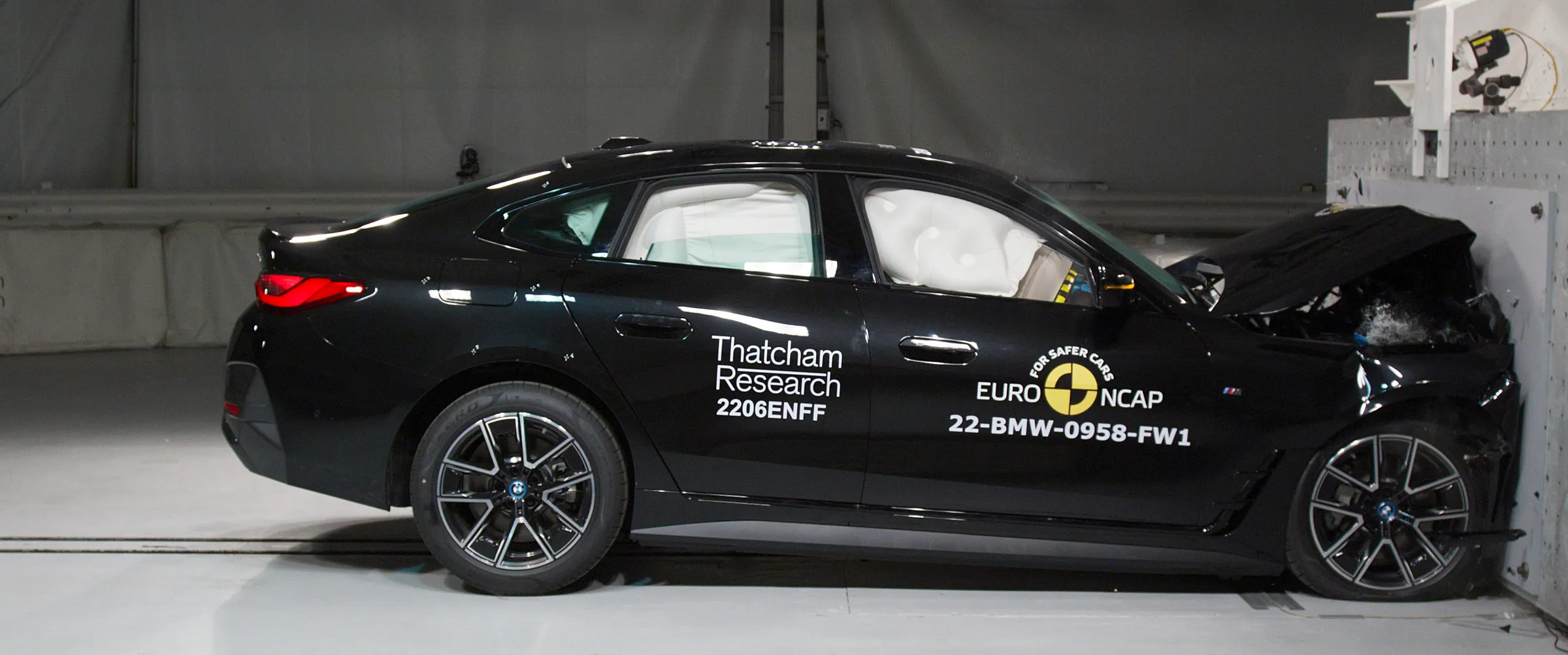

| Mobile Progressive Deformable Barrier | Full Width Rigid Barrier | |
|---|---|---|
  |  | |

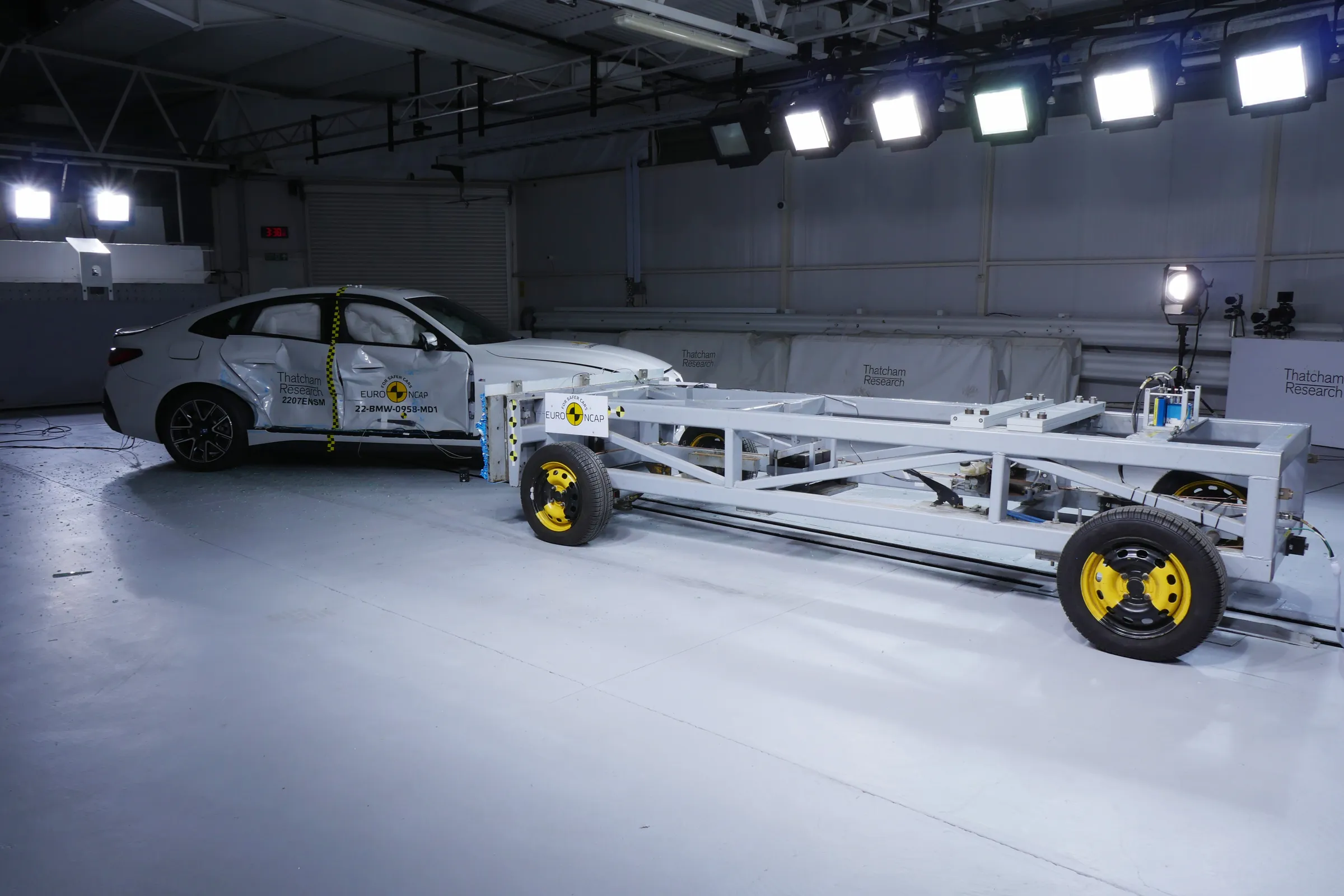

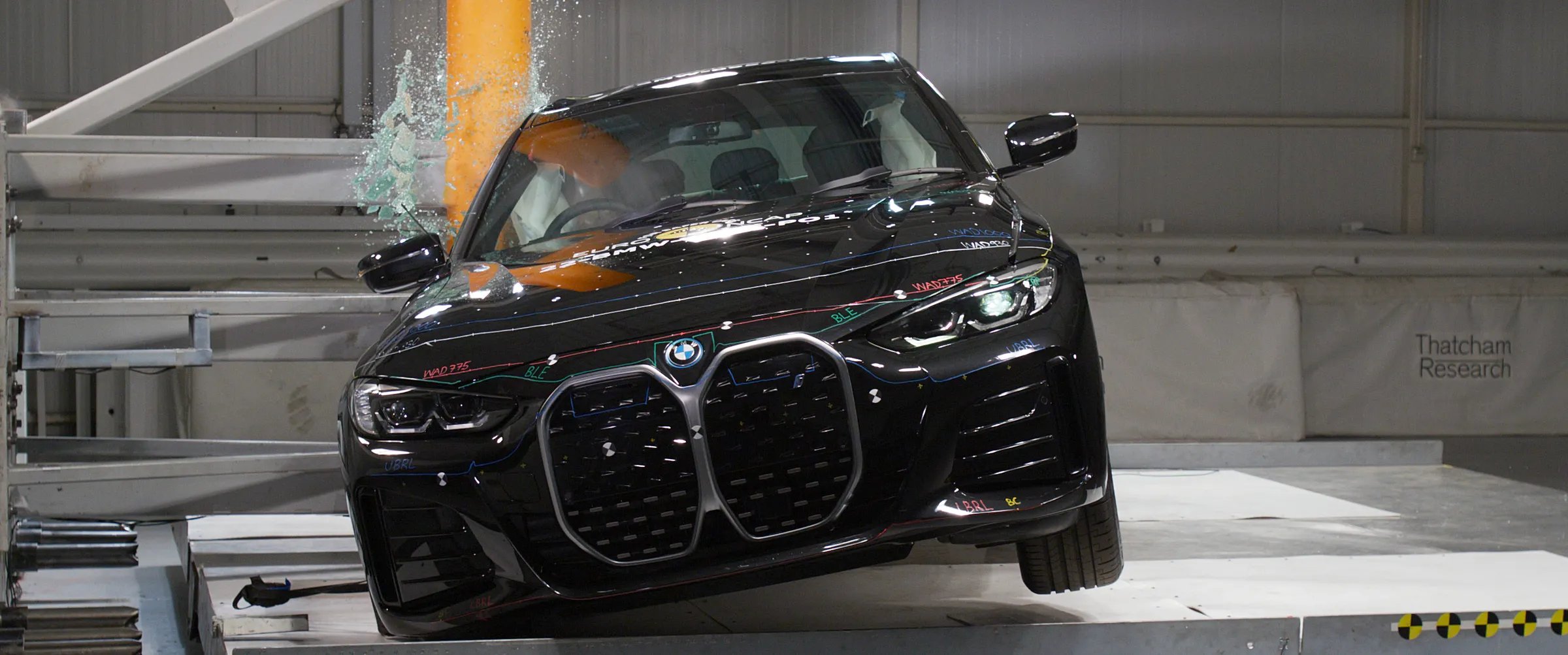

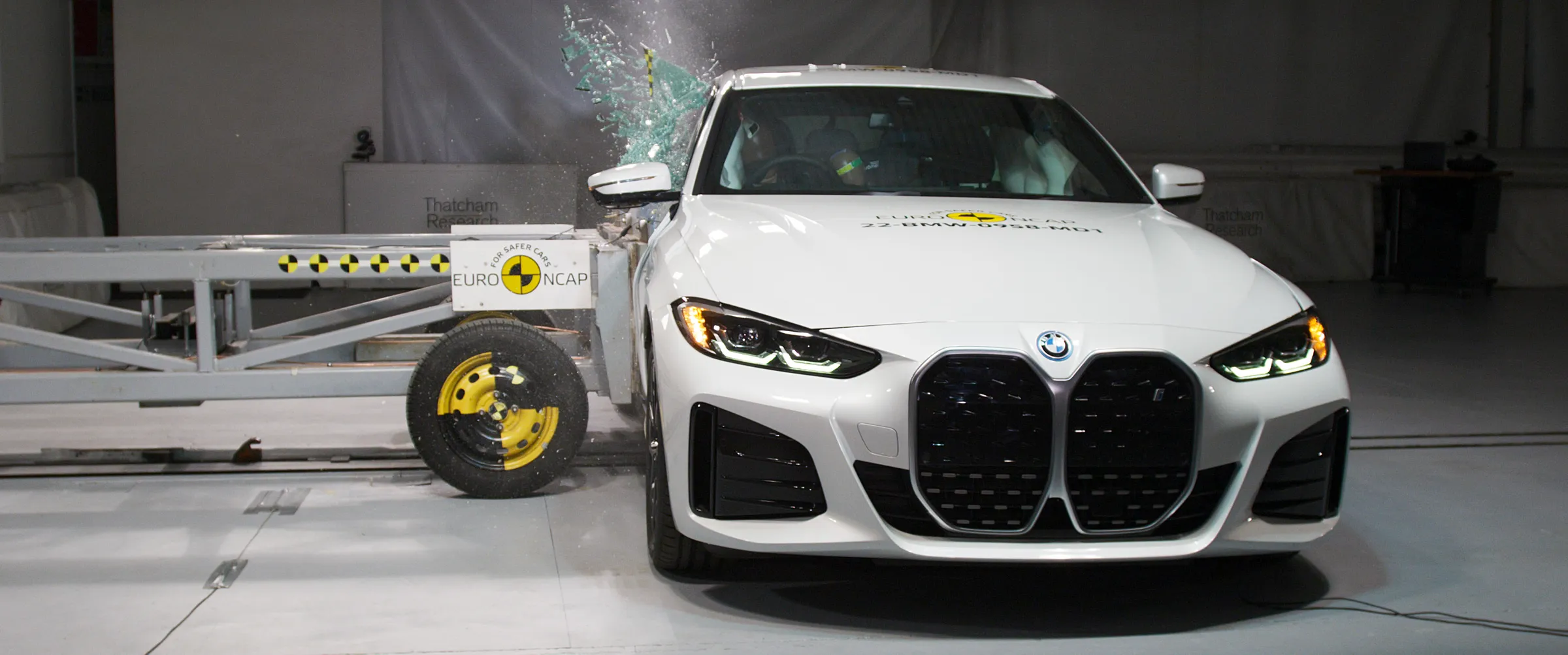

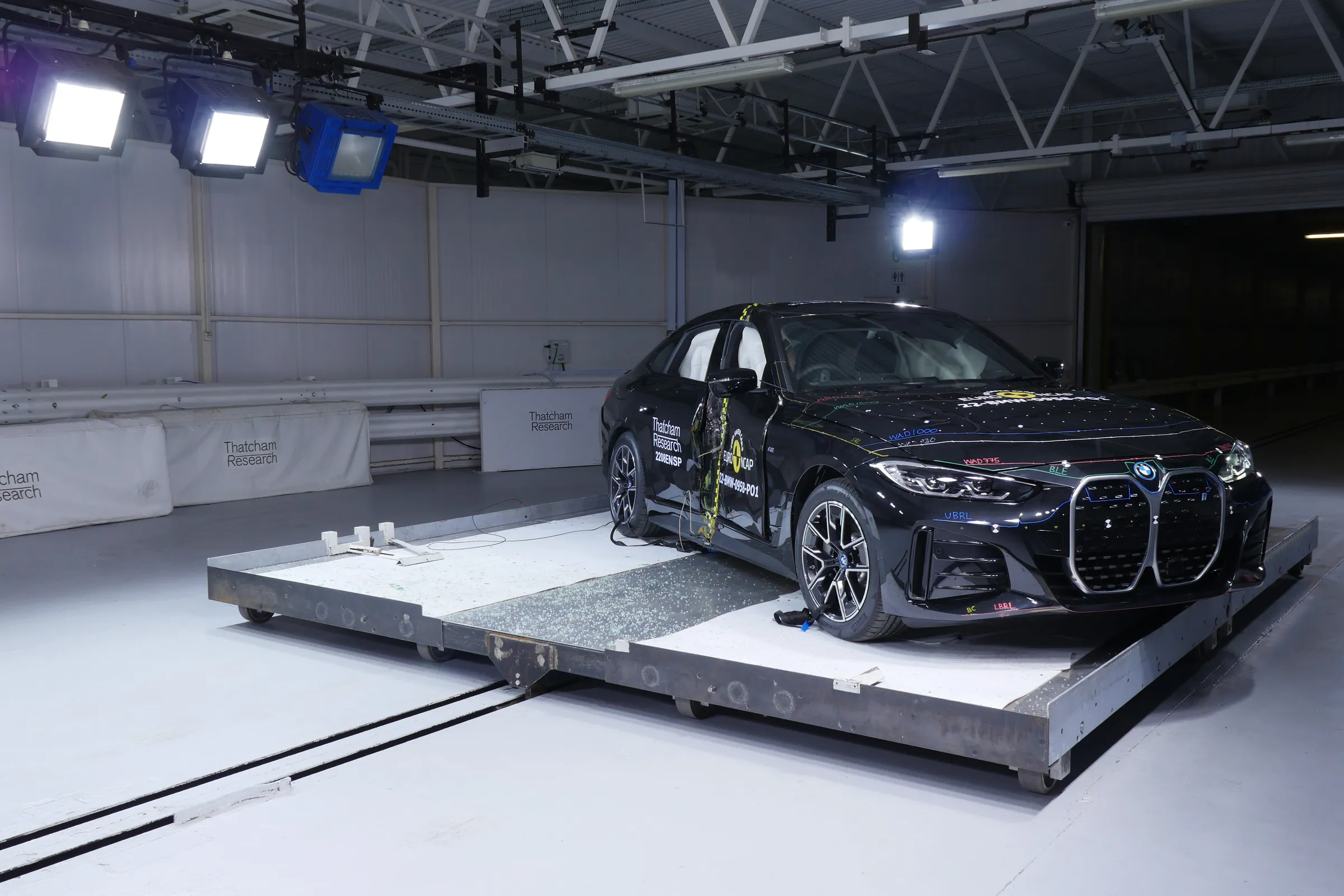

| Side Mobile Barrier | Side Pole |
|---|---|
 |  |

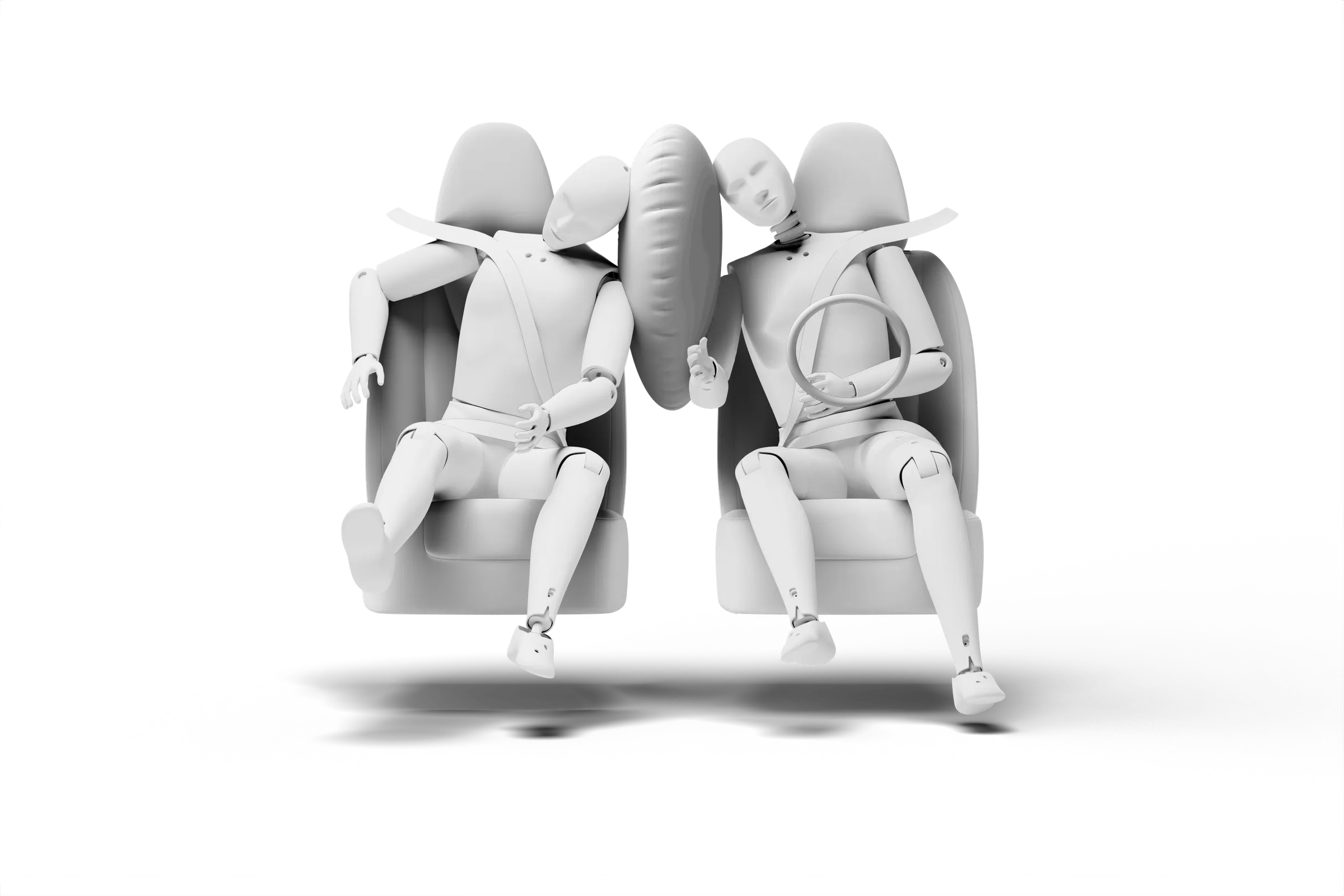

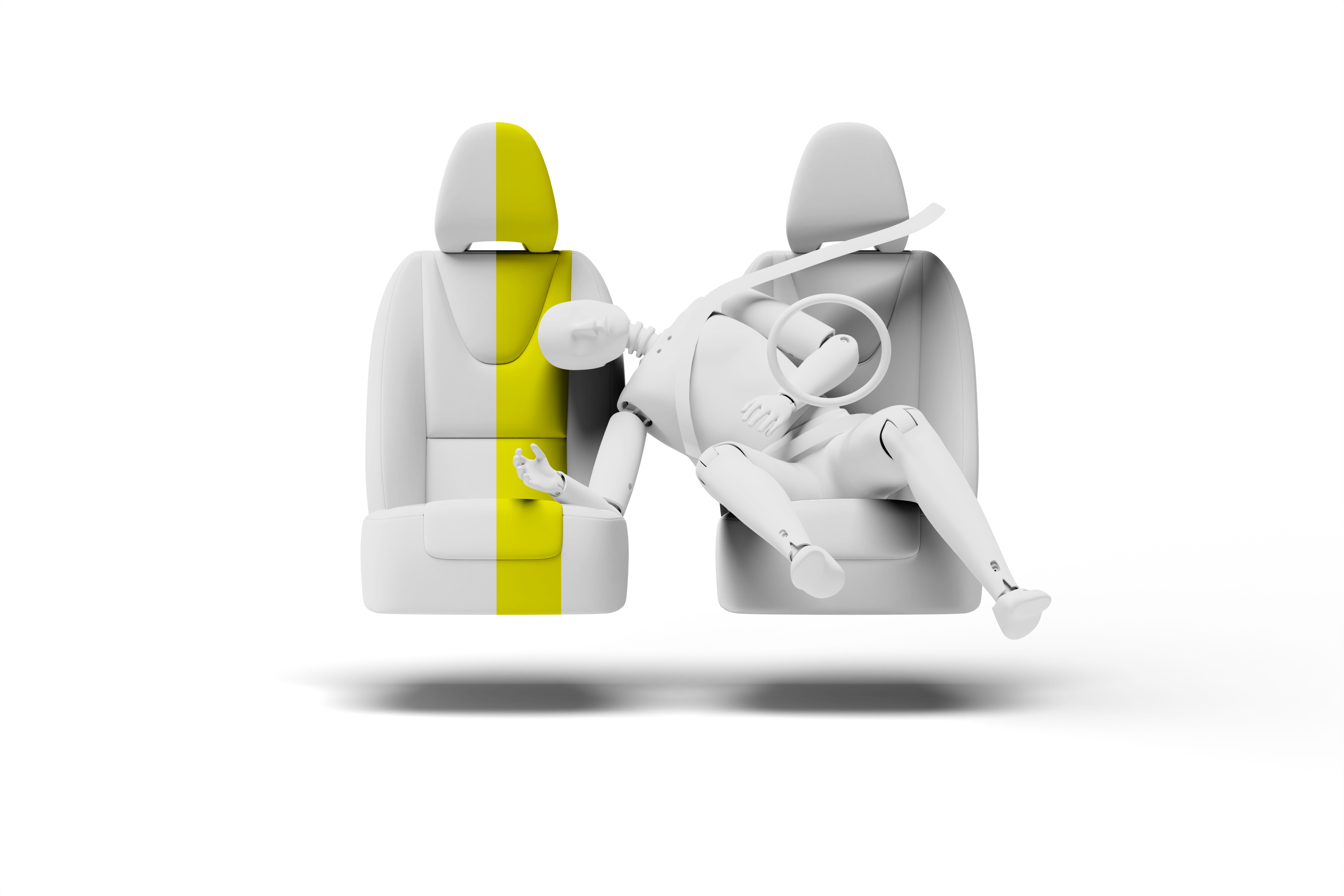

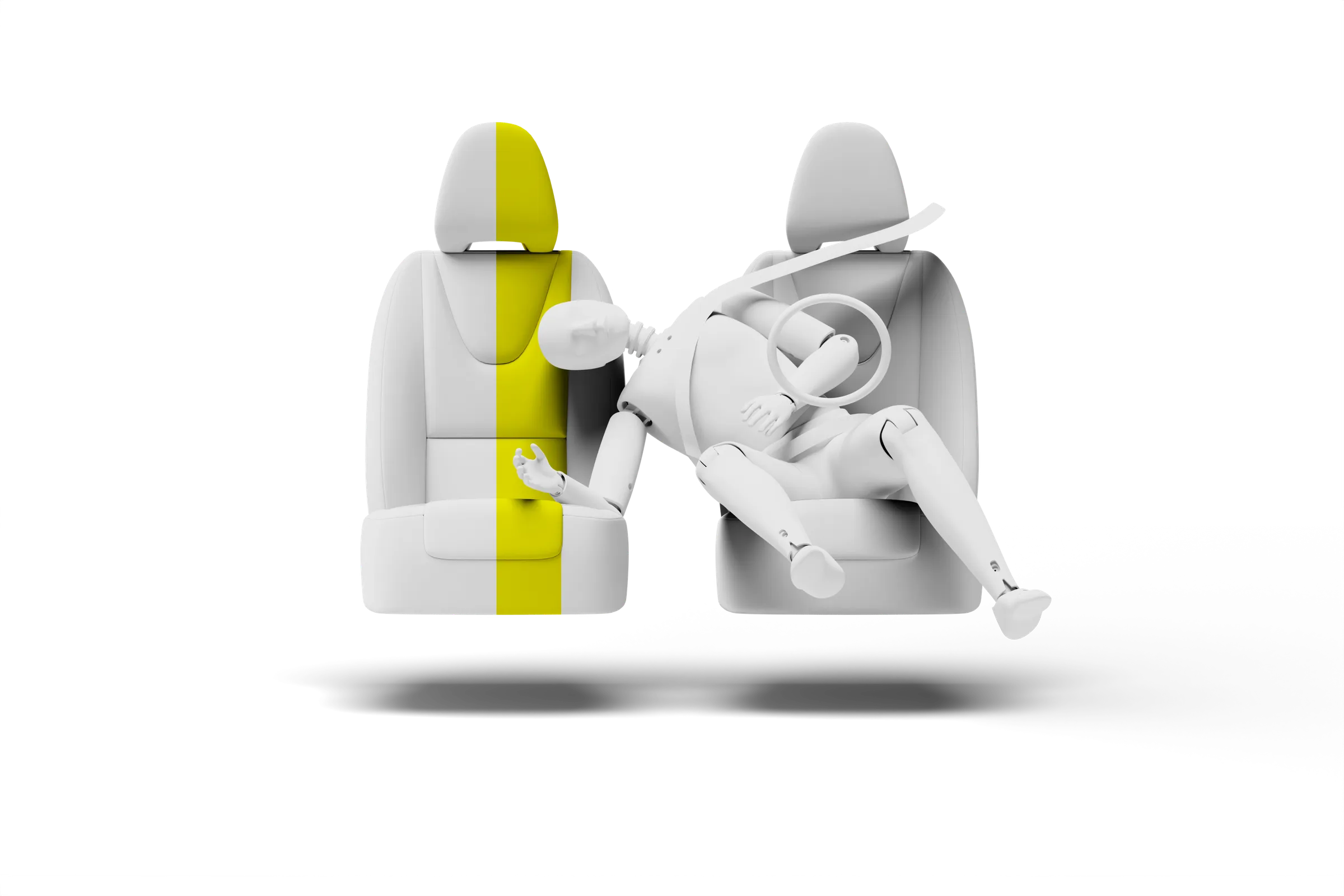

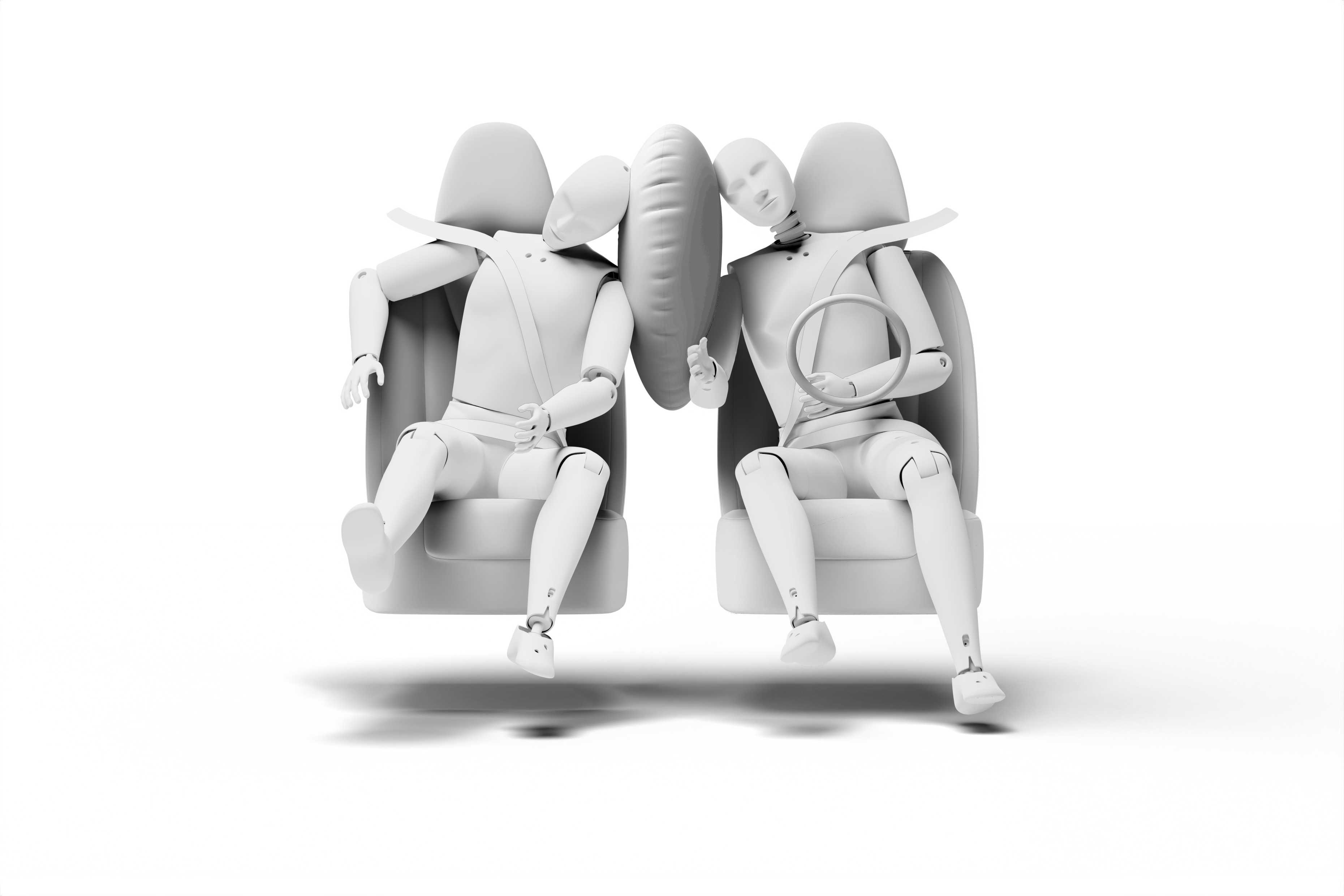

| Far-Side Excursion | Occupant Interaction |
 |  |
| Rear Seat | Front Seat |
|---|---|
 |  |
Frontal Impact - 16 Pts | Lateral Impact - 8 Pts |
|---|---|
 Restraint for 6 year old child: Britax Römer Kidfix SL Restraint for 10 year old child: Osann Up booster cushion |  Restraint for 6 year old child: Britax Römer Kidfix SL Restraint for 10 year old child: Osann Up booster cushion |
Equipment | Front Passenger | Row 2 Outboard | Row 2 Center | 3rd row outboard |
Isofix |  |  | |  |
i-Size | | | | |
Integrated CRS | | | | |
| i-Size | Isofix |
|---|---|
 |  |
| Seatbelt Attached | Legend |
 |      |
|
System Name | Pedestrian Warning With City Braking Function | |
Type | Auto-Brake with Forward Collision Warning | |
Operational From | 5 km/h | |
Scenario | Day time | Night time |
Car reversing into adult or child | | |
Adult crossing a road into which a car is turning | | |
Adult crossing the road | | |
Child running from behind parked vehicles | | |
Adult along the roadside | | |
Scenario | Day time |
Approaching cyclist crossing from behind parked vehicles | |
Approaching a crossing cyclist | |
Approaching a cyclist along the roadside | |
System Name | Speed Limit Assist |
Speed Limit Info Function | Camera & Map, subsigns supported |
Speed Control Function | System advised (accurate to 5km/h) |
Warning | Driver Seat | Front Passenger(s) | Rear Passenger(s) |
Visual | | | |
Audible | | | |
Occupant Detection | | | - |
System Name | Attentiveness Assistant |
Type | Steering input |
Operational From | 70km/h |
System Name | Lane Departure Warning |
System Type | LKA and ELK |
Min Speed (Operational From) | 70km/h |
Performance | |
Emergency Lane Keeping | |
Lane Keep Assist | |
Human Machine Interface | |
System Name | Collision Warning with Braking Function |
Type | Autonomous emergency braking and forward collision warning |
Operational From | 5 km/h |
Sensor Used | Camera and radar |
Scenario | Autobrake function only | Driver reacts to warning |
Turning across the path of an oncoming car | | |
Approaching a stationary car | | |
Approaching a slower moving car | | |
Approaching a braking car | | |
Driver | Passenger | Rear | |
Front Airbag | | |  |
Belt Pretensioner | | | |
Belt Loadlimiter | | | |
Knee Airbag | | | |
Driver | Passenger | Rear | |
Front Airbag | | | |
Belt Pretensioner | | | |
Belt Loadlimiter | | | |
Knee Airbag | | | |
Driver | Passenger | Rear | |
Side Head Airbag | | | |
Side Chest Airbag | | | |
Side Pelvis Airbag | | | |
Centre Airbag | | | |
Passenger | Rear | |
Isofix | | |
i-Size | | |
Integrated Child Seat | | |
Airbag Cut-Off Switch | | |
Child Presence Detection | | |
Driver | Passenger | Rear | |
Seatbelt Reminder | | | |
Active bonnet | |
AEB vulnerable road users | |
AEB pedestrian - reverse | |
Cyclist dooring prevention | |
AEB motorcyclist | |
AEB car-to-car | |
Speed assistance | |
Lane assist system | |
Fatigue detection | |
Distraction detection | |
Note: other equipment may be available on the vehicle but was not considered in the test year
Body Type | Variant Description | Drivetrain | Rating Applies LHD | Rating Applies RHD |
|---|---|---|---|---|
4 door Sedan | Battery Electric - i4 M50 | 4x4 | | |
4 door Sedan | Battery Electric - i4 eDrive40* | 4x2 | | |
Body Type | Variant Description | Drivetrain | Rating Applies LHD | Rating Applies RHD |
|---|---|---|---|---|
4 door Sedan | Battery Electric - i4 M50 | 4x4 | | |
4 door Sedan | Battery Electric - i4 eDrive40* | 4x2 | | |
Date | Event | Outcome | |
|---|---|---|---|
2022-07-07 | Rating Published | |
