Mer information finns i avsnittet Allmänna kommentarer i bedömningen
Mer information finns på fliken Betygets giltighet i bedömningen
-
Läs mer
![]()
95% -
Läs mer
![]()
83% -
Läs mer
![]()
78% -
Läs mer
![]()
100%
- Ok
- Tillfredsställande
- Gränsfall
- Svag
- Dålig
Passagerare
Förare
Framsäte
Bil
Stolpe
- Ok
- Tillfredsställande
- Gränsfall
- Svag
- Dålig
Passagerare
yttersäten
Mitten
![]()
Monteras på fordonet som standard![]()
Inte monterad på provfordonet men finns som tillval![]()
Ej tillgänglig
Inte monterad på provfordonet men finns som tillvalBased on dummy readings in the dynamic tests, the 5 series was awarded maximum points for protection of the 3 year dummy in the frontal and side impacts. Forward movement of the dummy's head was not excessive in the frontal impact and both the 3 year and 18 month dummies were properly contained by their respective child restraints in the side impact. The passenger airbag can be disabled to allow a rearward facing child restraint to be used in that seating position. However, information provided to the driver regarding the status of the airbag is not sufficiently clear. A permanently attached label warns clearly of the dangers of using a rearward facing restraint in the passenger seat without first disabling the airbag.
- Ok
- Tillfredsställande
- Gränsfall
- Svag
- Dålig
Slag mot huvud 22,0 P
Slag mot bäcken 0,0 P
Slag mot ben 6,0 P
The 5 series is fitted with an 'active bonnet'. When a pedestrian is struck, actuators lift all four corners of the bonnet away from hard structures underneath. This creates more space to absorb the energy of a struck pedestrian, lowering injury values. The bonnet has scored maximum points in the areas likely to be struck by the head of a child and has scored very highly in those areas likely to be struck by an adult. The front edge of the bonnet did not score any points for the protection provided to pedestrians' legs but the bumper scored maximum points.
- Ok
- Tillfredsställande
- Gränsfall
- Svag
- Dålig
| Systemnamn | DSC | |
| Prestanda | ||
| Gäller för | All seats | ||
| Varning | Förarsäte | passagerare fram | passagerare bak |
| Visuell | |
|
|
| Akustisk | |
|
|
|
|||
UnderkändElectronic Stability Control is standard equipment on the 5 series, together with a driver-set speed limitation device. A seatbelt reminder system is also standard equipment and covers all seating positions.
- Specifikationer
- Säkerhetsutrustning
- Videor
- Advanced-utmärkelser
- Betyg giltighet
Specifikationer
Testad modell BMW 530d, LHD
Karosstyp - 4 door saloon
Årsmodell 2010
Tjänstevikt 1790kg
Bedömning avser VIN fr.o.m. - applies to all 5 series of the specification tested
Klass Executive
Säkerhetsutrustning
Obs: Det kan finnas annan utrustning tillgänglig bilen men som inte har beaktats under teståret.
![]()
Monteras på fordonet som standard![]()
Monteras på fordonet som tillval![]()
Inte monterad på provfordonet men finns som tillval![]()
Ej tillgänglig![]()
Gäller ej
Monteras på fordonet som tillvalVideor
Advanced-utmärkelser
Betyg giltighet
Mer information finns i avsnittet Allmänna kommentarer i bedömningen
Dela

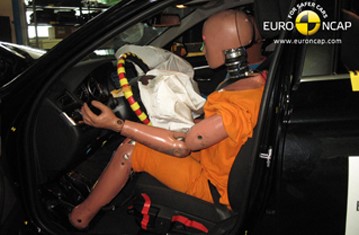

The passenger compartment remained stable in the frontal impact. Dummy readings indicated good protection of the knees and femurs of both the driver and front seat passenger. BMW were able to demonstrate that occupants of different sizes, and those sat in different positions, would be similarly well protected. Maximum points were scored in the side barrier test. In the more severe side pole impact, the head and pelvis were well protected, the chest and abdomen adequately so. Good protection was provided against whiplash injuries in the event of a rear impact.
